Service Program Mode
SM 5-9 D017/D018/D019/D020
Service
Tables

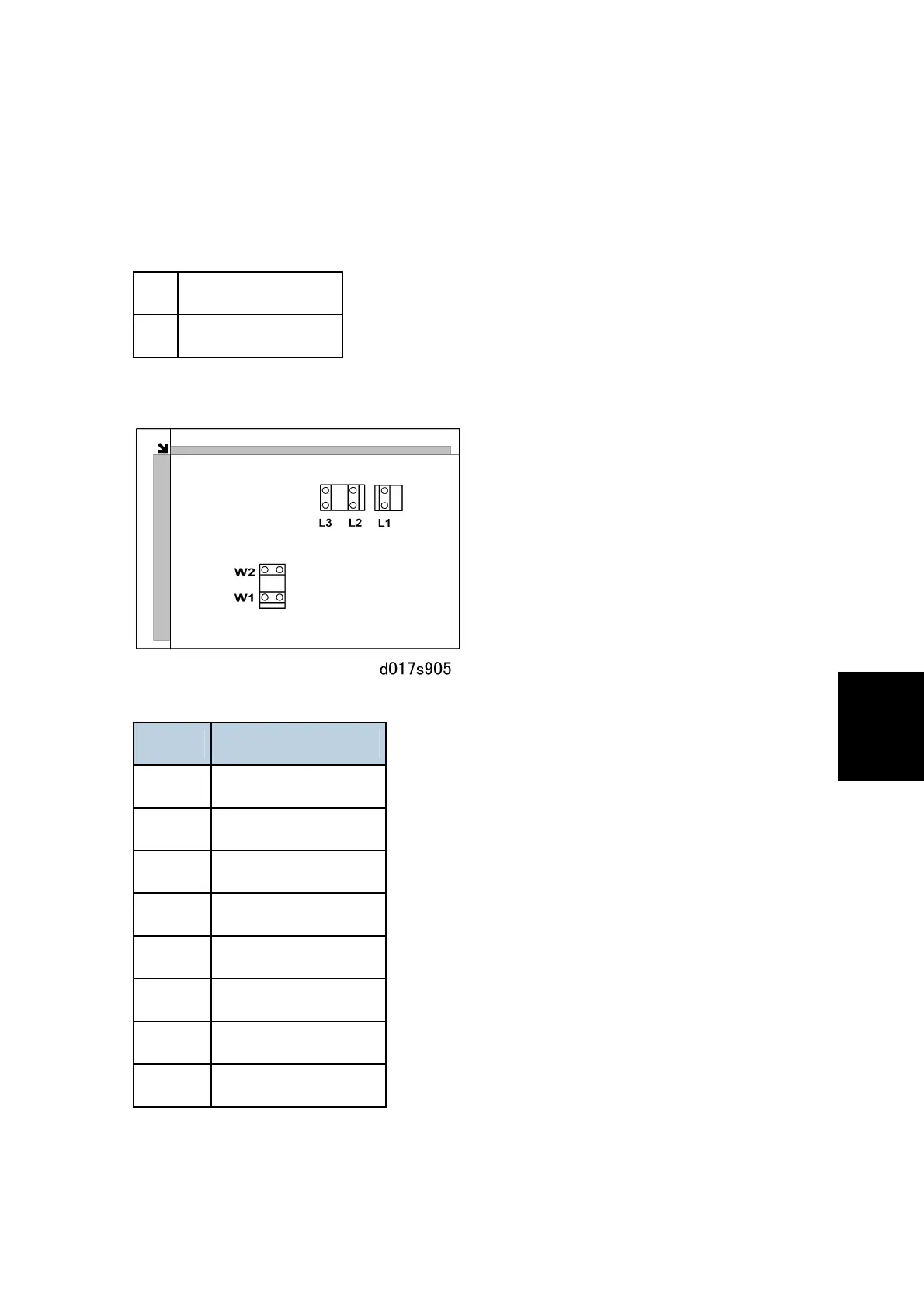

APS Output Display (SP4301)
When you open this SP, a small box will be displayed on the SP mode screen with a series
of 0’s and 1’s. The meaning of the display is as follows.
0 0 0 0 0 0 0 0
Bit 7 6 5 4 3 2 1 0
0 = Paper not detected, 1 = Paper detected
Bit Description
7 L2
6 L3
5 W1
4 W2
3 Not Used
2 L1
1 Not Used
0 Not Used
