Paper Feed
D017/D018/D019/D020 3-46 SM
3.8.9 UPPER/LOWER PAPER SIZE SENSORS
1. Pull out the paper tray 1 and/or 2.
2. Remove:
 Relay connector cover ( x1,  x1)
 Rear upper cover ( x4)
 Rear lower cover ( x4)
3. Remove:

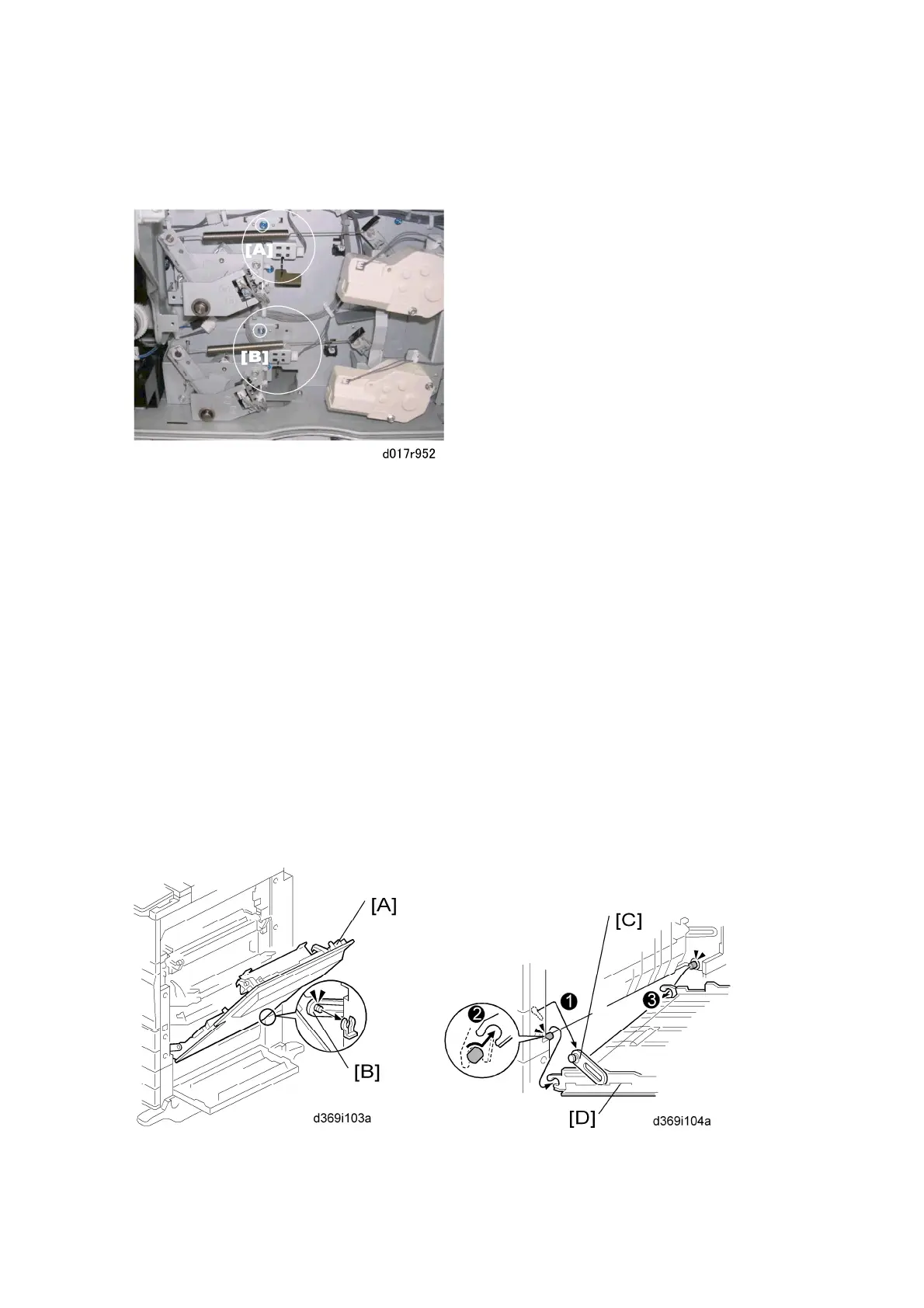

[A] Tray 1 paper size sensor bracket ( x 1)
 Tray paper size sensor ( x 1, Pawls x4)
-or-
[B] Tray 1 paper size sensor bracket ( x 1)
 Tray paper size sensor ( x 1, Pawls x4)
3.8.10 REGISTRATION SENSOR
1. Open the right cover of the optional paper tray unit or LCT.
1. Open the right cover [A].
