Paper Feed
SM 3-41 D017/D018/D019/D020
Replacement
and
Adjustment
3.8.2 FEED ROLLER: TRAY 2

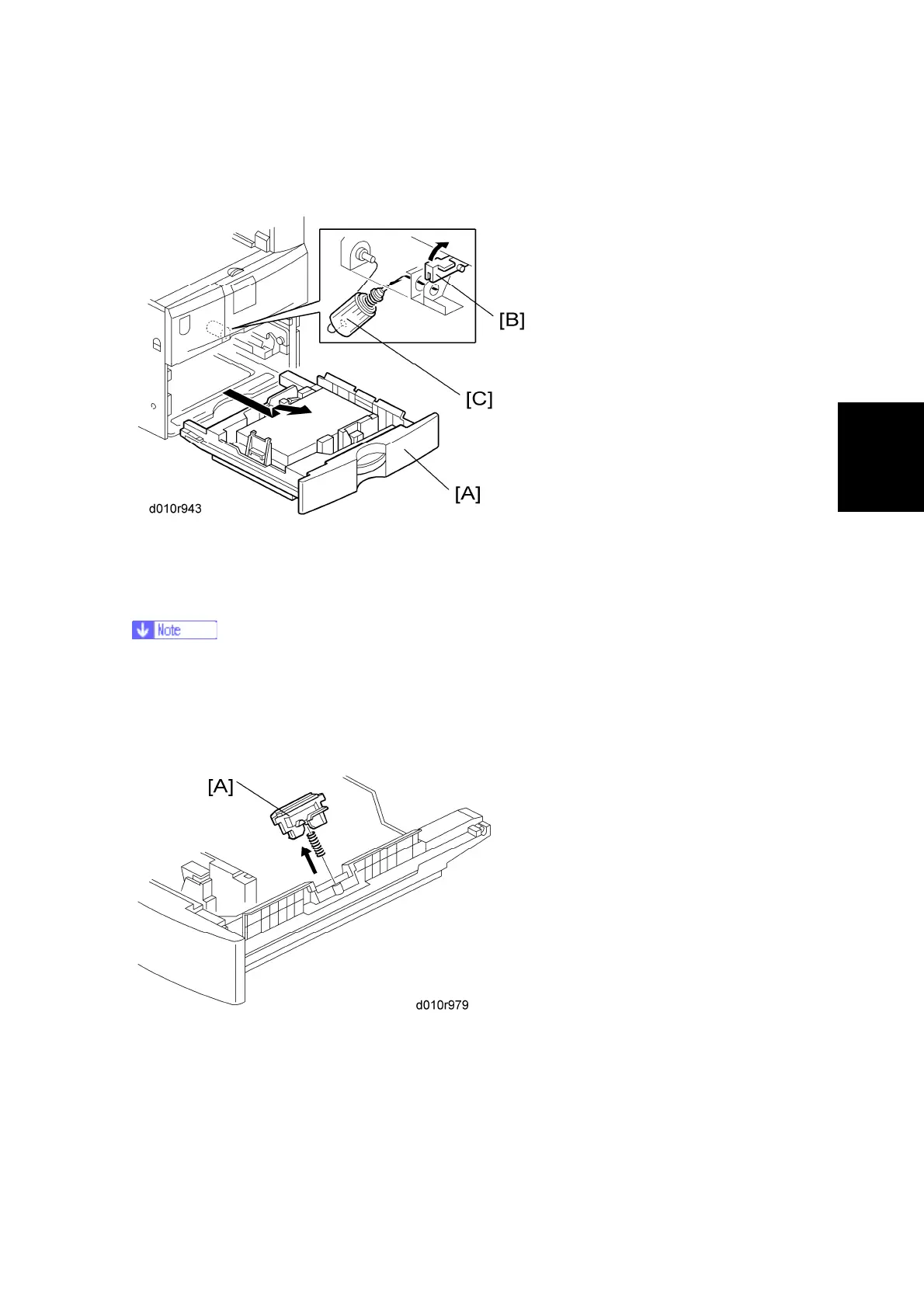

1. Pull out the paper tray 1 and 2 [A].
2. Pull up the stopper [B].
3. Paper feed roller [C]
 Do not touch the roller surface with bare hands.
 After reinstalling the feed roller, reset the lever [B].
3.8.3 FRICTION PAD
1. Pull out the paper tray.
2. Friction pad [A] (spring x 1)
