SM 3-55 D017/D018/D019/D020
Replacement
and
Adjustment

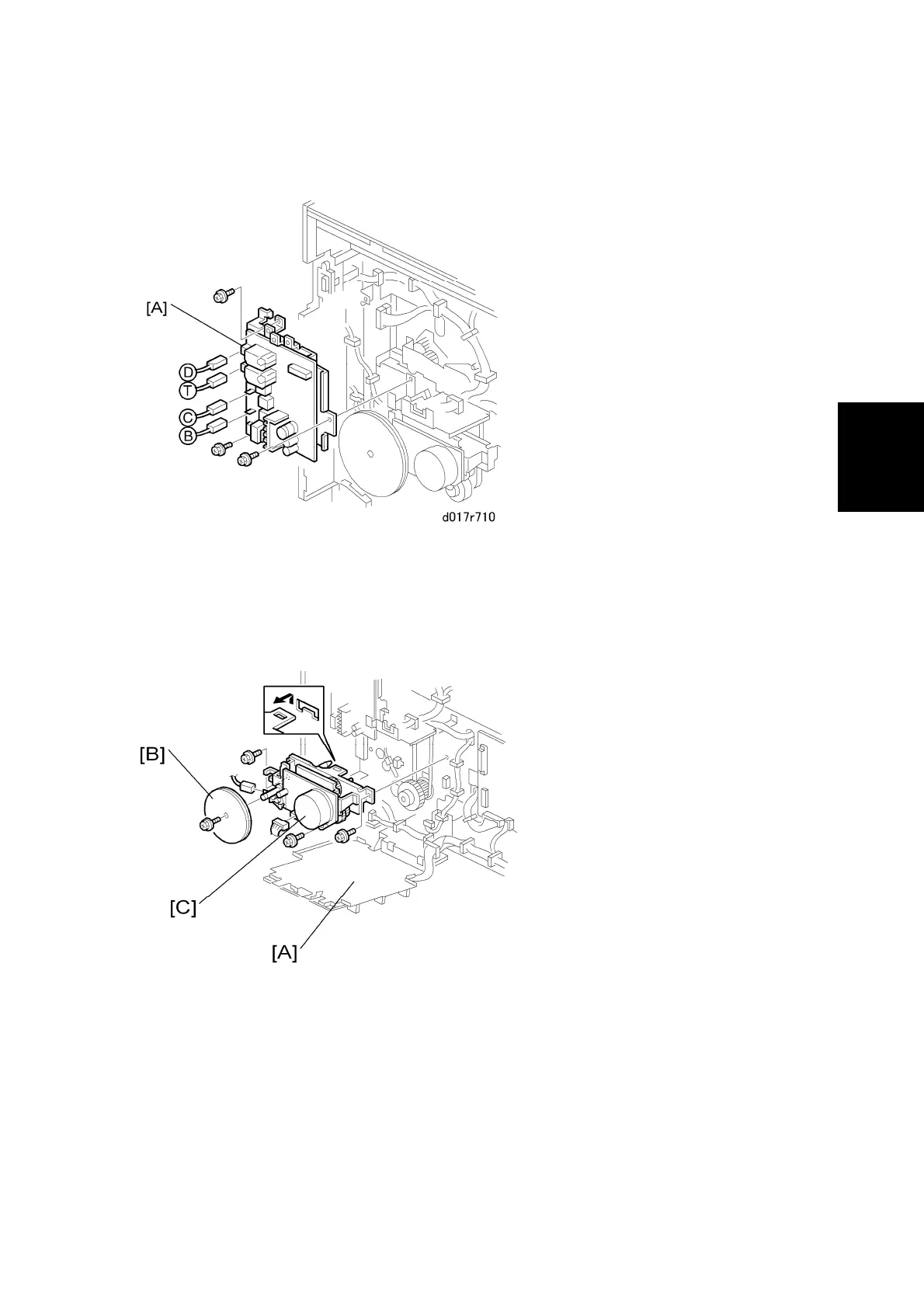

3.9.4 POWER PACK
1. Remove the rear cover.
2. Swing down the BCU board bracket. (See ‘Paper Feed Clutches’.)
3. Remove the power pack [A] ( x 4,  x3).
3.9.5 MAIN MOTOR
1. Remove the rear cover. (See ‘Paper Tray Lift Motors’.)
2. Swing down the BCU board bracket [A]. (See ‘Paper Feed Clutches’.)
3. Remove the flywheels [B] ( x1).
4. Replace the main motor [C] ( x2,  x3).
