Fusing/Exit
D017/D018/D019/D020 3-36 SM

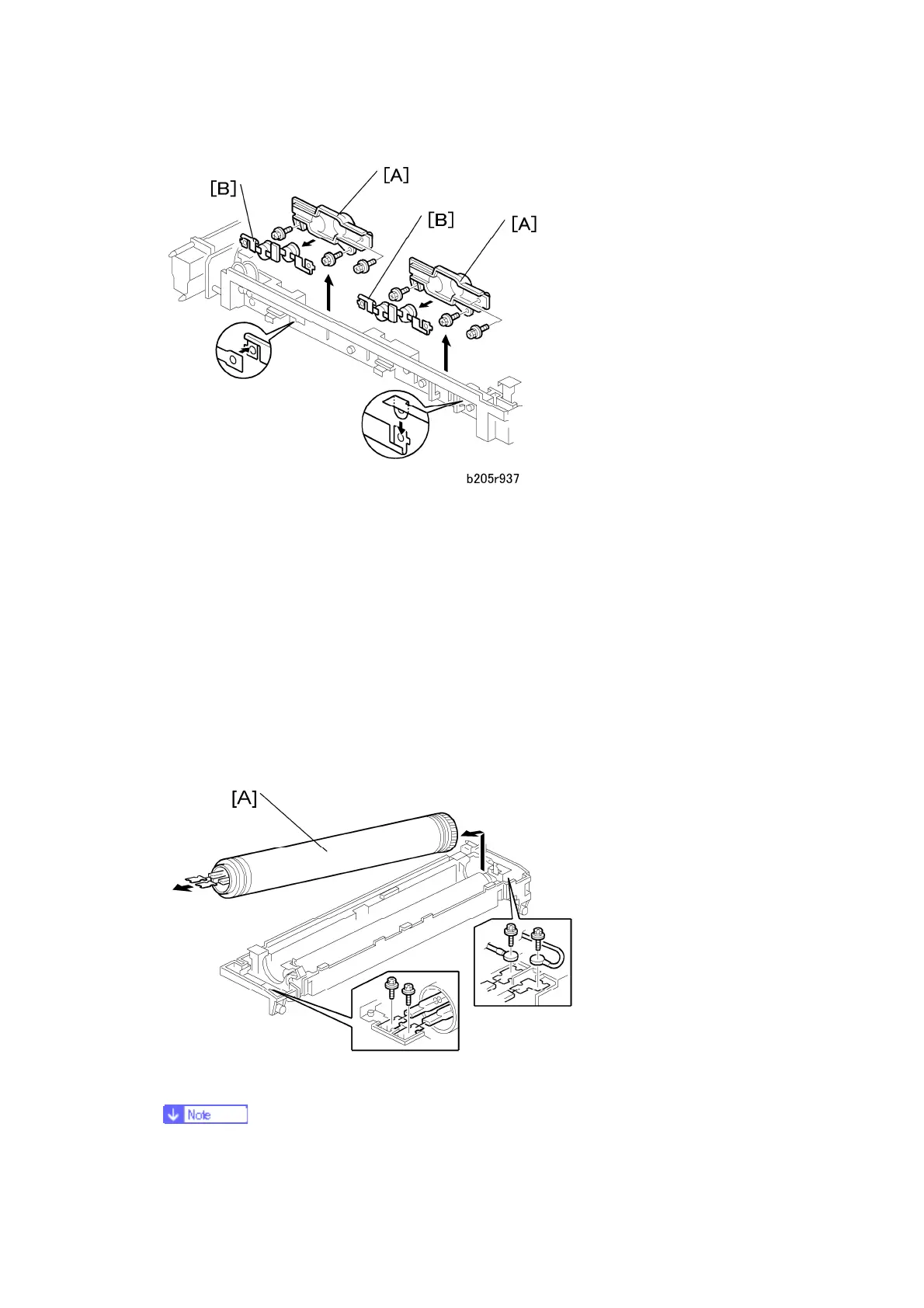

5. Remove:
[A] Thermostat holders x2 ( x3 each.).
[B] Thermostats x4
3.7.4 HOT ROLLER AND FUSING LAMPS
1. Remove the fusing unit. (See ‘Fusing Unit’.)
2. Remove these parts: (see ‘Thermostats’).
 Fusing upper cover.
 Pressure springs.
 Hot roller stripper bracket.
3. Remove the fusing lamps ( x4) and hot roller assembly [A].
 Do not touch the surface of the fusing lamp with bare hands.
