Scanner Unit
SM 3-7
D017/D018/D019/D020
Repla
cement
and
Adjustment
4.

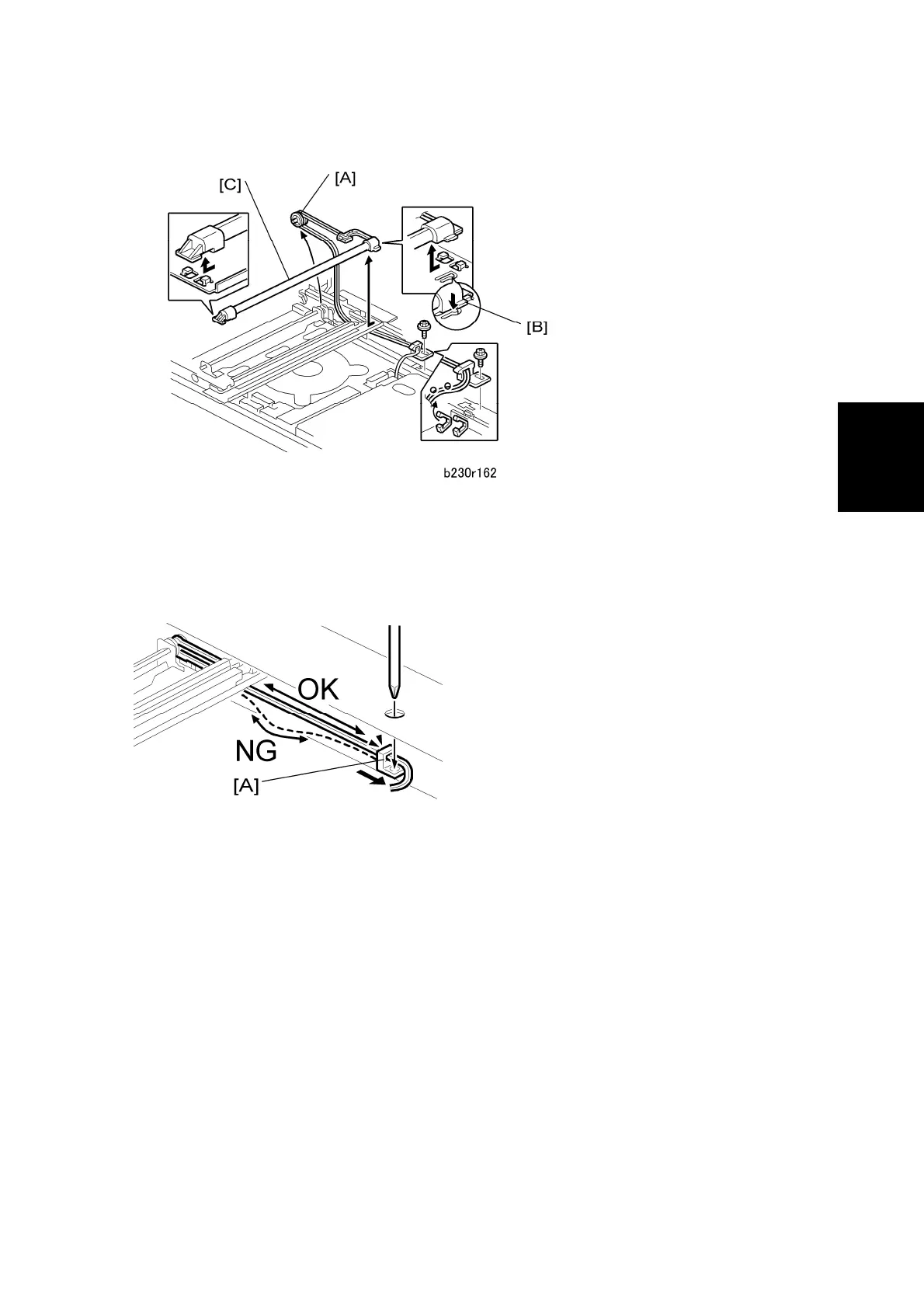

Remove the pulley [A].
5.
Hold down the snap [B]
6.
Remove the exposure lamp [C] (
=
x2,
x1,
x1)
Reassembling
1.
Run the cable so that there is no slack.
2.
Slide clamp [A] to adjust the cable slack.
138
140
