PCBs and Other Items
D017/D018/D019/D020 3-54 SM
21. Do SP5907 and input the brand and model name of the machine for Windows Plug &
Play capability.
If the HDD encryption unit has been installed, the HDD encryption unit and
encrypted data cannot be recovered. For details, refer to "Recovery from a
Device Problem" in the installation procedure of the HDD Encryption Unit.

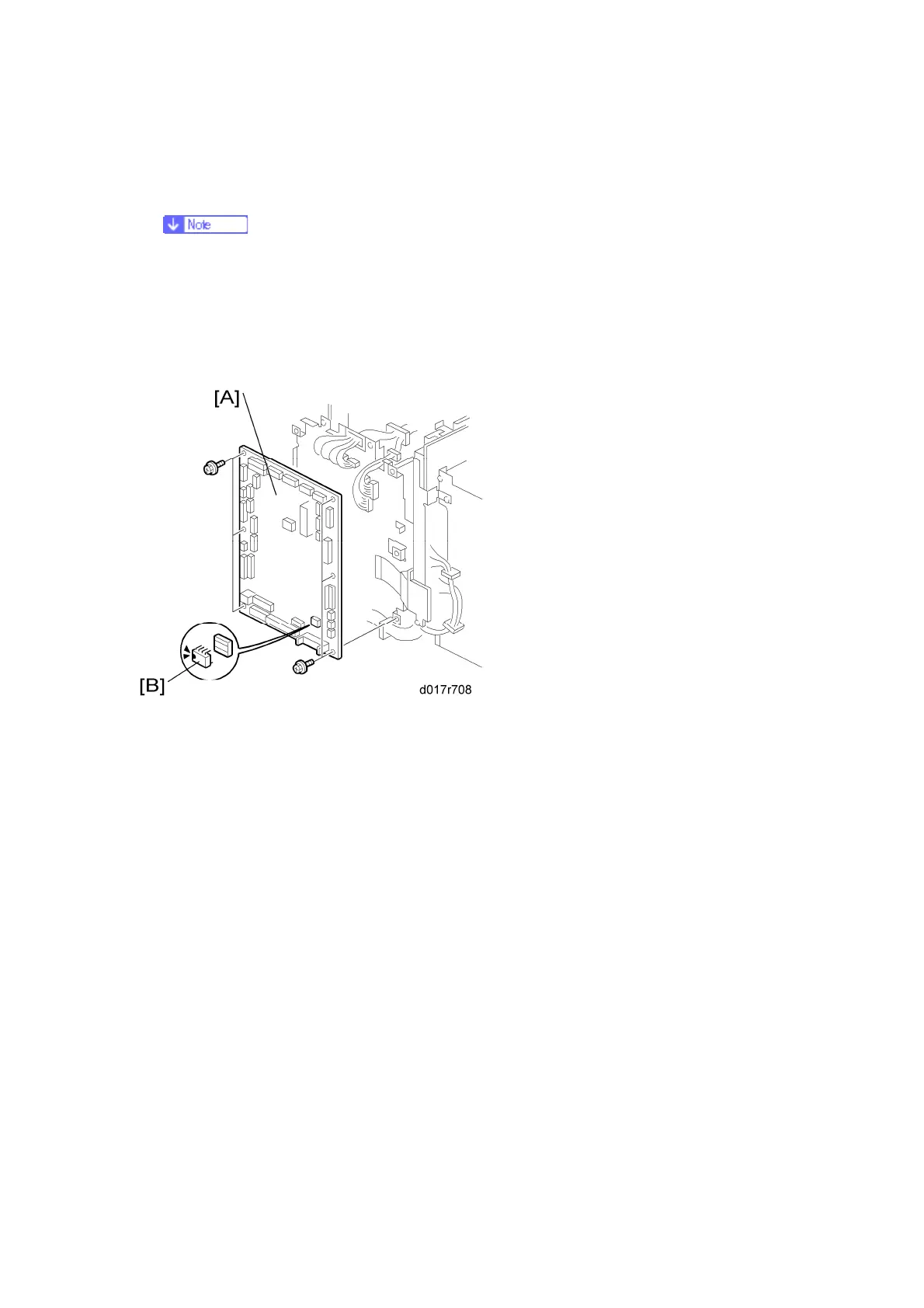

3.9.3 BCU BOARD
1. Remove the rear cover. (See ‘Paper Tray Lift Motors’.)
2. Remove the BCU board [A] ( x All, x6).
3. Remove the NVRAM [B] from the old board and install it on the new board.
4. Set the DIP switches on the new BCU board to the same settings as the old board.
To Next Page
