PCBs and Other Items
SM 3-57
D017/D018/D019/D020
Repla
cement
and
Adjustment

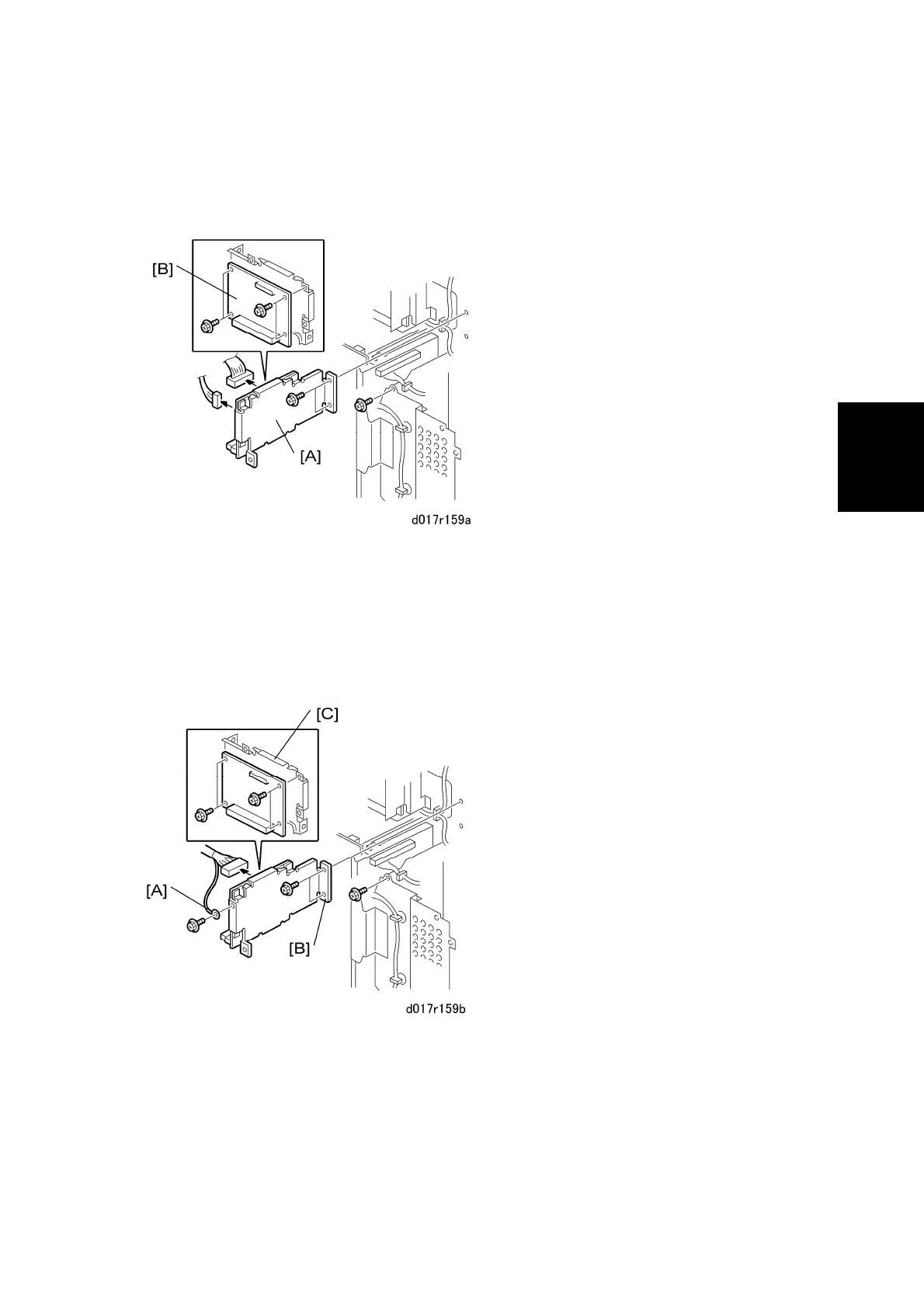

3.9.7 SIO
Monochrome Scanner Unit (D017/D019)
1. Remove:
Rear
cover
[A] SIO bracket (
x3,
x2)
[B] SIO board (
x4)
Color Scanner Unit (D018/D020)
1. Remove:
Rear
cover
[A] Ground wire, connector (
x1,
x1)
[B] SIO bracket (
x3)
[C] SIO board (
x4)
188
