Photoconductor Unit (PCU)
SM 3-23 D017/D018/D019/D020
Replacement
and
Adjustment

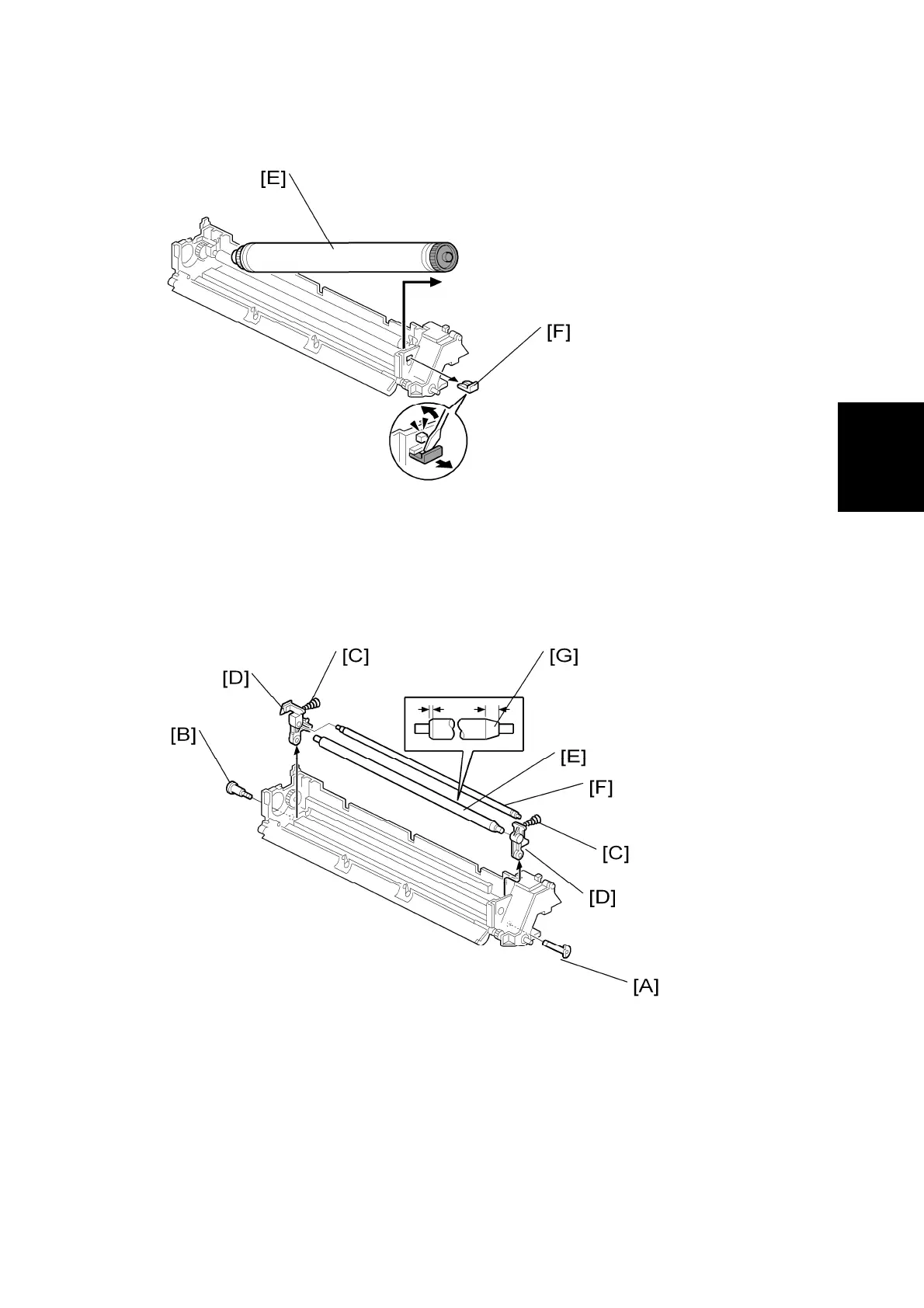

6. Drum [E] (White clip x1 [F])
3.5.4 CHARGE ROLLER, CLEANING ROLLER
1. Remove the PCU. (See ‘PCU Removal’.)
2. Remove the OPC drum. (See ‘OPC Drum’.)
3. Front stud [A]
4. Rear shoulder screw [B] ( x1)
5. Release the front and rear springs [C].
6. Remove the roller assembly [D] (Springs x2, Arms x2, Rollers x2)
7. Charge roller [E]
