Overview
SM 6-11 D017/D018/D019/D020
Detailed
Descriptions

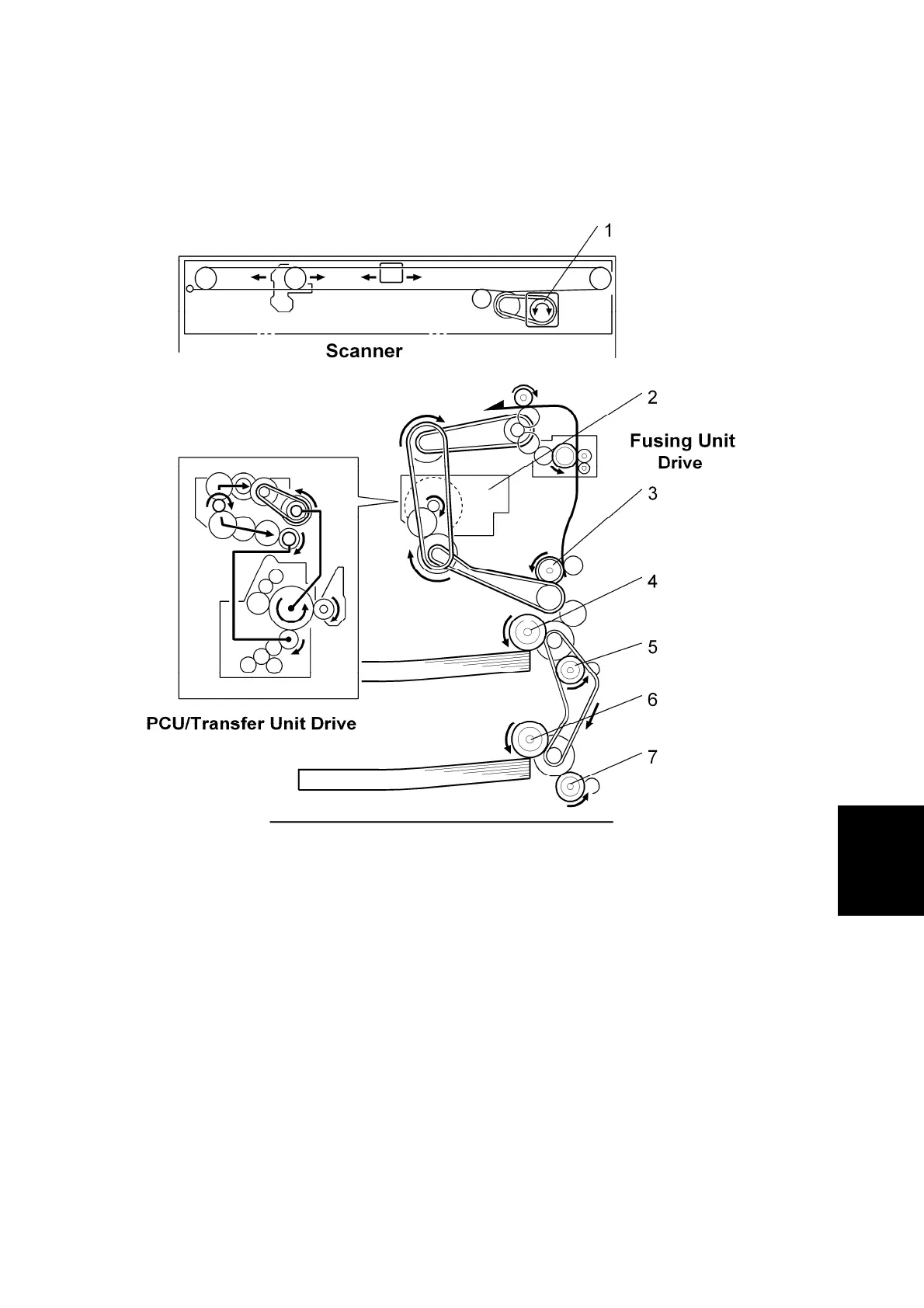

6.1.4 DRIVE LAYOUT
1. Scanner Drive Motor
2. Main Motor
3. Registration Clutch
4. Upper Paper Feed Clutch
5. Upper Transport Clutch
6. Lower Paper Feed Clutch
7. Lower Transport Clutch
