Heaters
SM 1-61 D017/D018/D019/D020
Installation
2. Slide out the 1st and 2nd paper trays.

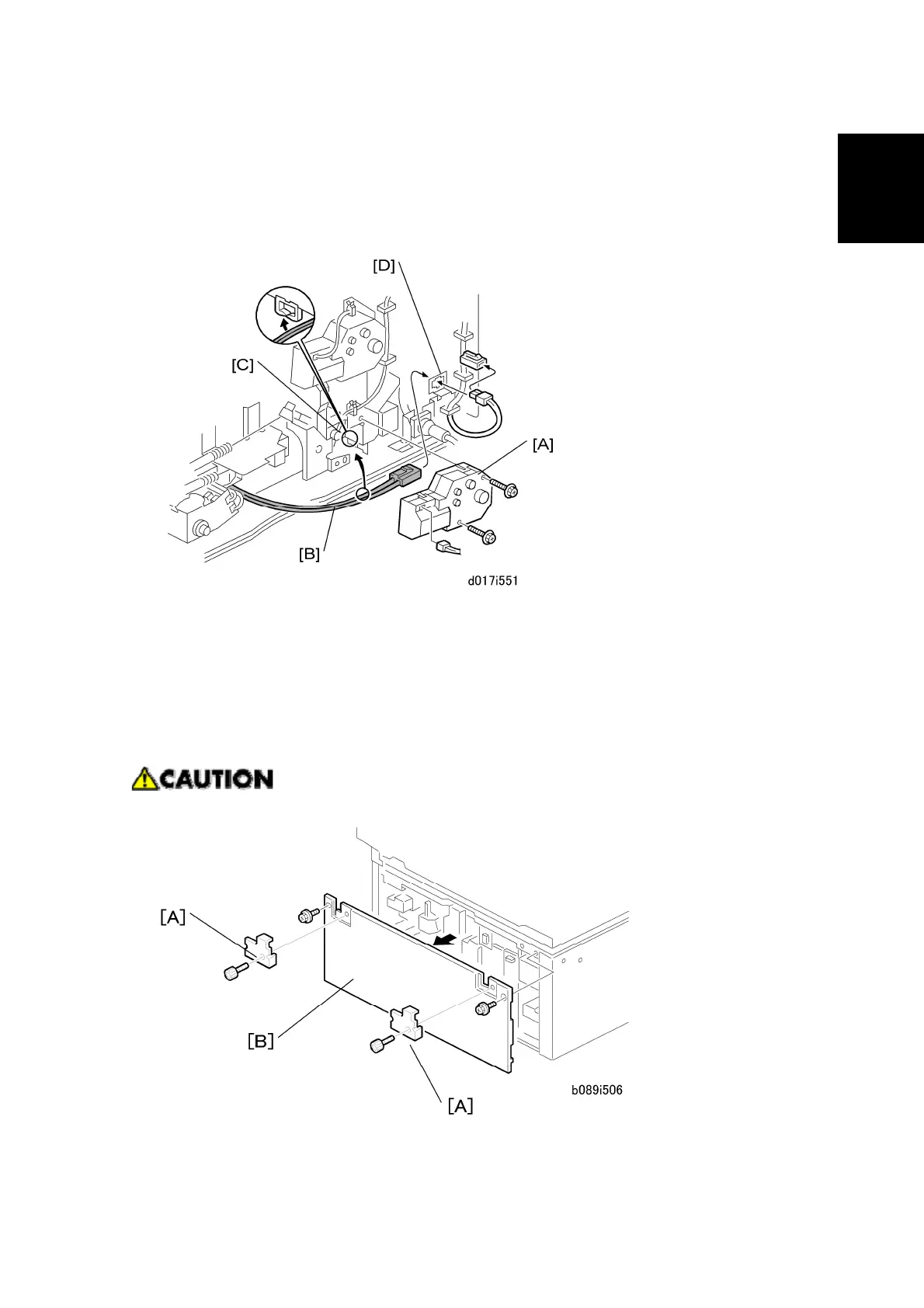

3. Pass the connector [A] through the opening [B].
4. Install the tray heater assembly [C] ( x 1).
5. Remove the 2nd paper lift motor [A] ( x 2, x 1).
6. Route the heater cable [B] as shown.
7. Clamp the heater cable at [C] as shown.
8. Connect the heater cable to the ac cable at [D].
1.17.3 TRAY HEATER (OPTIONAL PAPER TRAY UNIT)
Disconnect the copier power cord before you start this procedure.
1. Remove the joint brackets [A] ( x 1 each).
To Next Page
