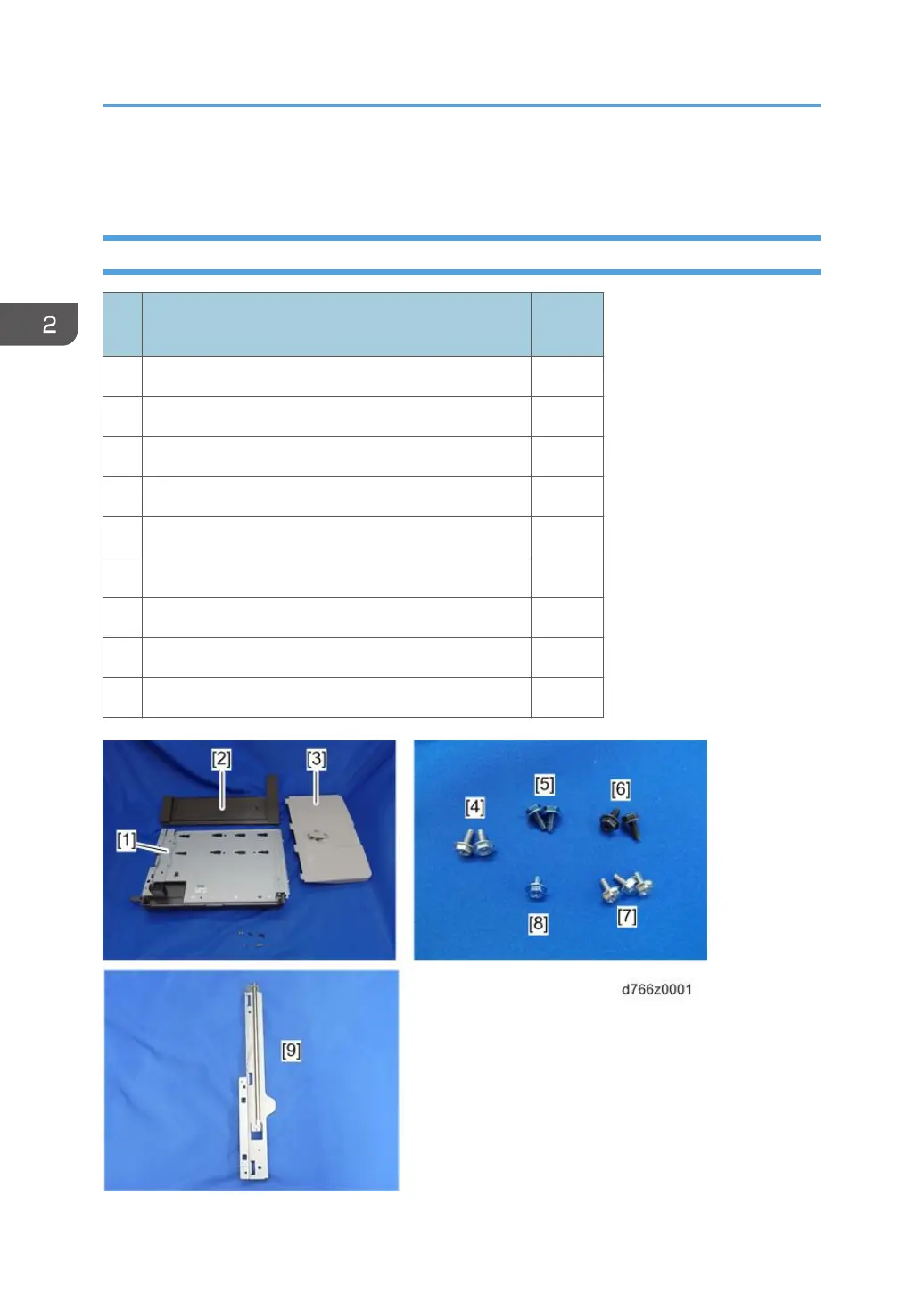

Internal Finisher SR3180
Accessory Check
No
.
Description
Q’ty
1
PLATE:ACCESSORY:ASS'Y
1
2
COVER:ACCESSORY:ASS'Y
1
3
TRAY:EXIT:ASS'Y
1
4
TAPPING SCREW:3X8
2
5
TAPPING SCREW:3X8
2
6
TAPPING SCREW:3X8
2
7
SCREW:M3X6
3
8
TAPPING SCREW:3X6
1
9
Bracket
1
2. Installation
128
129
131
