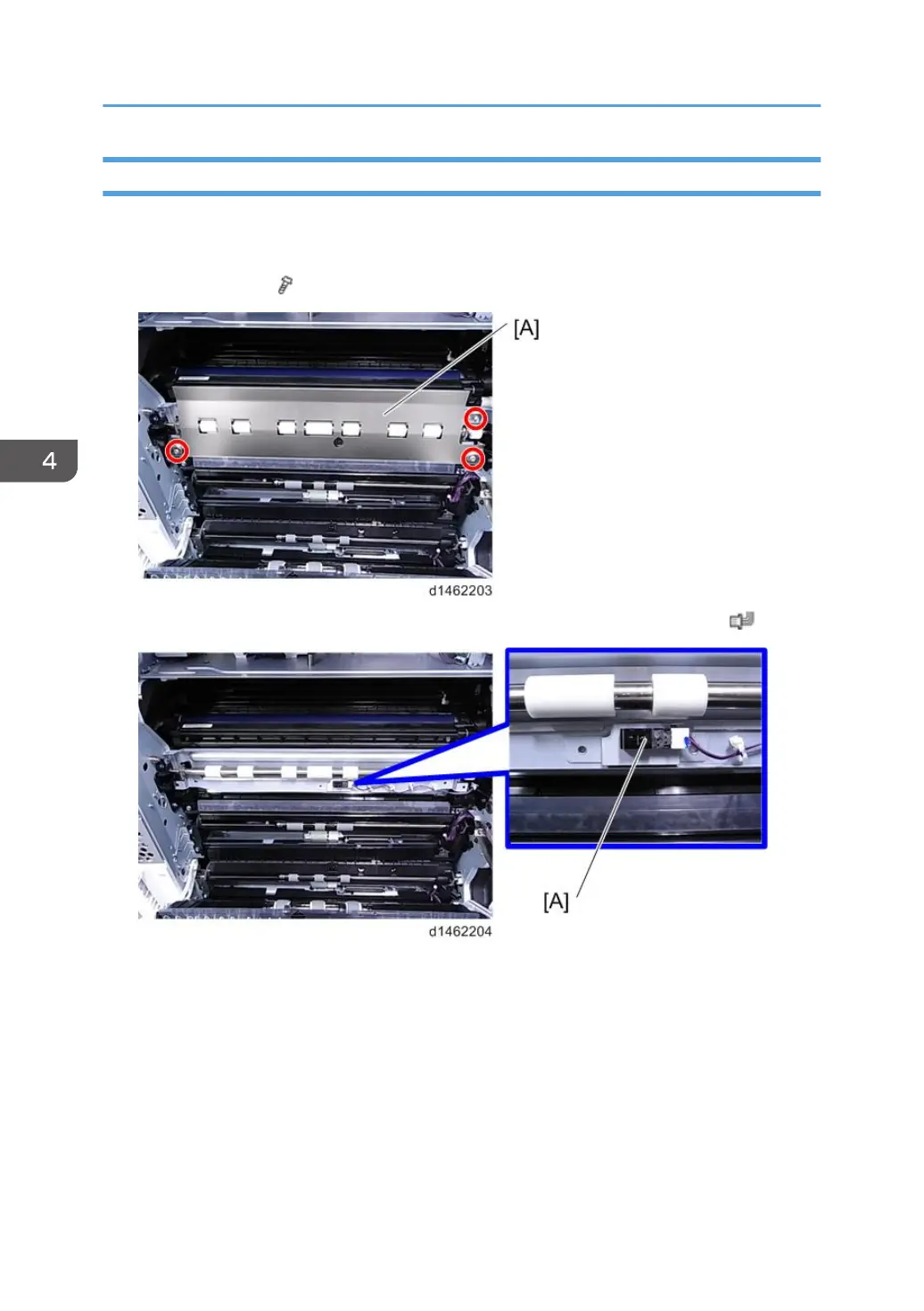

Registration Sensor
1. Open the right cover (page 383)
2. Paper transfer roller unit (page 305)
3. Inner bracket [A] ( ×3)
4. Remove the registration sensor from the stay gap using a slotted screwdriver ( ×1)
4. Replacement and Adjustment
376
