Ricoh MET-C1 User Manual

No. Description No. Description
8 Toner bottle drive motor (Bk) 17 Waste toner capacity sensor
9 Toner transport motor (Y) 18 Waste toner bottle set switch

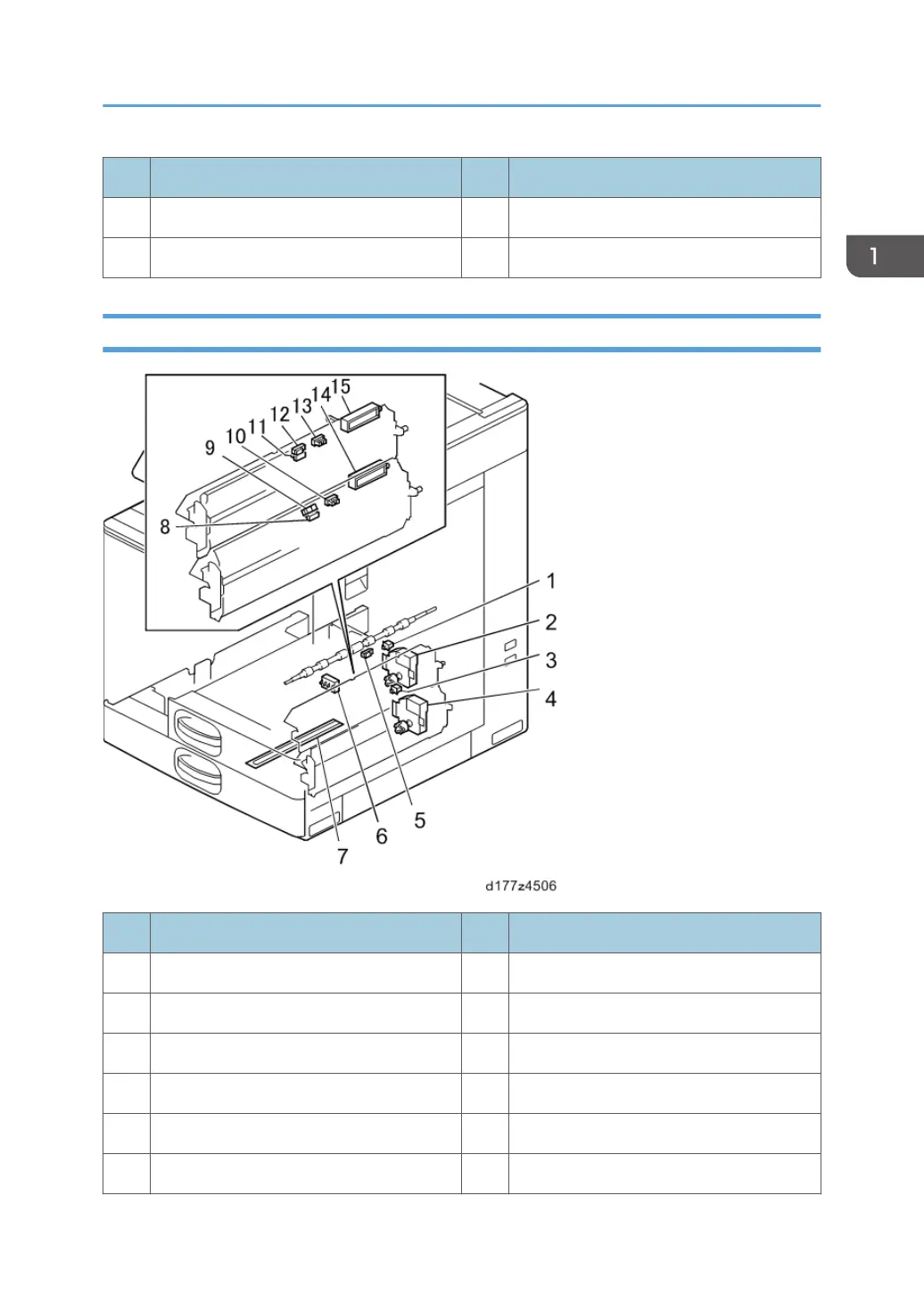

Paper Feed Unit
No. Description No. Description
1 Tray set switch (1st feed tray) 10 Paper feed sensor (1st feed tray)
2 Lift motor (1st feed tray) 11 Paper end sensor (2nd feed tray)
3 Tray set switch (2nd feed tray) 12 Limit sensor (2nd feed tray)
4 Lift motor (2nd feed tray) 13 Transport sensor (1st feed tray)
5 Registration sensor 14 Paper end sensor (1st feed tray)
6 Size switch (2nd Feed Tray) 15 Limit sensor (1st feed tray)
Product Overview
27

Ricoh MET-C1 Specifications
