2.

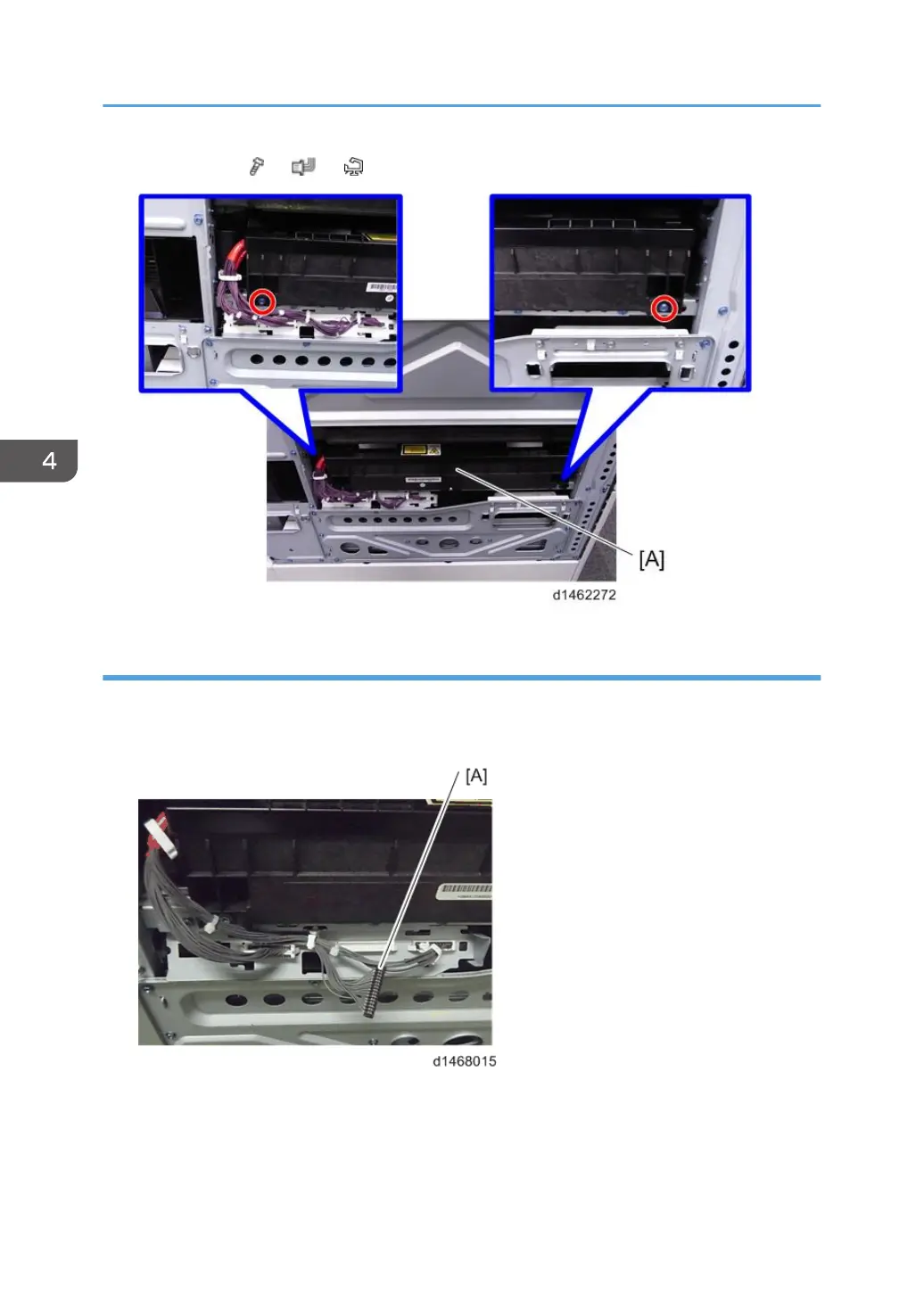

Laser unit [A] (
×2,
×4,
×3)
Installing a New Laser Unit
1.
Insert the new laser unit in the main body carefully.
2.
Connect all harnesses except the skew correction motor harness [A] (2nd from right).
3.
Reassemble the machine.
