• Do not touch the mirror and the lamp.
• When you move the carriage, hold the central part and move it gently.

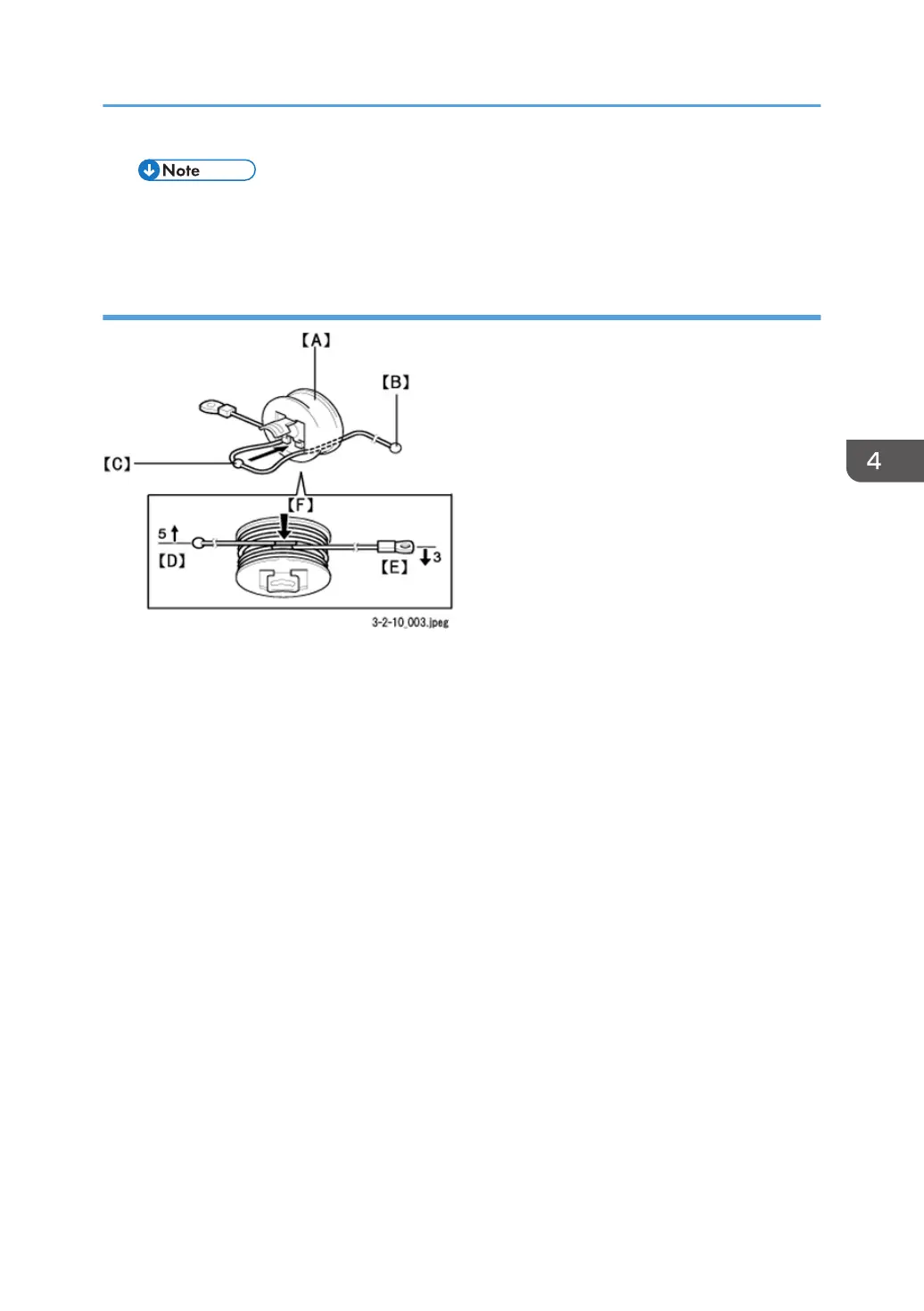

Scanner wire assembly (front side)
1. Pull the scanner wire ball end [B] to the pulley [A] from the left side of the pulley as
shown in the diagram.
2. Set the ball [C] in the center part of the wire on the pulley.
3. Turn the ball end [D] 5 times counterclockwise along the edge on the rear side of the
pulley.
4. Turn the ring end [E] 3.5times clockwise along the edge at the front side of pulley.
