2.

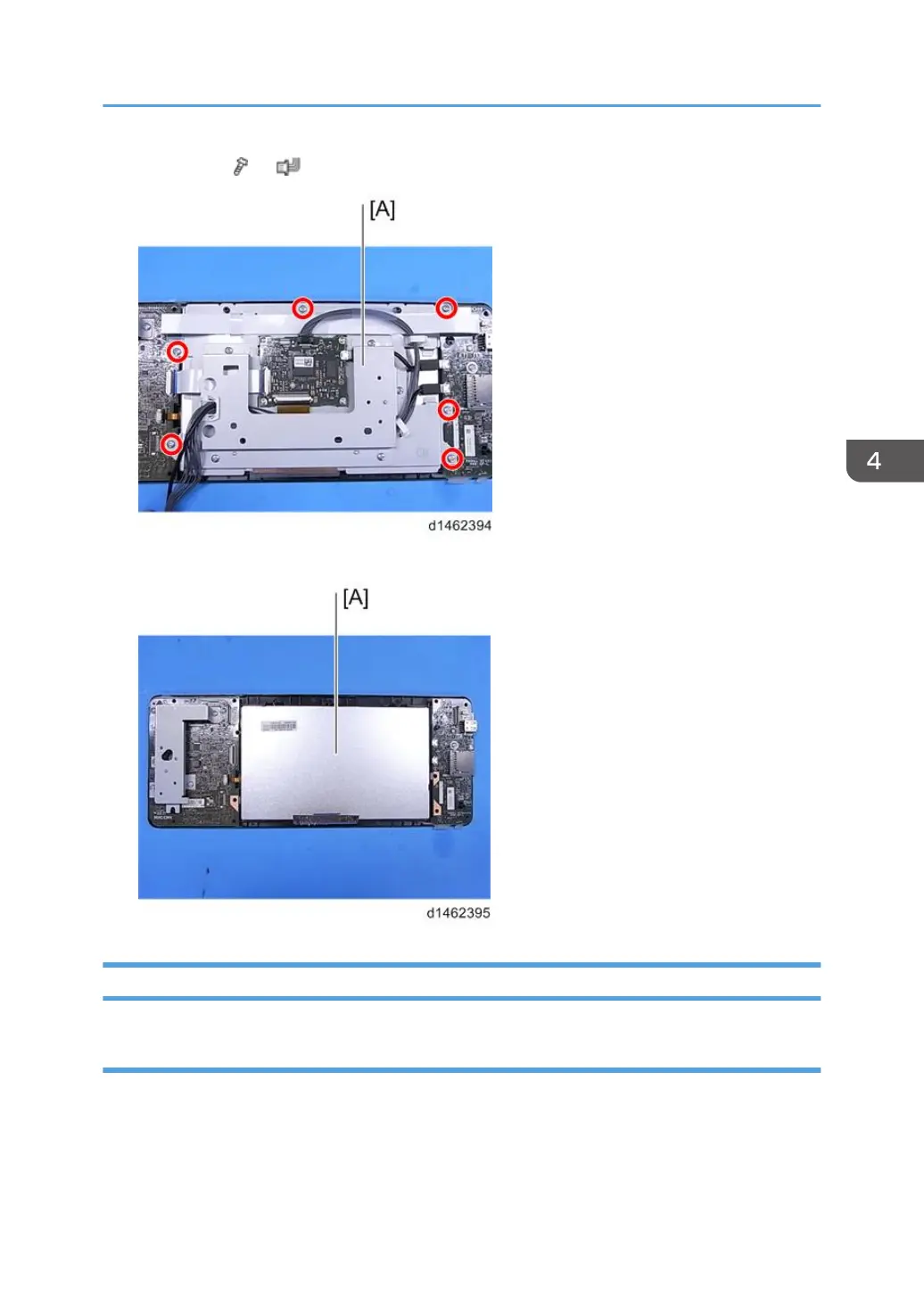

Bracket [A] (
×6,
×5, USB×2)
3.
LCD panel unit [A]
LCD
Notes when replacing the LCD
Since LCD panels from 3 vendors are used, the replacement parts differ depending on the vendor.
When replacing, check the vendor used, and ensure that you use the correct part.
