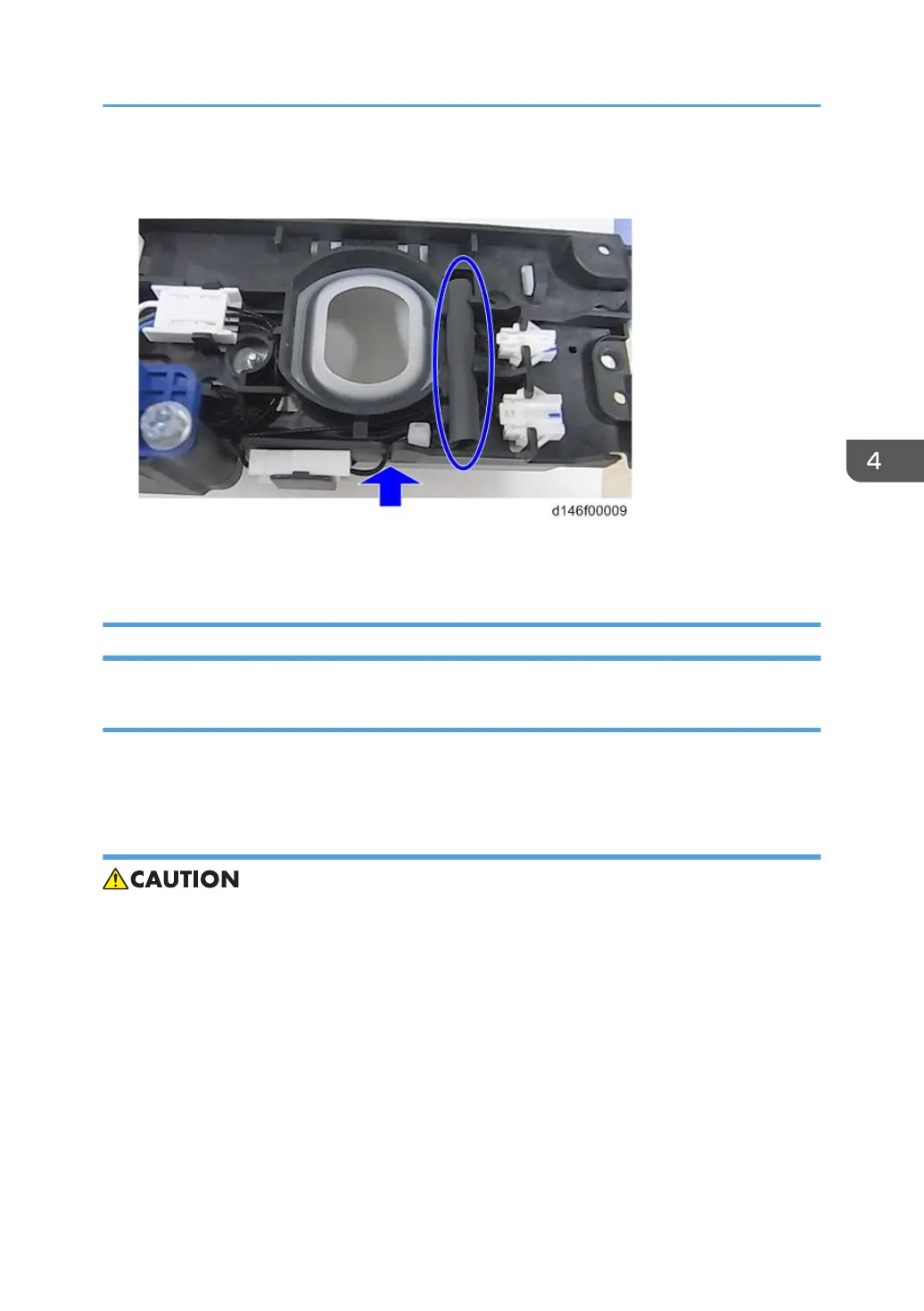

3. Pass the fuse harness through the slit located next to the connector (blue arrow) and place
the fuse in the empty space (blue circle).
4. Execute SP5-810-002 [SC Reset: Hard High Temp. Detection].
5. Execute SP3-701-116 [Manual New Unit Set: #Fusing Belt].
Pressure Roller
Adjustment before replacing the pressure roller
Before replacing the Pressure Roller, set SP3-701-118 to "1" and switch the power OFF. Then replace
the Pressure Roller and switch the power ON.
Replacement
• Do not remove or adjust the pressure adjusting screws [A] when replacing the pressure roller.
The fusing unit is adjusted in the factory to match the hardness of the pressure roller, so that the nip width
will be correct, so please do not release the pressure adjustment screw.
Fusing Unit
351
