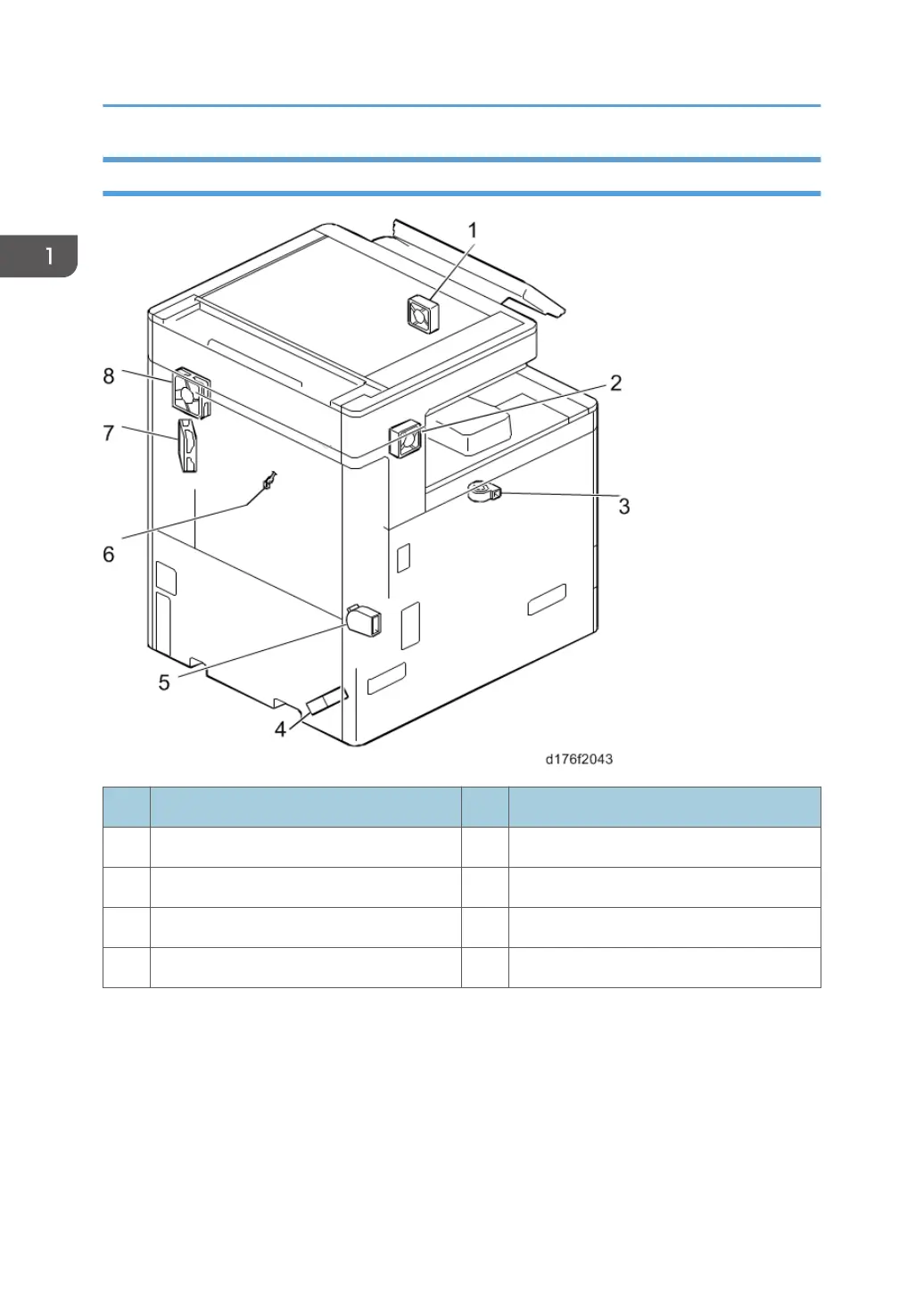

Air Flow
No.
Description
No.
Description
1
Paper exit cooling fan
5
Ozone exhaust fan
2
Development intake fan/right
6
Thermistor
3
Development intake fan/left
7
Toner supply cooling fan
4
PSU cooling fan
8
Fusing exhaust heat fan
