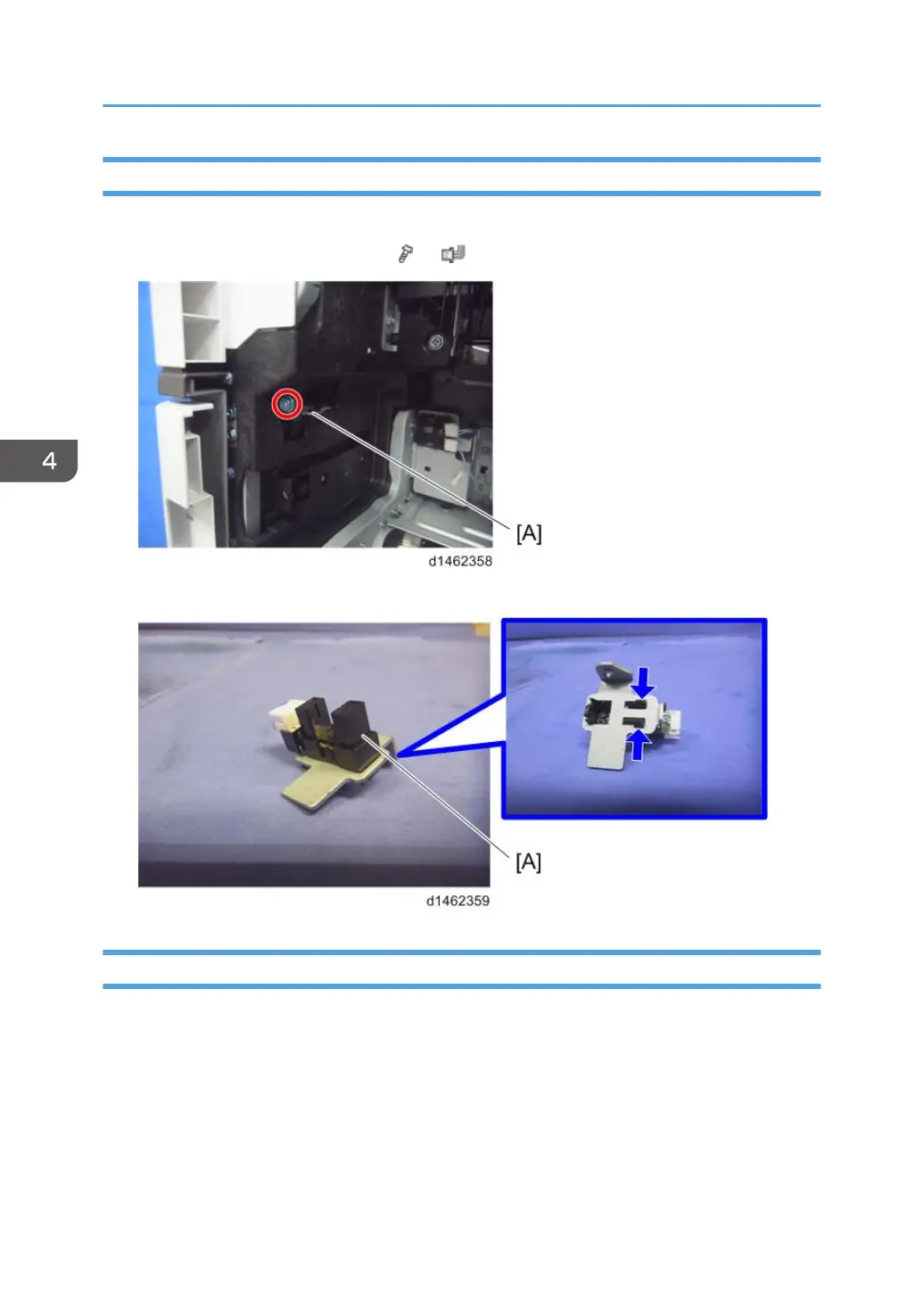

Pressure Roller HP Sensor
1.
Fusing unit (
page 340
)
2.
Pressure roller HP sensor unit [A] (
×1,
×1)
3.
Pressure roller HP sensor [A]
Fusing Shield Position Sensor
1.
Fusing unit (
page 340
)
