2.

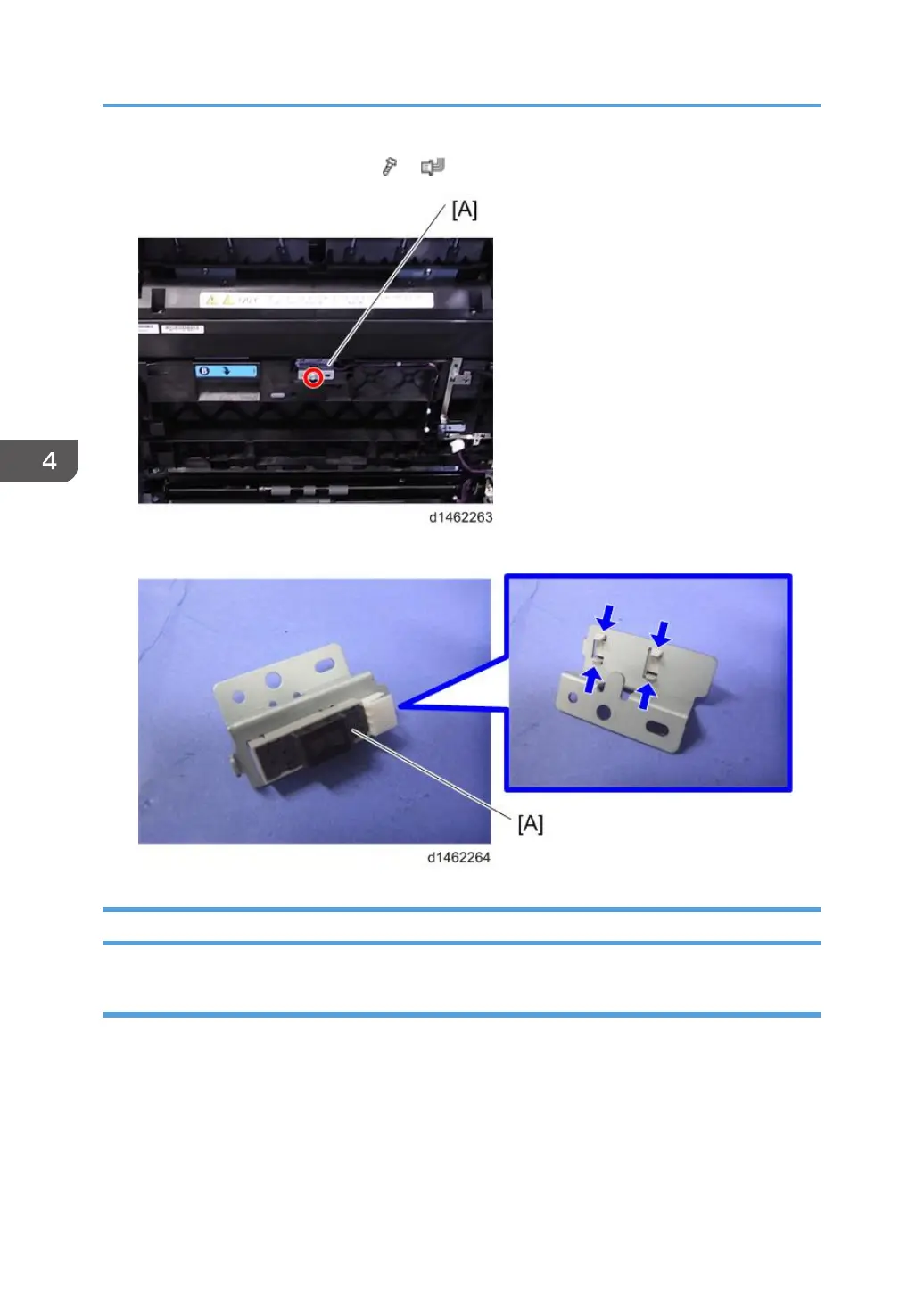

Fusing entrance sensor unit [A] (
×1,
×1)
3.
Fusing entrance sensor [A]
TM (ID) Sensor
Before Replacing the TM(ID) sensor
Each sensor assembly has a list of characteristic values attached to it. Before you replacing the TM / ID
sensor, you must do the following procedure, or process control/MUSIC will not be done correctly after
power is switched on (it will use the values for the old sensor).
4. Replacement and Adjustment
308
309
311
