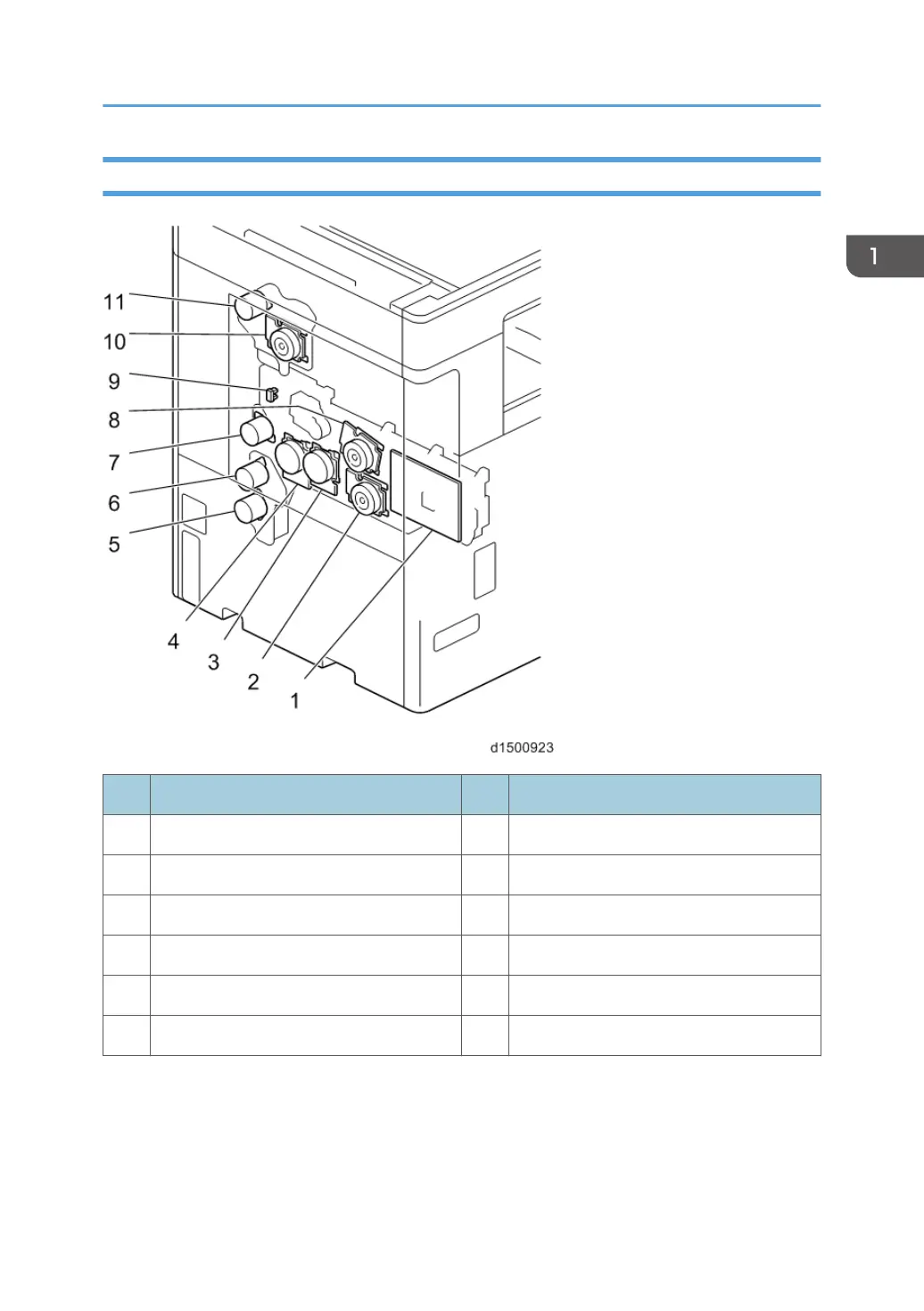

Drive Unit
No.
Description
No.
Description
1
Imaging IOB
7
Registration Motor
2
Development Motor: CMY
8
PCU Motor: CMY
3
Development Motor: Black
9
Phase sensor
4
PCU: Black / Image Transfer Motor
10
Fusing Motor
5
Paper Feed Motor
11
Paper Exit / Pressure Release Motor
6
Transport Motor
