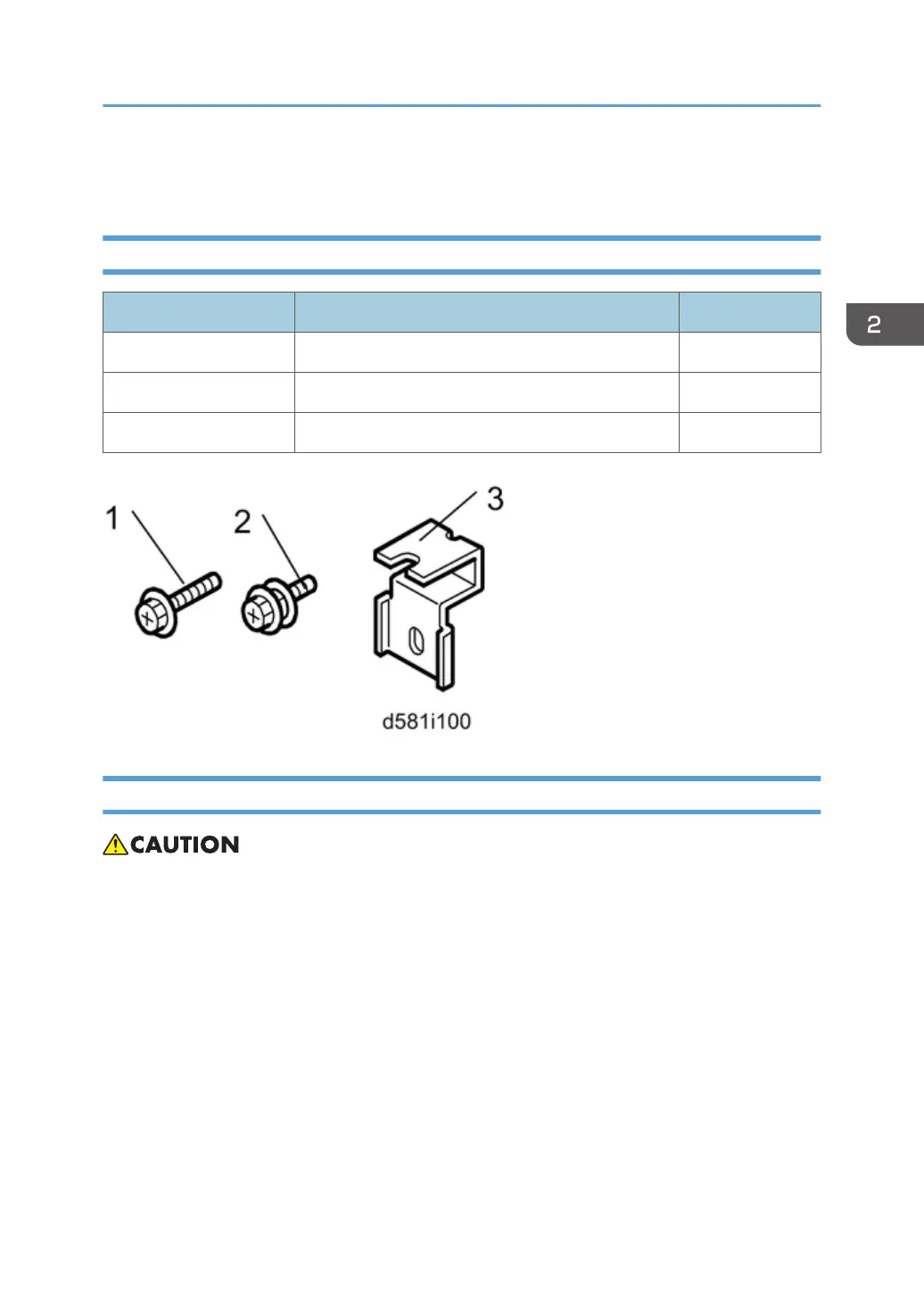

Paper Feed Unit PB3210
Accessory Check
No. Description Q’ty
1 SCREW:M4X10 2
2 SCREW:SPRING WASHER:ROUND POINT:M4X10 1
3 BRACKET:COUPLING 2
Installation procedure
• The machine should be held at the correct locations and lifted gently.
• If it is lifted without care, handled carelessly or dropped, it may result in an injury.
• When installing this option, turn the machine power OFF, and unplug the power supply cord from
the wall socket.
• If it is installed with the power on, it may result in an electric shock or a malfunction.
• Be sure to join the machine to the paper feed unit so as to prevent equipment from falling over.
• If they are not connected, they may move and fall over, resulting in injury.
1. Remove the orange tape and retainers.
2. Remove the items provided (fixing screws, etc.) from the package.
Holding the grips on the machine, align it with the locating pin [A], and place the machine on the
paper feed unit.
Paper Feed Unit PB3210
