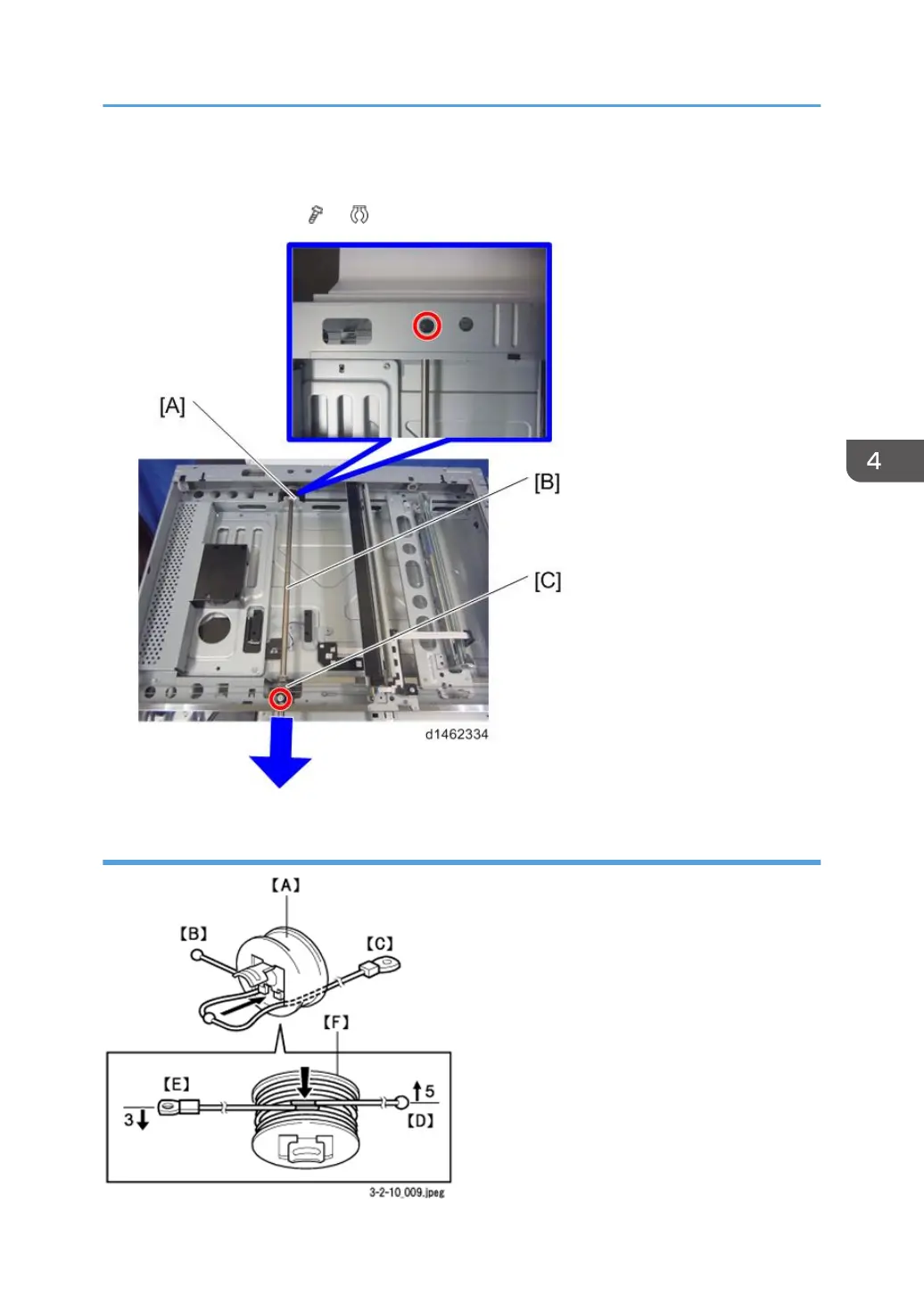

11. Remove the screw and the clip ring of the wire pulley (front) [A] and wire pulley (rear)
[C], draw out the scanner drive shaft [B] in the direction of the arrow, and remove the
wire pulley (rear) [C] ( ×1, ×2).
Scanner Wire Assembly (rear side)
Scanner Unit
271
