• Both Procedure 1 and 2 are OK: No problem.
• Either Procedure 1 or 2 is NG: The mechanism is blocked.
• The shield detection feeler never moves while moving the shield drive gear by hands or fingers:
Locked.
Solution
By tilting the fusing unit, you can check whether the feeler does not move smoothly due to burrs on a part
in the unit, and remove the burrs.

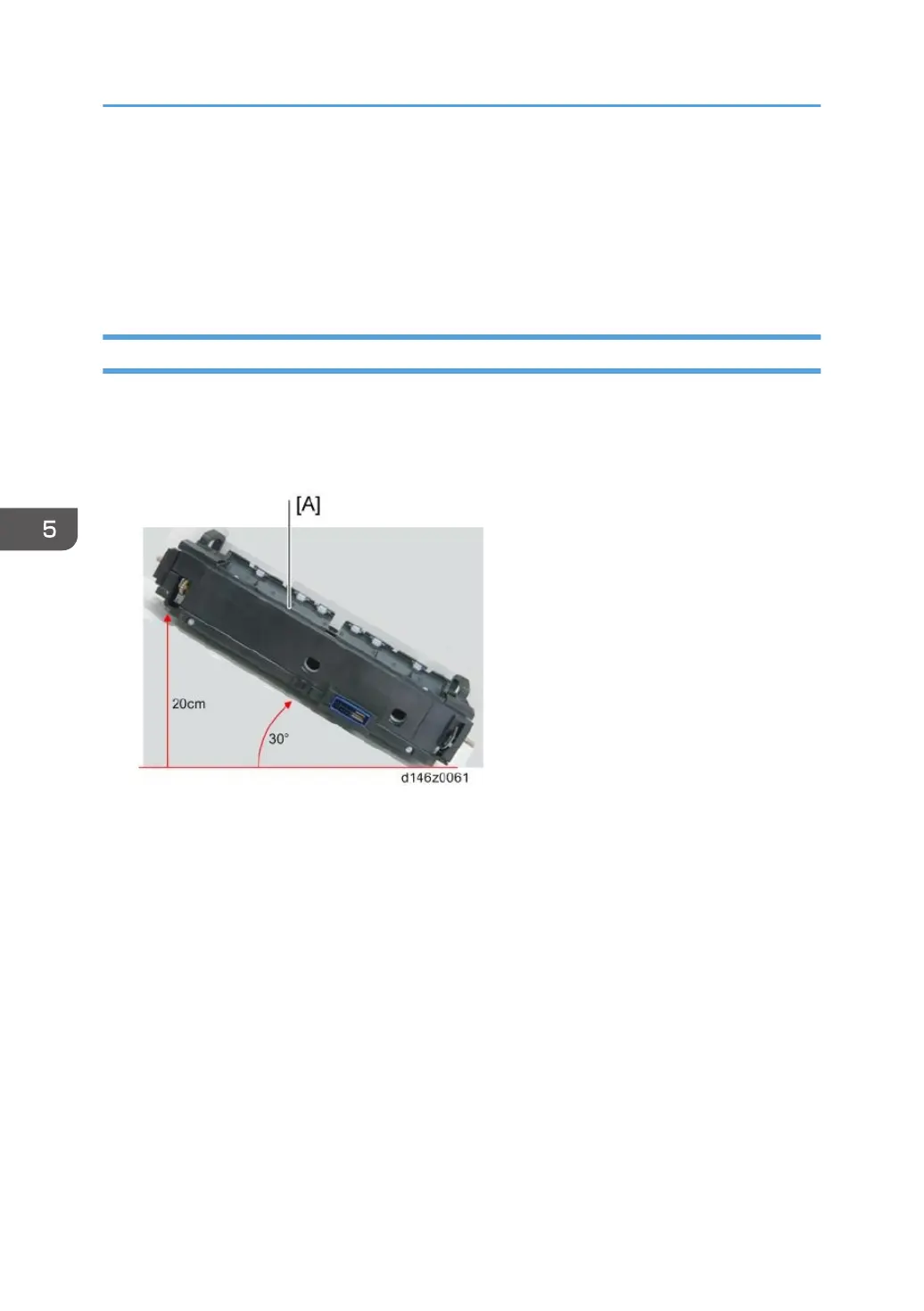

1. Tilt the fusing unit [A] approx. 30°.
2. Put the fusing unit back to the horizontal position.
3. Perform the checking procedures (Fusing Shield Check).
There is no blockage: Resolved
There is some blockage: Not resolved
5. Troubleshooting
624
