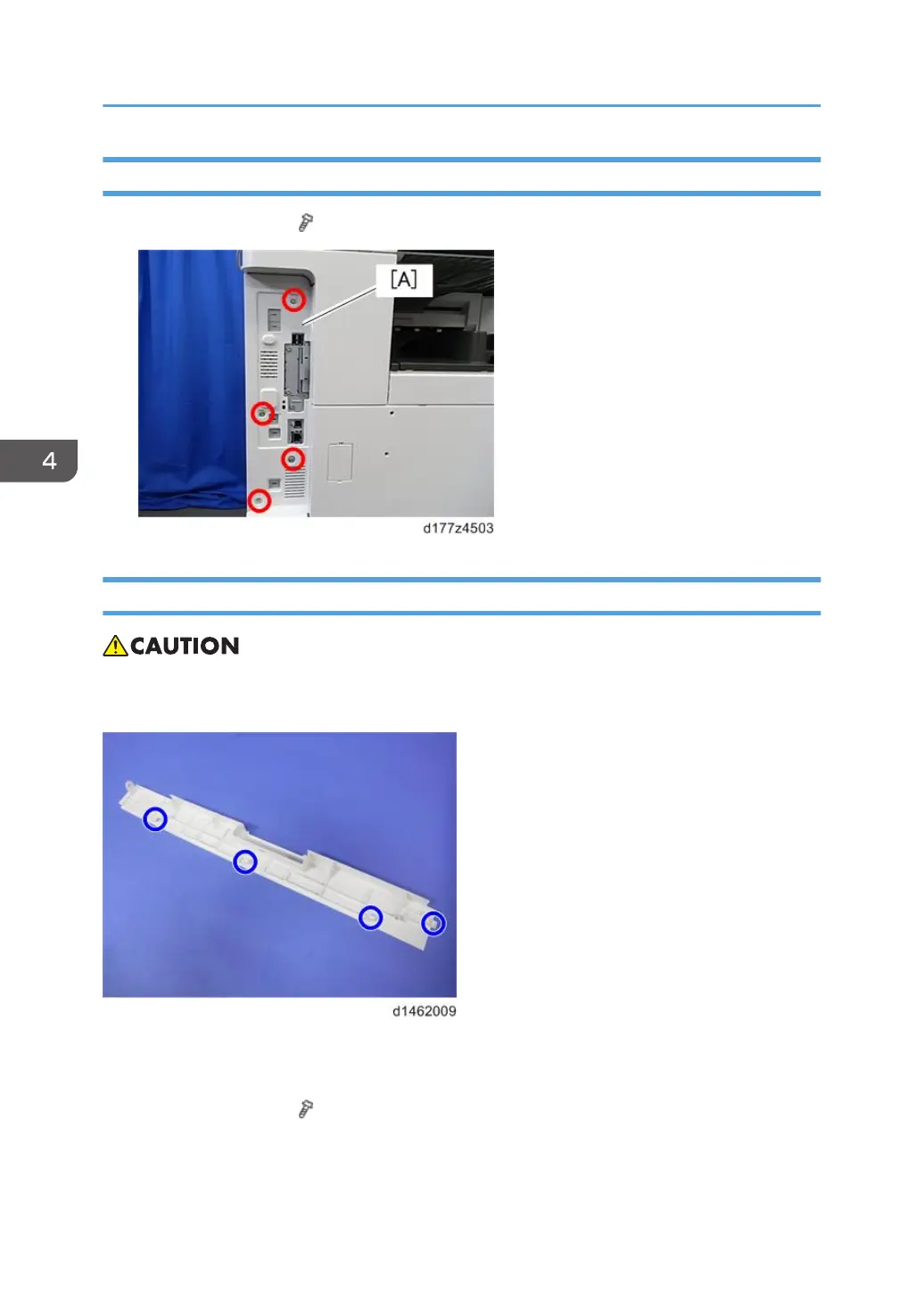

Controller Cover
1.
Controller cover [A] (
×4)
Upper Left Cover
•
Each part enclosed by a blue circle has a tab. Be careful not to damage it when attaching and
detaching.
1.
Open the front cover. (
page 224
)
2.
Paper exit tray (
page 236
)
3.
Upper left cover [A] (
×1)
Slide the cover in the direction of the blue arrow.
4. Replacement and Adjustment
226
227
229
