Transport screw
Y
1.
Image transfer unit (
page 293
)
2.
PCDU (
page 281
)
3.
Toner Bottle Drive Motor (
page 330
)
4.
Sub hopper (
page 325
)
5.
ID chip (
page 331
)
6.

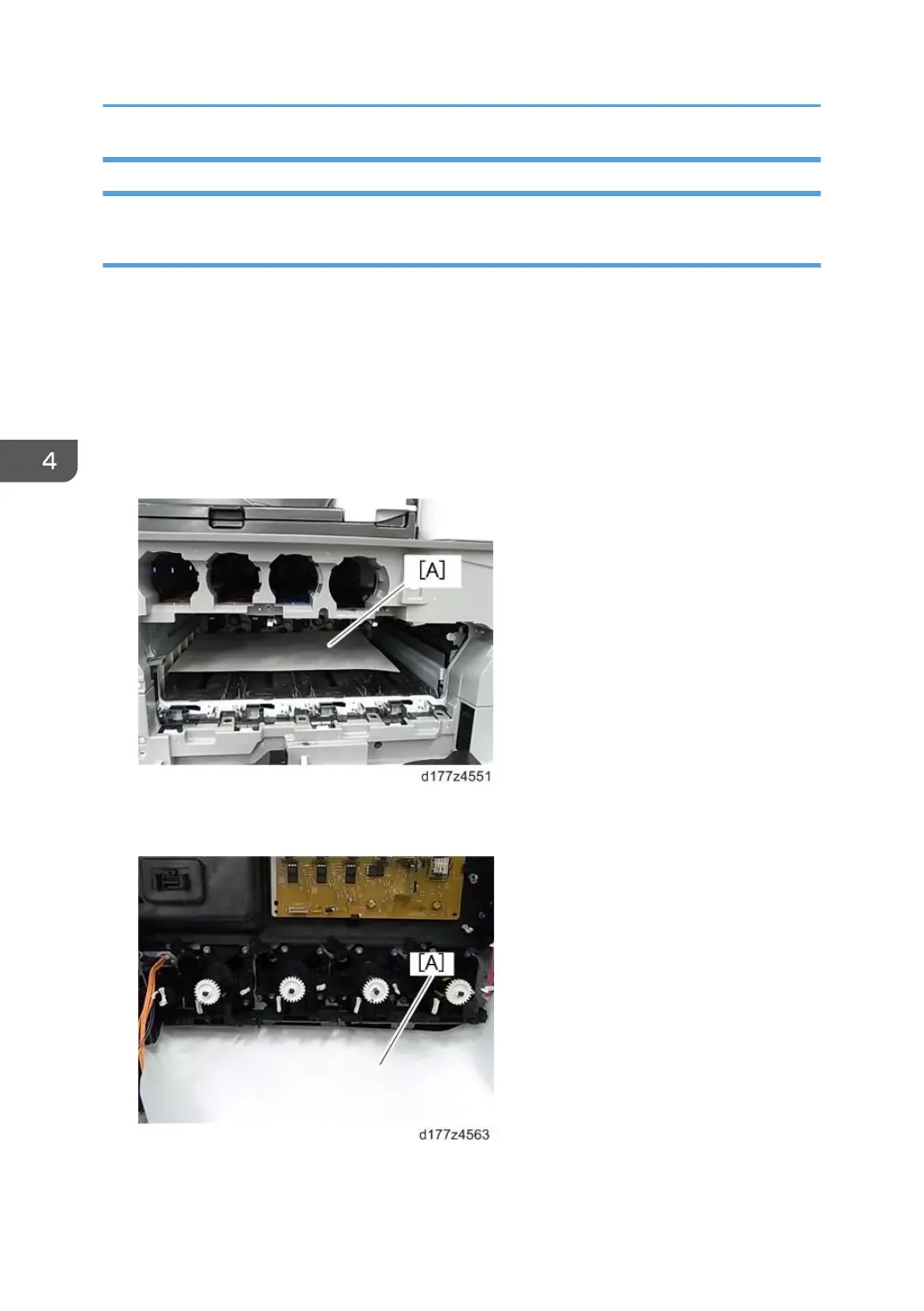

Put a piece of disposable paper [A] on the inside of the machine to avoid damage due to
toner spillage.
7.
Put a piece of disposable paper [A] under the transport screw to avoid damage due to
toner spillage.
