Roche Diagnostics
E-10 Operatorโ€™s Manual ยท Version 3.1
12 ISE description Cedex Bio System
Hardware
ISE LED
The ISE LED is color coded.
Main components
Peristaltic pump A fluid pump that draws the solutions through the electrode block and then pumps it
to the internal waste tank.
Input-valve plate A set of valves to create cleaning segments and to control the flow of waste fluids.
Entry-valve plate A set of valves to control and monitor the flow of fluids.
Exit-valve plate A set of valves to control the aspiration action of the peristaltic pump.
Electrode block A block that contains the electrodes.
Power off (e.g. power supply disconnected.)
The ISE unit is OK and ready for use.
Blinking The fluid level in the ISE Reference or ISE Calibrator Indirect bottle is
low.
Error, processing stopped.
A Electrode block with ISE Sodium, Potassium,
and Reference Electrode
B ISE Reference Solution sensor
C ISE tower
D Input-valve plate
E ISE Reference Solution bottle (red label)
F ISE Calibrator Indirect bottle (blue label)
G Peristaltic pump with pump tubing
H Exit-valve plate
I Measuring channel
J ISE sample sensor
K Entry-valve plate with tubing

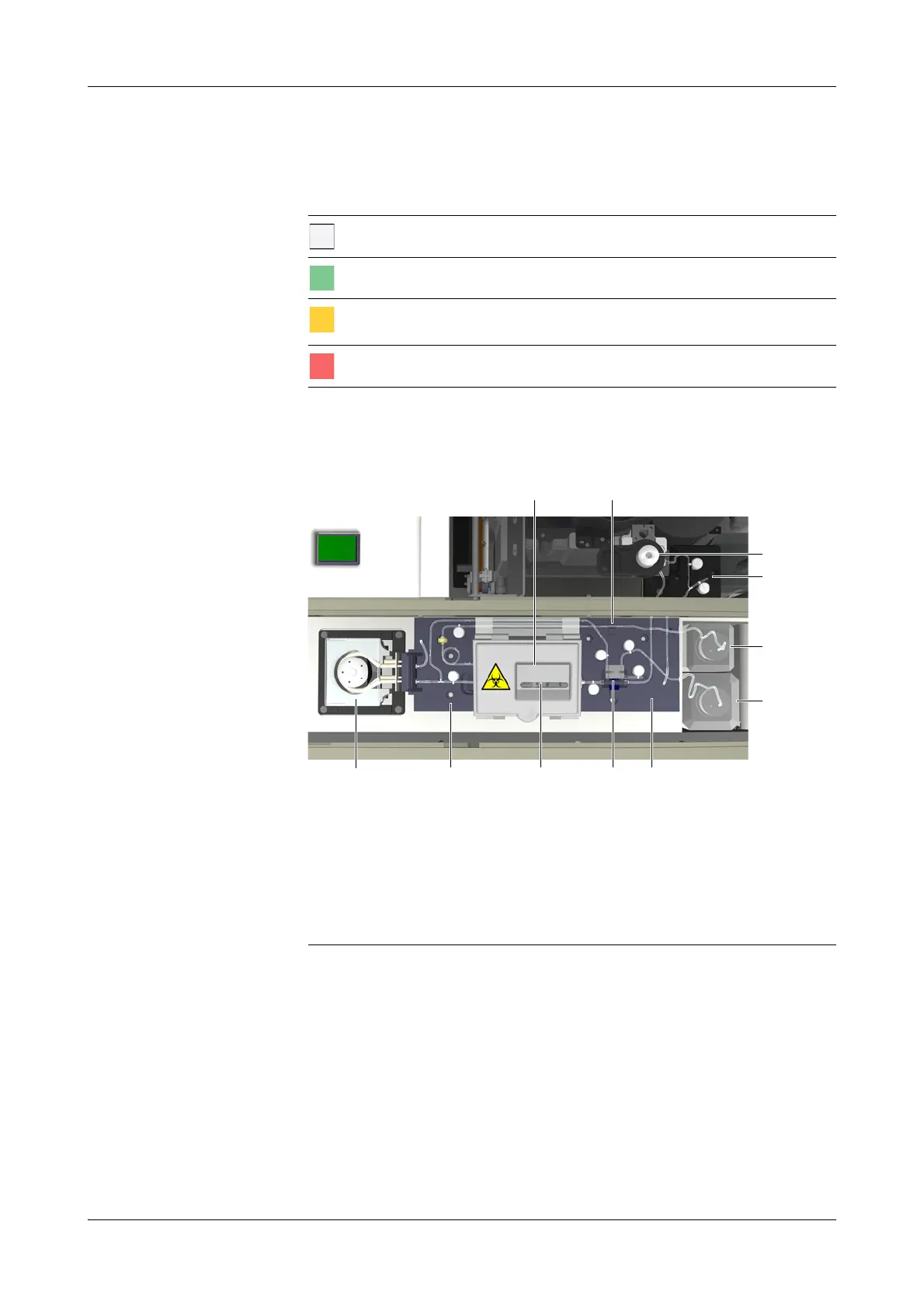

Figure E-3 Main components of the ISE unit
G
C
D
F
E
H I KJ
BA
