Roche Cedex Bio System User Manual

Roche Diagnostics
Operator’s Manual · Version 3.1 A-61
Cedex Bio System 3Hardware
Hardware overview
Printer
The Cedex Bio instrument has a built-in thermal printer with a 112 mm paper roll.
The printer is used for example for printing placement lists, results, maintenance
action instructions, and status information on various items such as the loaded tests.
e See maintenance action Refilling printer paper on page B-122.
See To clear the paper jam on page D-46.
Absorbance photometer
The Cedex Bio main instrument uses the absorbance photometry measuring
method.
Absorbance photometer
The measurements are taken without removing the cuvette from the rotor.
Halogen lamp The Halogen lamp is mounted on a holder for easy replacement. The system informs
you when you need to replace the lamp.
e See maintenance action Replace photometer lamp on page C-24.
A Panel release button
B Paper slot
C Printer panel

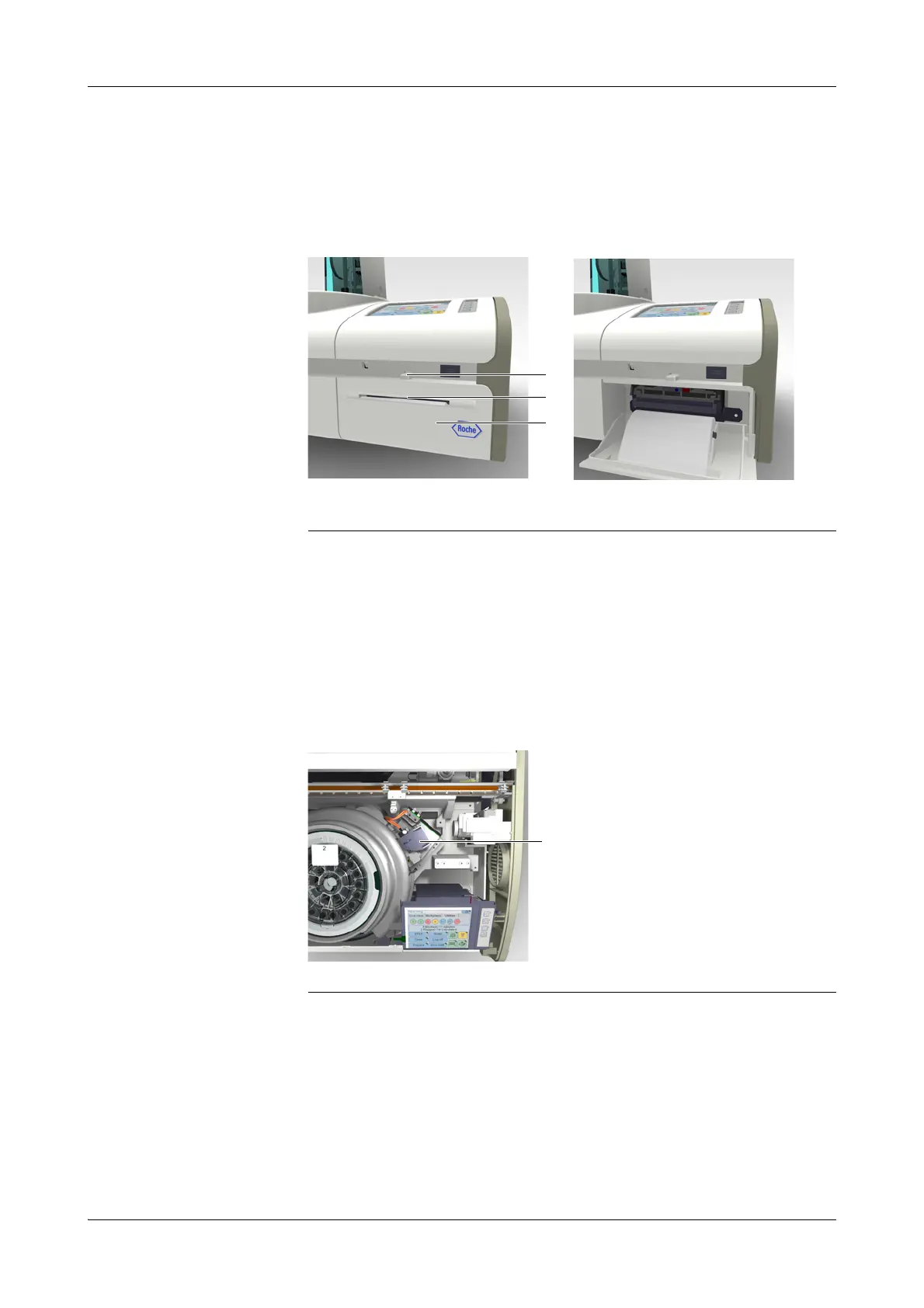

Figure A-30 Printer
A
B
C
A Photometer unit
Figure A-31 Photometer unit
A
