13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 4-11
Maintenance Section 4
Clean the Upper Media Guide (Snap Plate)
Clean to remove a label or label adhesive from the underside of the snap plate.
1. Refer to Figure 4-2. Insert a small-blade screwdriver or similar tool into the loop on
the left side of the snap plate. Lift the snap plate up a short distance.
2. Lift up the loop on the right side of the snap plate.
3. Remove the snap plate from the printer.
4. Clean the snap plate with cleaning solvent and a soft cloth.
5. To reinstall the snap plate, insert the two tabs on the bottom of the snap plate into the
two slots of the media pathway.
6. Slide the snap plate toward you.
7. Press down on the loops to lock the snap plate into place.

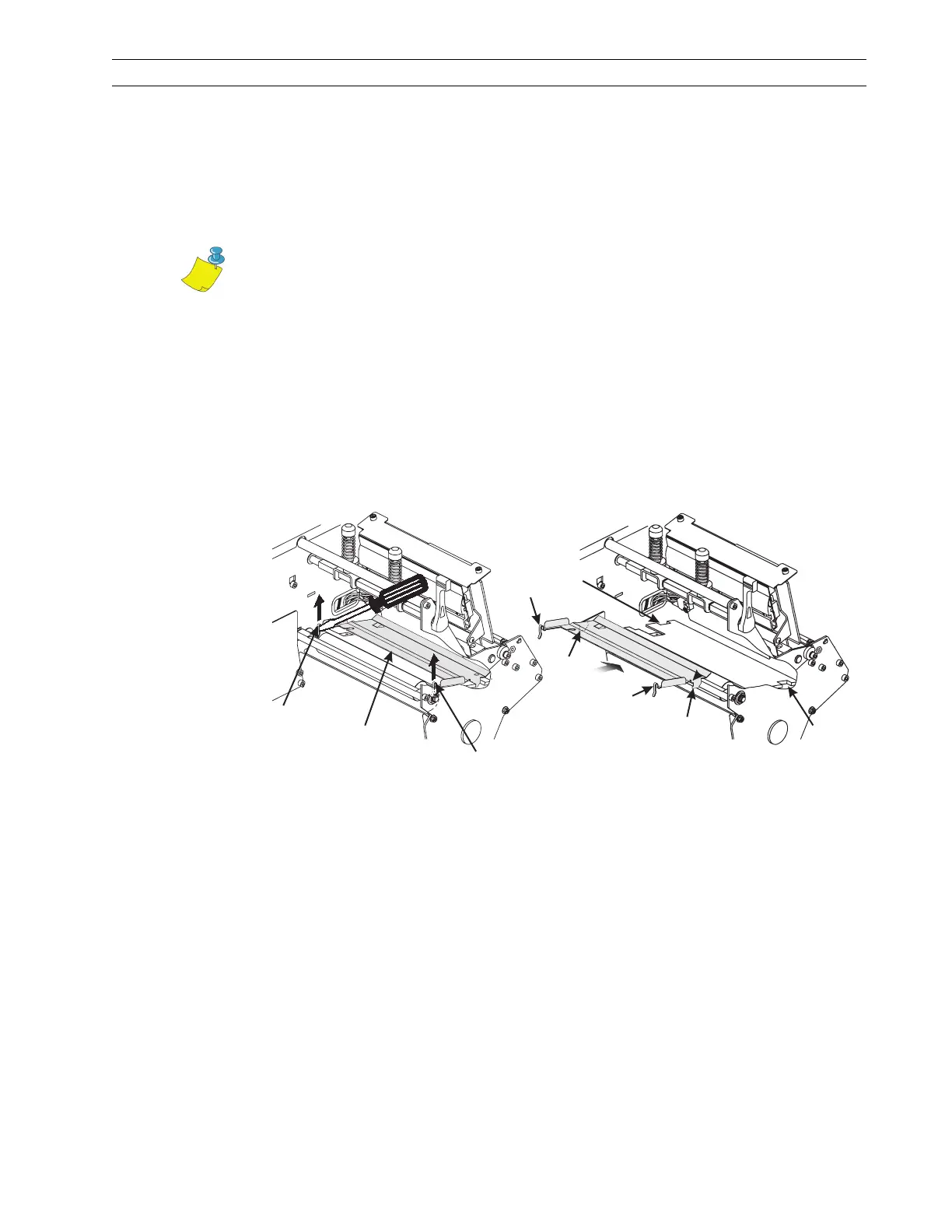

Figure 4-2. Snap Plate Removal and Installation
Note • Use care not to bend, twist, or otherwise deform the loops!
Upper Media Guide
(Snap Plate)
Loop
Loop
Loop
Tab
Tab
Slot
Slot
Removal
Installation
Loop
