13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 4-91
Maintenance Section 4
19. Leave approximately a 0.020 inch (0.5 mm) gap between the E-ring (9) and platen
support bracket (7), and tighten the set screws.
20. Position the rewind plate as shown in Figure 4-61 with the attached hook plate
pointing down.

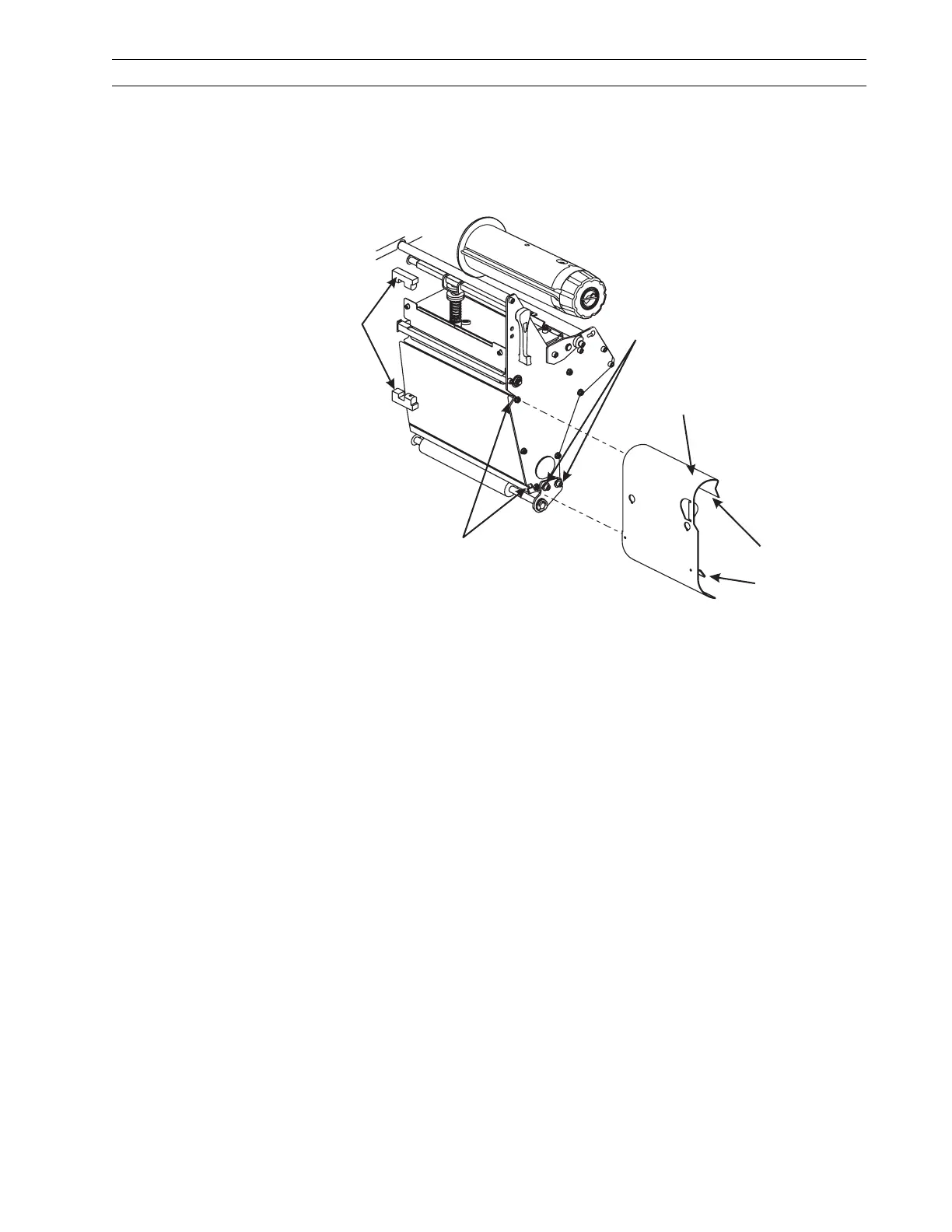

Figure 4-61. Take-Label Sensor Location
21. Insert the hook plate 1/2 inch (13 mm) into the lower opening in the side plate.
22. Align the upper end of the media rewind plate with the corresponding opening in the
side plate, then slide the rewind plate in until it stops against the main frame.
Install and Adjust the Drive Belt Tension
Refer to RRP No. 8 on page 4-28 and install the rewind drive belt.
Refer to RRP No. 7 on page 4-26 and adjust the rewind drive belt tension.
Refer to RRP No. 5 on page 4-23 and readjust the main drive belt tension.
Rewind Plate
Lip
Adjustable
Hook Plate
Slot
Take-Label
Sensors
Lower Platen
Roller Adjustment
Screws
To Next Page
