Zebra 110XiIII Plus Series User Manual

13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 3-7
Troubleshooting Section 3
Communications Diagnostics Test
Refer to Figure 3-5. This test is controlled by configuring the Setting Communications
Mode parameter. Set to diagnostic.

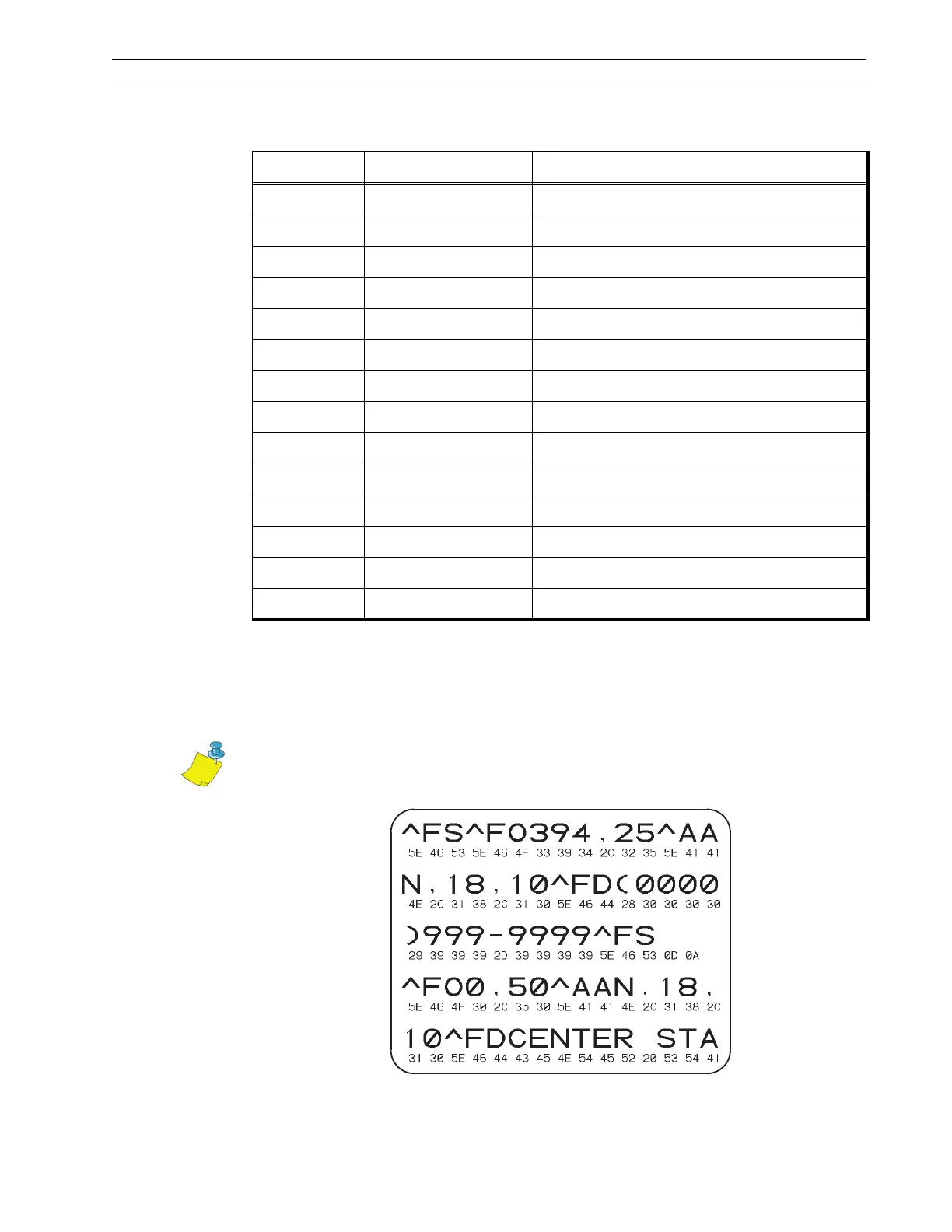

Figure 3-5. Communications Diagnostics Self Test
Table 3-2. Format Sequence
Format Printing Test Function
1 20 at 6 ips Left Ribbon Wrinkle Test
2 20 at 6 ips Right Ribbon Wrinkle Test
3 20 at 6 ips Bar Code Wrinkle Test (Code 39)
4 20 at 2 ips Left Ribbon Wrinkle Test
5 20 at 2 ips Right Ribbon Wrinkle Test
6 20 at 2 ips Bar Code Wrinkle Test (Code 39)
7 20 at 6 ips Usable Area Test
8 20 at 6 ips Head Temperature Test
9 20 at 6 ips Upper Smear Test
10 20 at 6 ips Lower Smear Test
11 20 at 2 ips Usable Area Test
12 20 at 2 ips Head Temperature Test
13 20 at 2 ips Upper Smear Test
14 20 at 2 ips Lower Smear Test
Note • This label is inverted when printed.
