Zebra 110XiIII Plus Series User Manual

13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 2-13
Operations Overview Section 2
Rewind Mode (for Printers with Cutter Option)
Refer to Figure 2-9.
1. Remove the rewind plate from its storage location in front of the print mechanism
inside the media compartment.
2. Invert the rewind plate so the lip on the attached hook plate points down.
3. Insert the hook plate lip approximately 1/2 in. (13 mm) into the lower opening in the
side plate. Slide in the rewind plate so it stops against the printer’s main frame.
4. Insert the two small tabs on the rewind plate into the corresponding slots in the
cutter support bracket. (The rewind plate should spring into the proper position.)
5. Open the printhead.
6. Slide the media guide and media supply guide as far away from the printer frame as
possible. Flip down the media supply guide.
7. Load media as shown.

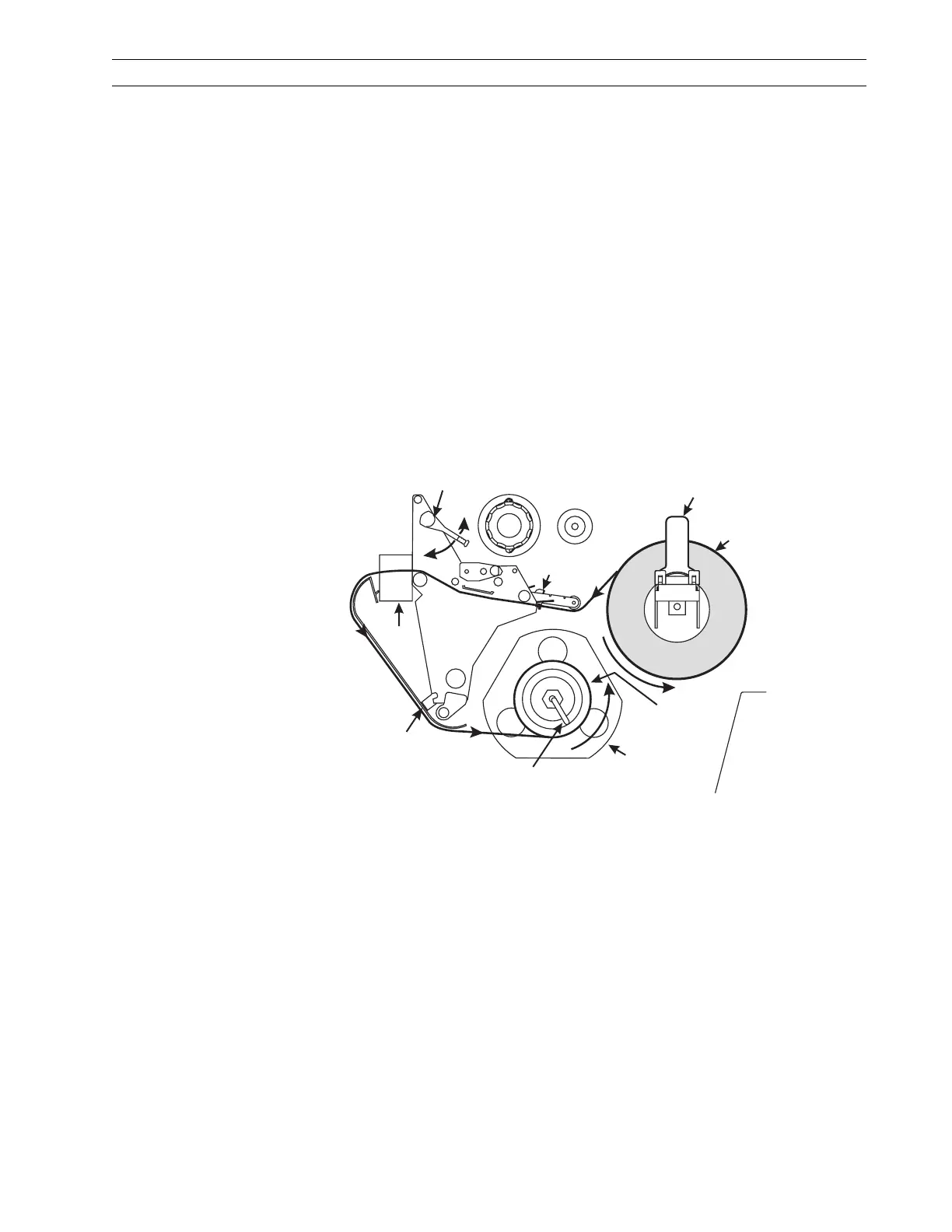

Figure 2-9. Rewind Mode w/Cutter Loading
8. When loading media, allow approximately 36 in. (900 mm) of media to extend past
the printhead.
9. Remove the hook from the rewind spindle. If you are using a core, slide it onto the
rewind spindle until it is flush against the guide plate.
10. Wind the label liner around either the 3 in. (76 mm) core or the rewind spindle, and
reinstall the hook.
11. Flip up the media supply guide. Slide in the media guide and media supply guide so
they just touch, but do not restrict, the edge of the roll.
Before closing the printhead, ensure that:
• The media is positioned against the inside guides.
• The media is taut and parallel with itself and the pathway when wound onto the
rewind spindle/core.
12. Close the printhead.
Media
Guide
Media
Media
Supply
Guide
Closed
Open
Rewind
Spindle
Hook
Printhead Lever
Rewind
Plate
Cutter
Guide
Plate
Side
Plate
