RRP No. 4: Remove and Install the Main Logic Board
Remove the Main Logic Board
1. Refer to RRP No. 1 on page 4-14. Turn the printer Off (O) and disconnect the AC
power cord. Disconnect the data cables.
2. Refer to RRP No. 2 on page 4-16 and remove the electronics cover.
3. Refer to Figure 4-9. Remove the memory or font card from the card slot at the rear
of the printer by removing the shield and pressing the card-eject button.

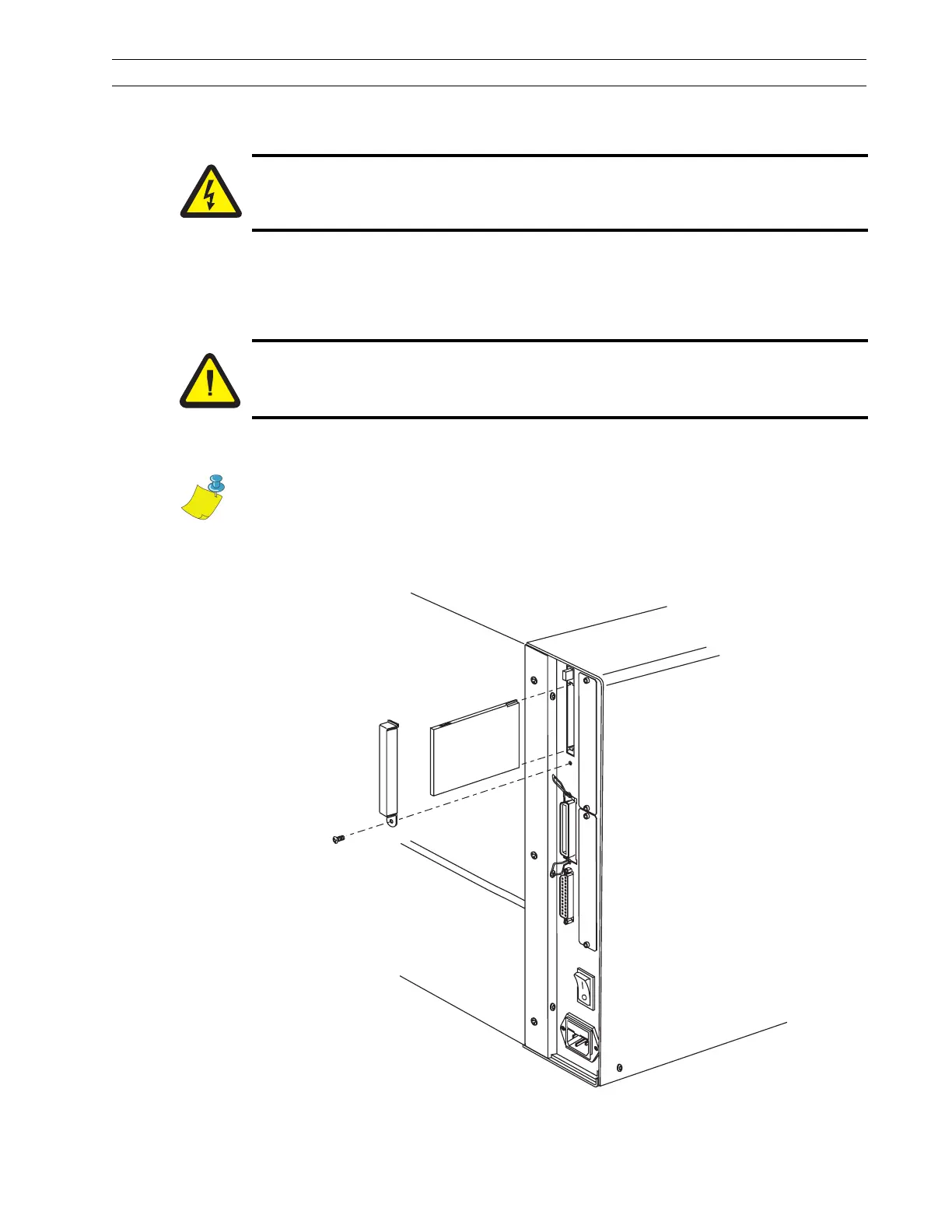

Figure 4-9. Memory or Font Optional Board
Caution:
Unless indicated otherwise, turn the printer Off (O) and disconnect the printer
from the power source before performing the following maintenance.
Caution:
This installation must be performed by a qualified service technician.
Note • Retain all attaching hardware to use during reassembly.
