13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 2-19
Operations Overview Section 2
Adjust Upper Media Sensor
Refer to Figure 2-15. (For clarity, not all printer parts are shown.)
1. Remove the ribbon (if it is installed).
2. Locate the upper media sensor. The upper media sensor “eye” is directly below the
adjustment screw head.
3. Slightly loosen the upper media sensor adjustment screw, one half to one full turn
maximum.
4. Using the tip of the screwdriver, slide the upper sensor along the slot to the desired
position.
5. Secure the upper media sensor by tightening the screw.
Adjust Lower Media Sensor

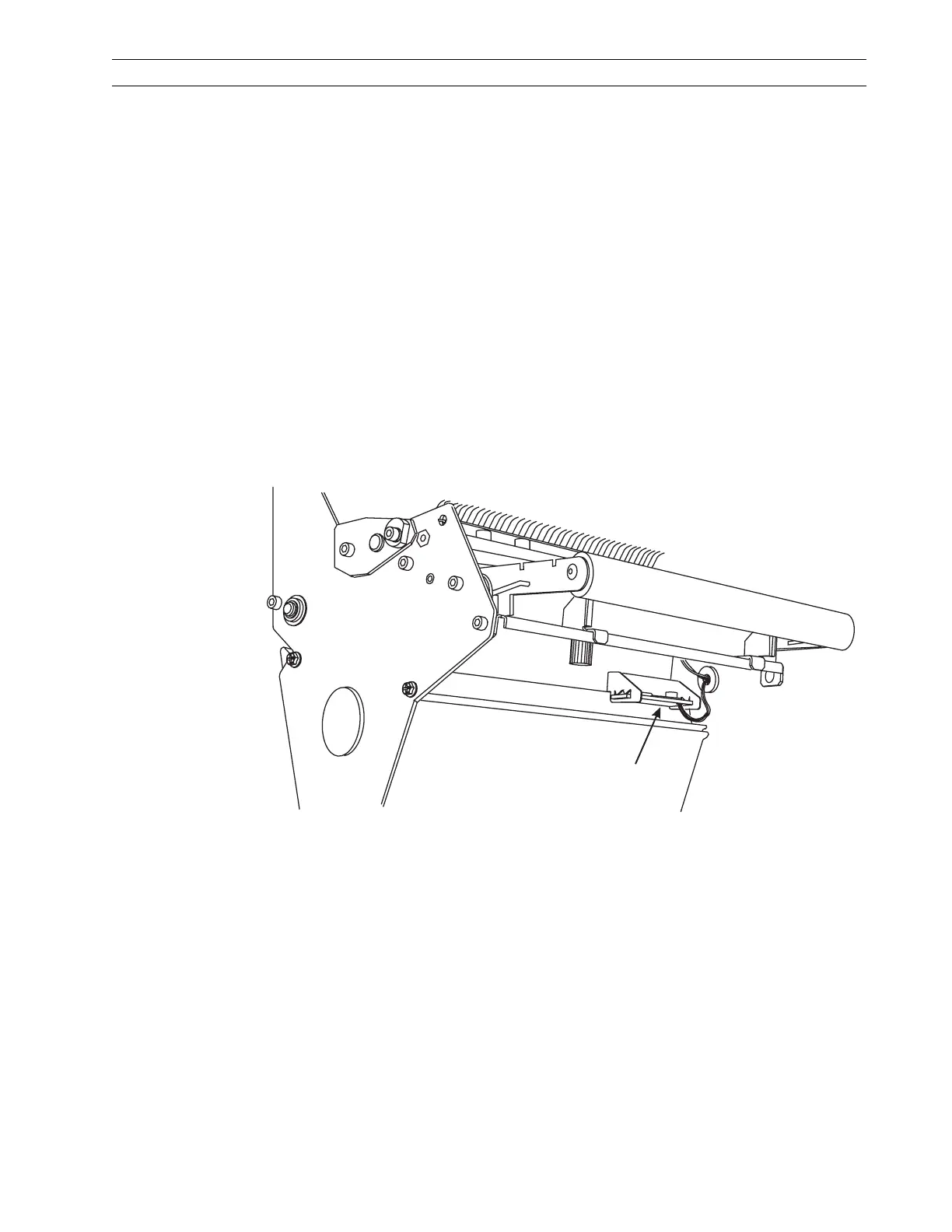

Refer to Figure 2-16 and position the lower media sensor by sliding it in its slot until it is
positioned under the upper media sensor.
Figure 2-16. Lower Media Sensor
Black Mark Sensor
The black mark sensor is in a fixed position and enabled via the front panel (details in
Configuring the Printer in the Users Guide).
Lower Media
Sensor
