Page 1-8 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 1 System Description
Electrical Requirements
• Auto-ranging 90–264 VAC; 48–62 Hz
• 5 Amps for entire AC voltage range
• 25 Watts standby power consumption
• 200 Watts maximum power consumption for 110XiIIIPlus-Series
(printing 100% black at 6 ips)
• Bi-National UL 60950 3rd edition; Certified to CAN/CSA-C22.2 No. 60950-00
Third edition; IEC 950/EN60950:1992 with amendments 1 through 4 (CB
Scheme); EN55022: 1998 Class B; EN55024: 1998; EN61000-3-2, 3 with
amendment A12; Canadian ICES-003, Class B; Argentina 92/98 Phase 3;
Australia AS/NZS 3548; R.O.C. CNS 13438
• CISPR22B-FCC and Canadian DOC class A-Compliant
• CE-mark compliant
Power Cord Specifications
• The overall length must be less than 9.8′ (3.0 m).
• It must be rated for at least 5 A, 250 V.
•Refer to Figure 1-2. The chassis ground (earth) must be connected to ensure safety
and reduce electromagnetic interference. The ground connection is handled by the
third wire (earth) in the power cord.
• The AC power plug and IEC 320 connector must bear the certification mark of at
least one of the international safety organizations shown in Figure 1-3.

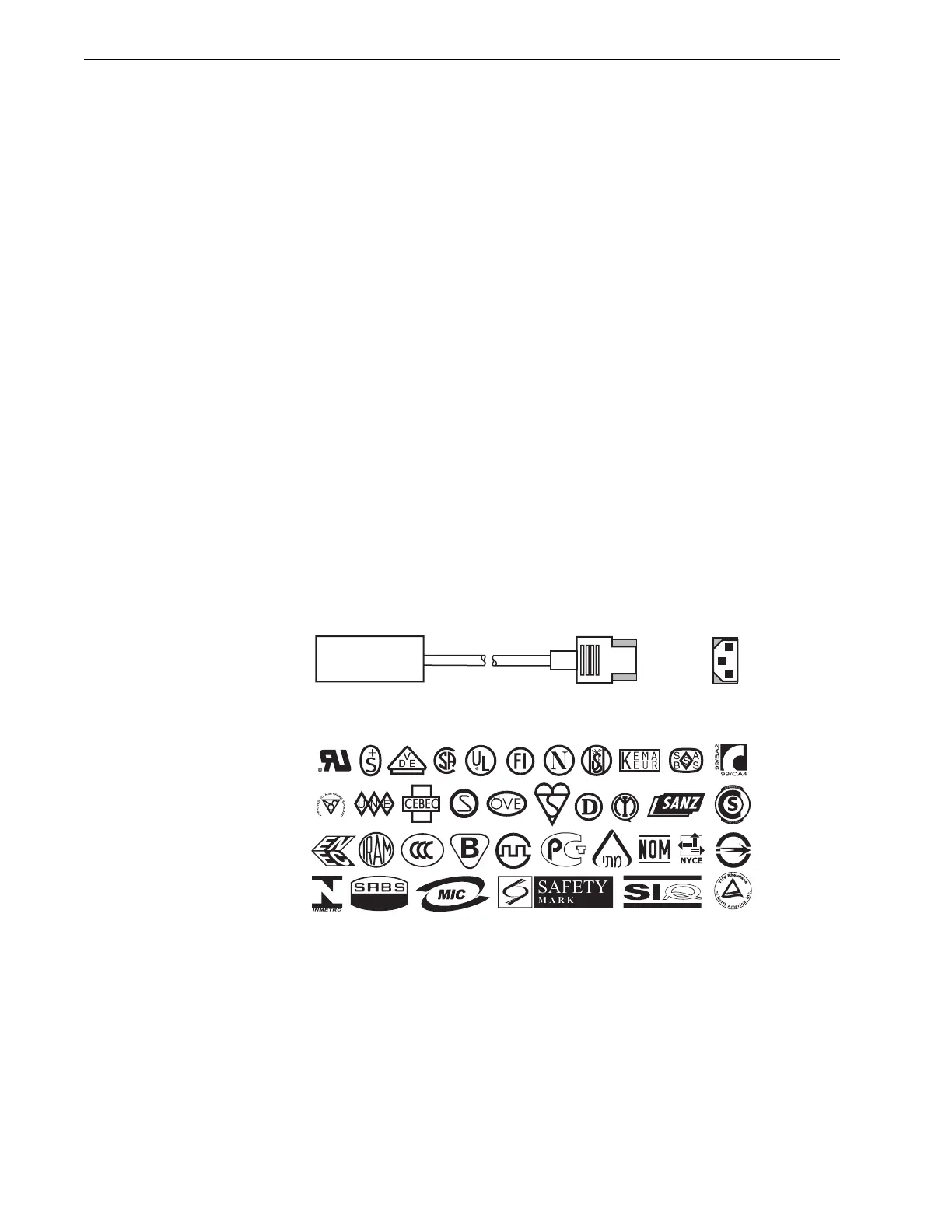

Figure 1-2. AC Power Cord
Figure 1-3. International Safety Organizations Symbols
AC power
plug for
your country
3-conductor
<HAR> cable
IEC 320
connector
Contact
view
Neutral
Live
Earth
