Install the Cutter Motor
1. Refer to Figure 4-76. Open the media access door. Remove the cutter assembly
cover plate.
2. Remove the cutter motor cover plate.

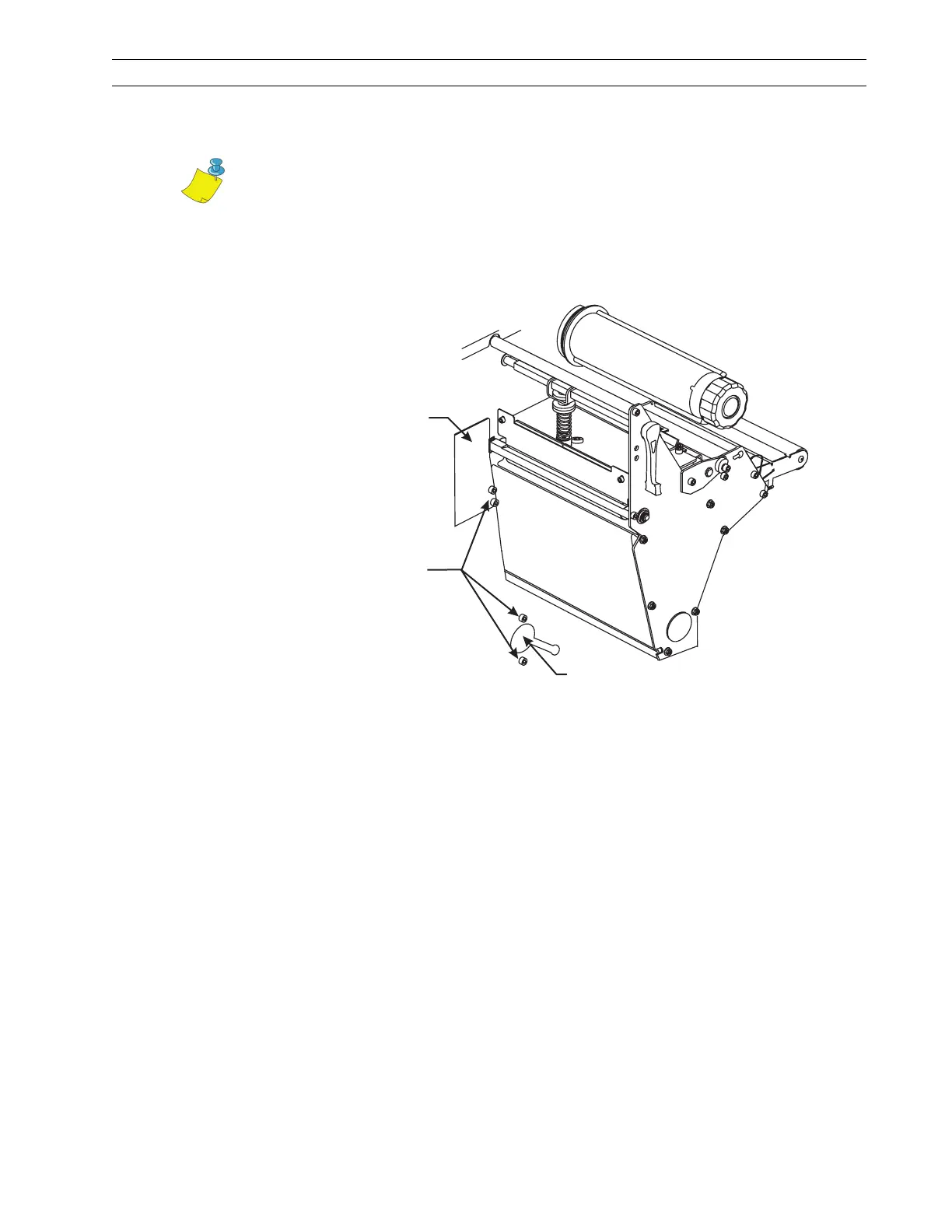

Figure 4-76. Cover Plate Locations
3. Refer to Figure 4-77. Pass the cutter motor leads through the slit in the rubber
grommet (10). Insert the grommet into the slot located in the lower right area of the
motor mounting hole and slide it into the small hole. The electrical connector must
be on the electronics side of the printer. Rotate the grommet so the cut is facing
away from the motor.
4. With the motor shaft going through the main frame install the cutter motor in the
main frame align the holes in the motor with the mounting holes in the main frame.
5. Secure the motor to the main frame using the two motor mounting screws (12).
Note • The cover plates and cover plate mounting screws are not reused.
Cover Plate
Screws
Cutter Assembly
Cover Plate
Cutter Motor
Cover Plate
