Page 4-88 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 4 Maintenance

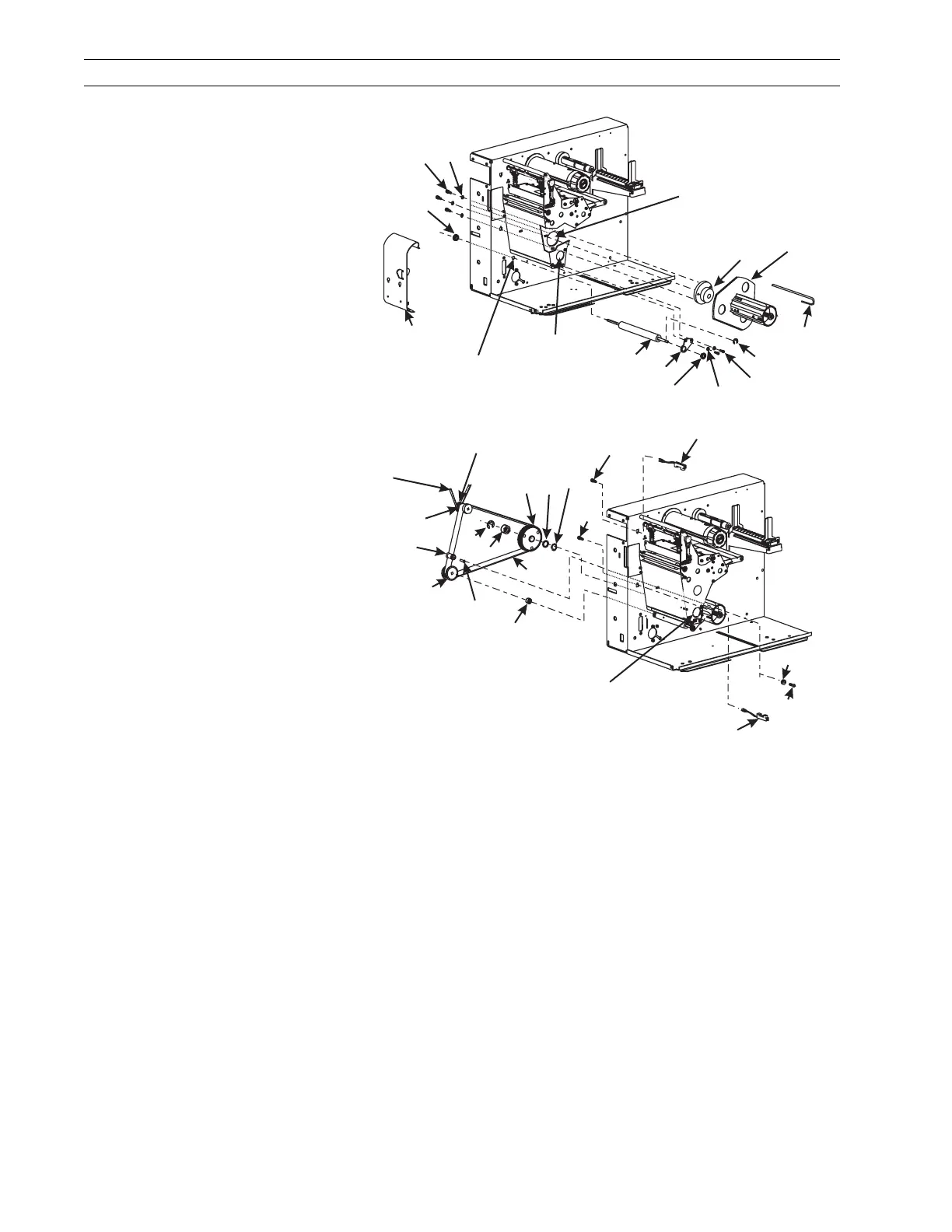

Figure 4-60. Rewind Assembly Installation
Parts List
Table 4-2 lists the parts found in the Media Rewind Option Kits. The last four columns
indicate which parts are used in the particular kit for the different printers. Use Table 4-2
and Figure 4-60 to conduct an inventory of the parts before installing the kit. The parts
received depend on the kit ordered for a particular printer. Labels on the parts packaged in
the kits may not show the M reorder designation shown on some of the part numbers in
Table 4-2.
Lower Access Hole
Rewind Spindle
Mounting Hole
1
2
3
5
6
Rewind Platen
Mounting Hole
10
11
7
2
8
9
3
4
Main Drive
Belt
Stepper Motor
Pulley
Note • Spacer must be
positioned between
rewind drive belt and
main drive belt.
Spacer
Lower Access Hole
17
12
13
14
15
16
20
21
19
19
18
18
8
2
22
23
To Next Page
