13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 4-131
Maintenance Section 4
RFID Antenna Module Assembly
Remove the Antenna Module Assembly
1. Refer to RRP No. 1 on page 4-14. Turn the printer Off (O) and remove the power
cord. Disconnect the printer communications cable.
2. Open the media door, unlatch the printhead lever, and remove media and ribbon
from the printer.
3. Refer to RRP No. 2 on page 4-16 and remove the electronics cover.
4. Refer to Figure 4-91. Remove the three printhead support access panel screws and
remove the panel.

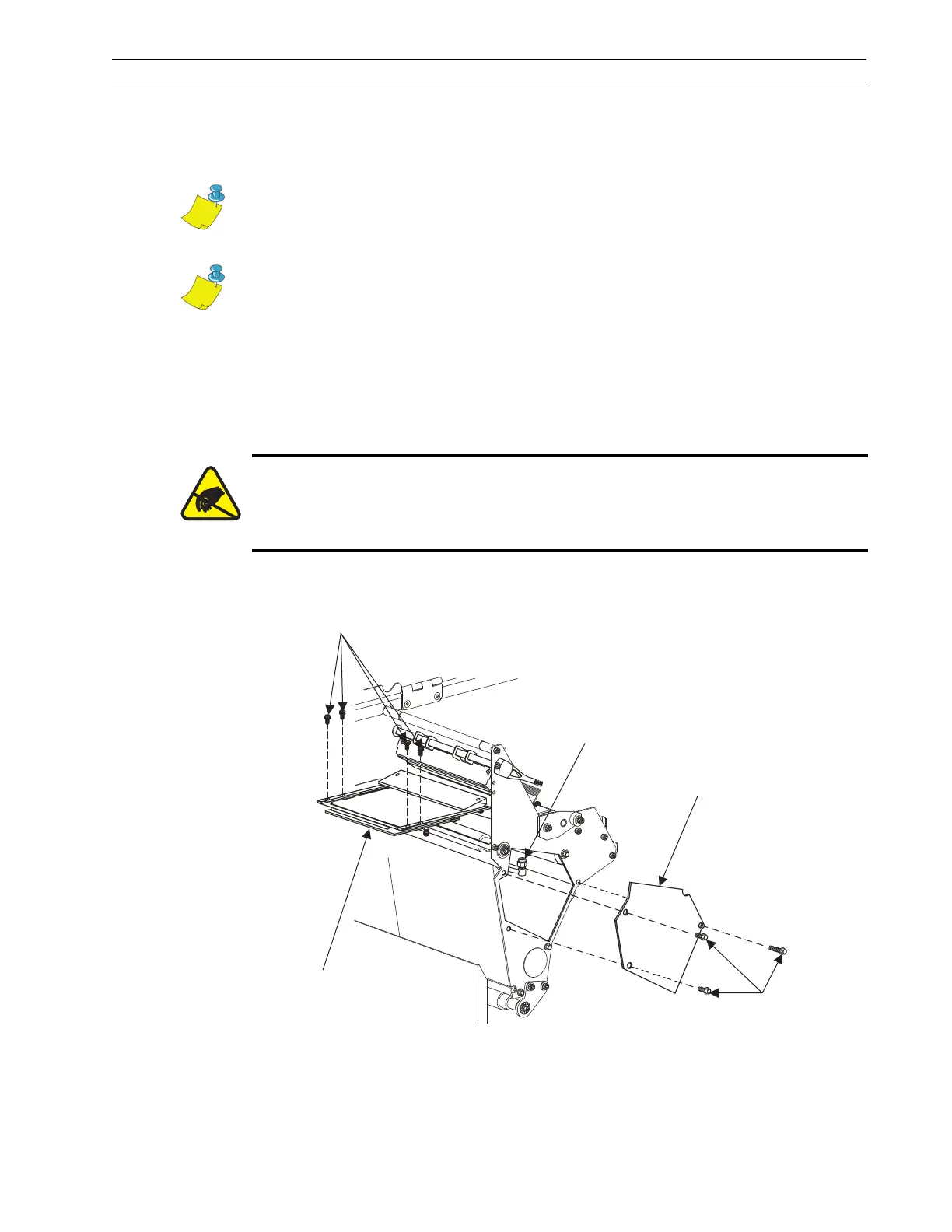

Figure 4-91. Remove/Install the Antenna Carrier Assembly
5. Disconnect the cable from the antenna carrier assembly.
Note • RFID kits are available for Zebra Authorized Service Providers only.
Note • Retain all parts removed during disassembly, unless otherwise directed.
Caution:
The printer electronics are susceptible to static discharge. Before proceeding, it
is highly recommended that the technician wear an antistatic wrist strap
connected to the printer chassis.
Antenna Carrier
Mounting Screws (4)
Antenna
Carrier
Assembly
Antenna Carrier
Assembly Cable
Printhead Support
Access Panel
Printhead Support
Access Panel
Mounting Screws (3)
To Next Page
