Page 5-20 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 5 Maintenance and Assembly Drawings
Table 5-8. Optional Media Supply Spindle

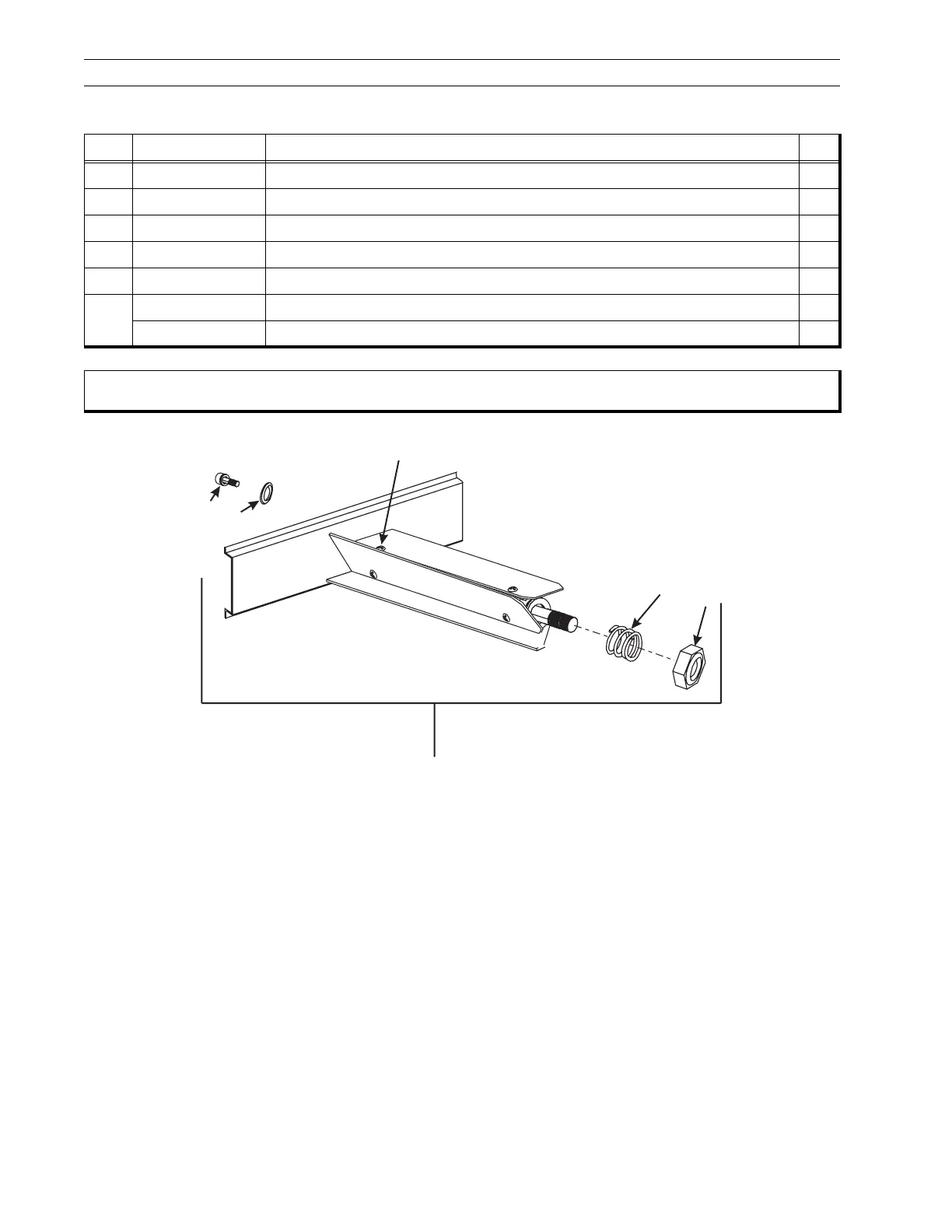

Figure 5-8. Optional Media Supply Spindle
Item Part Number Description Qty
1 HW30140 Screw, 6–32 × 0.125 (only available in quantities of 25) 6
2 46068 Compression Spring 1
3 HW46397-625 Locking Nut, 5/8 × 18 1
4 HW30466 Washer, 0.26 × 0.63 × 0.06 (only available in quantities of 10) 1
5 30395-012 Screw, 1/4–20 × 0.75 1
6
48253M Media Supply Spindle 3–inch Spindle Complete Maintenance Kit 1
48044M 40 mm Spindle Complete Maintenance Kit 1
Bold=Part available for purchase
Italic=
Part not available for purchase, listed and shown for reference only
5
3
2
1
4
6
