Chapter 5 Connect the Kinetix 5700 Drive System
Wire Motor Power and Brake
Connectors
Motor power connections are made at the MP connector on the bottom of the
dual-axis and single-axis inverters. Motor brake connections are made at the
BC connector. On dual-axis inverters, the BC connectors are on either side of
the MP connectors on the bottom of the drive. On single-axis inverters, the
BC connector is on the front of the drive.
• On 2198-S086-ERSx, 2198-S130-ERSx, and 2198-S160-ERSx single-
axis inverters, the motor power connector and shield clamp are mounted
to a separate bracket that plugs into the bottom of the drive and has
mounting screws to hold it secure.
• On 2198-S263-ERSx and 2198-S312-ERSx single-axis inverters, the
motor power connector is part of the drive. The clamp bracket is
included with the drive, but requires some assembly.
IMPORTANT The clamp included with 2198-S263-ERSx and 2198-S312-ERSx inverters is
compatible with Bulletin 2090 (4 and 2 AWG) motor power cable. Do not use
the clamp for smaller or larger cables.

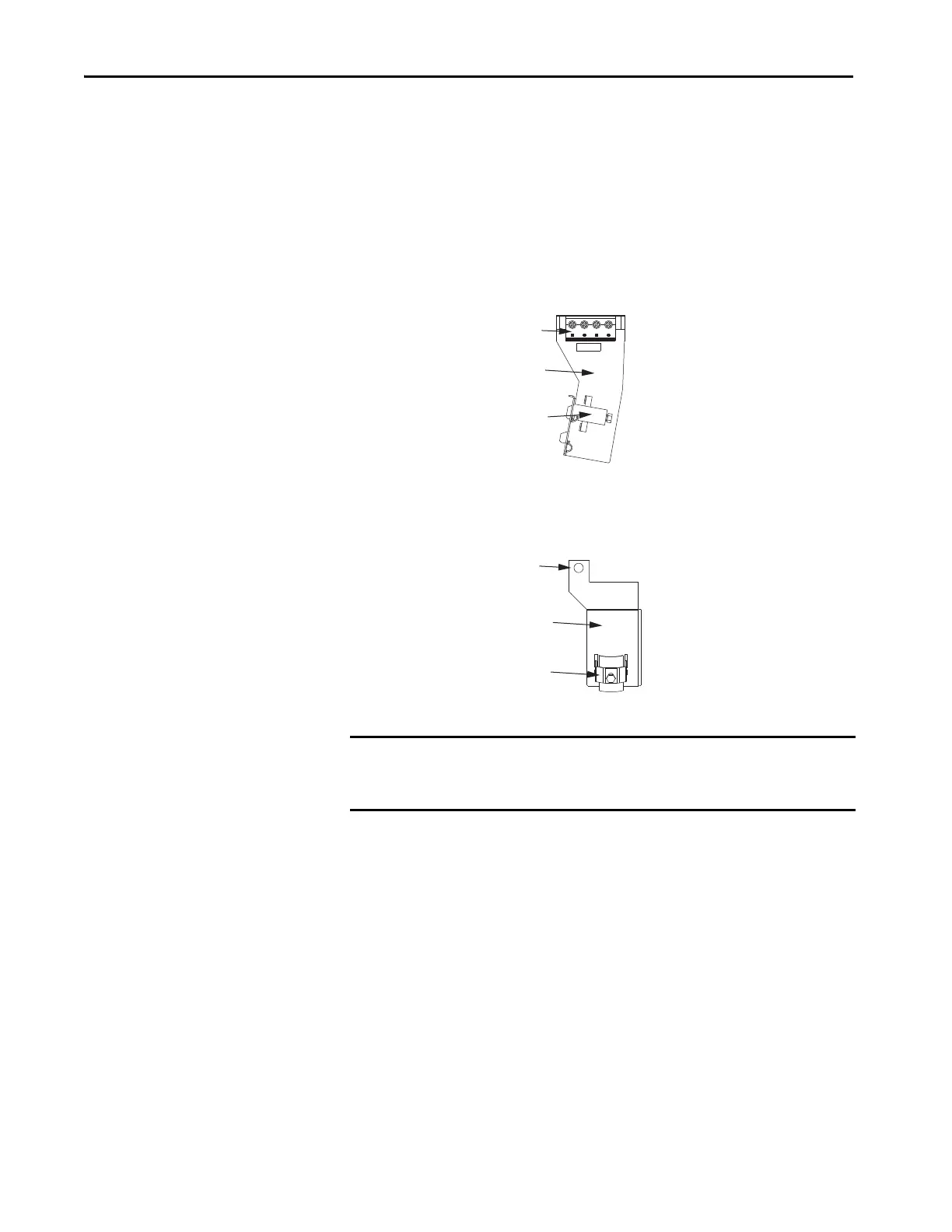

Motor Power Connector
Bracket
(side view)
Clamp
2198-S086-ERSx,
2198-S130-ERSx, and
2198-S160-ERSx
Single-axis Inverter Clamp Bracket
Bracket
(front view)
Clamp
Hole for M8 Stud
2198-S263-ERSx and
2198-S312-ERSx
Single-axis Inverter Clamp Bracket
To Next Page
