Chapter 6 Configure and Start the Kinetix 5700 Drive System

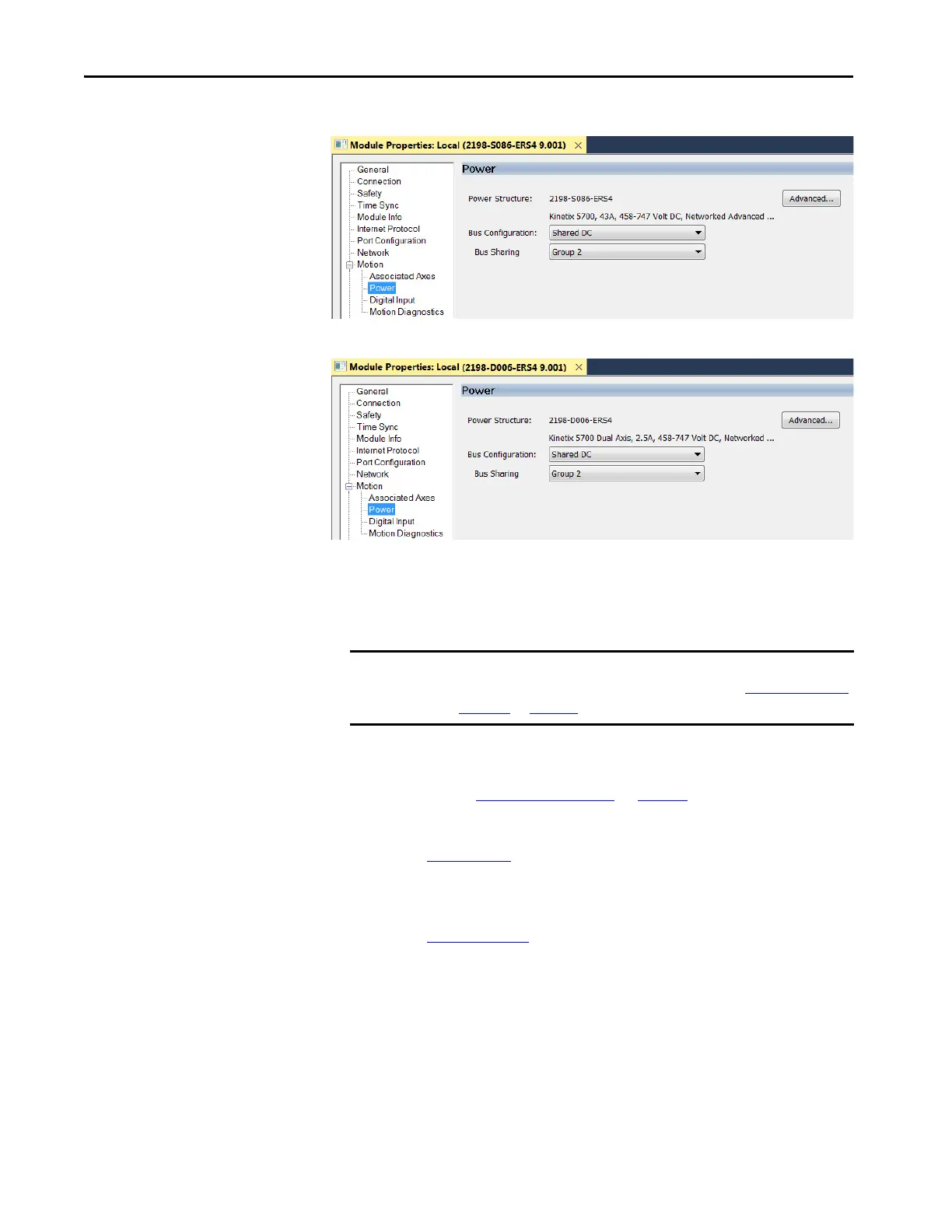

Figure 135 - Group 2 Single-axis Inverter Configuration
Figure 136 - Group 2 Dual-axis Inverter Configuration
Test and Tune the Axes
This procedure assumes that you have configured your Kinetix 5700 drive,
your Logix 5000 controller, and applied power to the system.
For help using the Logix Designer application as it applies to testing and tuning
your axes with ControlLogix EtherNet/IP modules or CompactLogix 5370
controllers, refer to Additional Resources
on page 13.
Also, see Motor Nameplate Datasheet Entry for Custom Motor Applications,
publication 2198-AT002
, for detailed information on testing and tuning
custom motors.
For testing and tuning iTRAK movers, see the iTRAK System User Manual,
publication 2198T-UM001
.
IMPORTANT Before proceeding with testing and tuning your axes, verify that the MOD
and NET status indicators are operating as described in Kinetix 5700 Status
Indicators on page 278.
To Next Page
