Allen-Bradley Kinetix 5700 Series User Manual

Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 181
Connect the Kinetix 5700 Drive System Chapter 5
Accessory Module
Connections
Follow these guidelines when wiring the 2198-CAPMOD-2240 capacitor
module, 2198-CAPMOD-DCBUS-IO extension module, and
2198-DCBUSCOND-RP312 DC-bus conditioner module:
• Wire module status (MS) output connections to digital input Bus
Capacitor OK, Bus Conditioner OK, or the Logix 5000™ controller
(optional).
• Flexible bus-bars (included with 2198-CAPMOD-DCBUS-IO
extension modules) are required whenever two accessory modules are
mounted side-by-side in 208 A systems. If your system does not include
the extension module, order the 2198-KITCON-DCBUSCOND or
2198-KITCON-CAPMOD2240 replacement kit.
•Refer to DC-bus Power Supply with Capacitor Module
wiring example
on page 345
.
•Refer to Regenerative Bus Supply with
DC-bus Conditioner Module
wiring example on page 349
.
•Refer to Kinetix 5700 Accessory Module Status Indicators
on page 279
for troubleshooting the module status indicators and relay output.

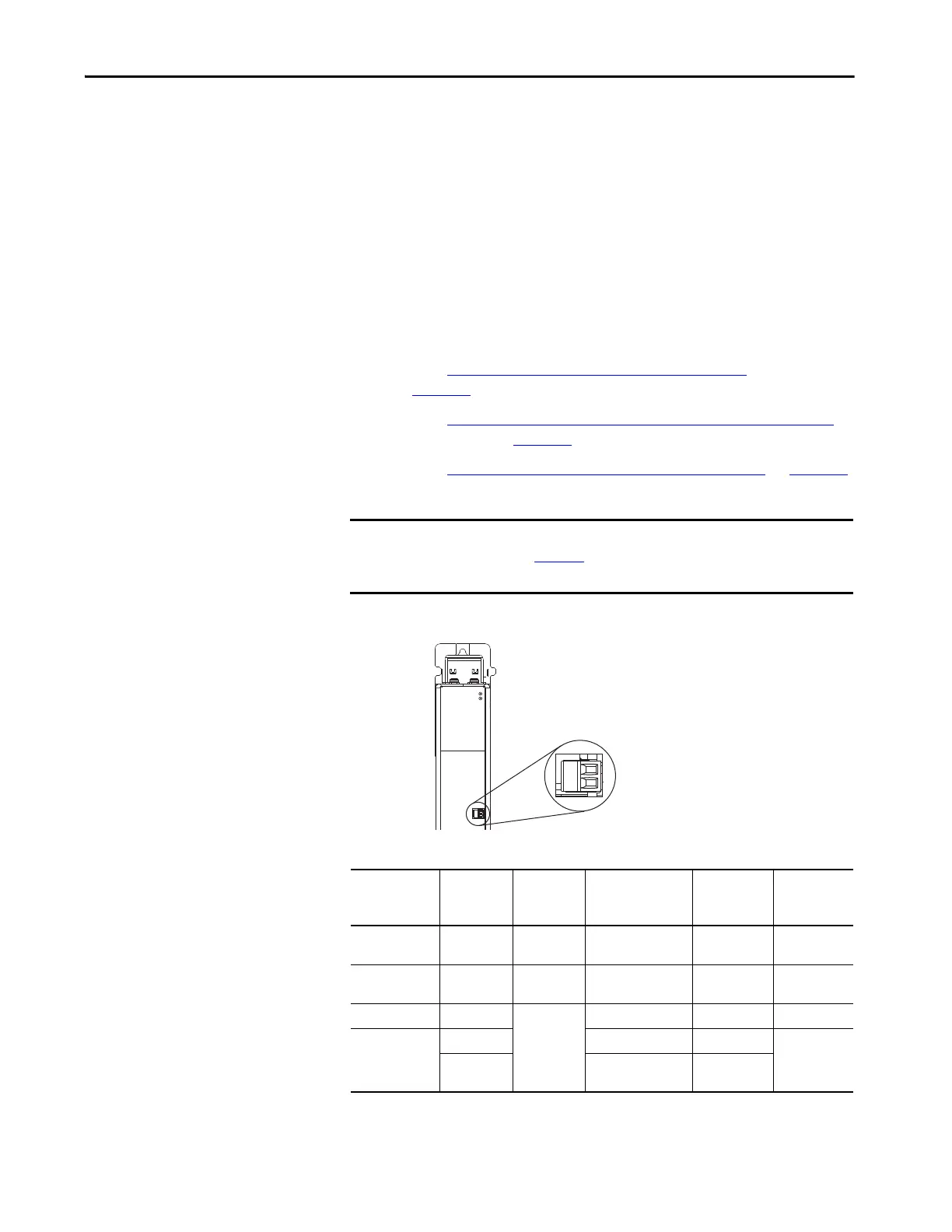

Figure 122 - MS Connector Wiring (capacitor module and DC-bus conditioner module)
Table 98 - Accessory Module Connector Specifications
IMPORTANT To improve system performance, run wires and cables in the wireways as
established in Chapter
2. Connections to the DC bus must be made with the
shared-bus connection system.
MODULE
STATUS
MOD
DC BUS
2
1
Module Status
(MS) Connector Plug
2198-CAPMOD-2240 Capacitor Module or
2198-DCBUSCOND-RP312 DC-bus Conditioner Module
Connector
Description
Pin Signal
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
Module Status
MS-1
MS-2
MS
MS
0.14…1.5
(28…16)
7.0 (0.28)
0.22…0.25
(1.9…2.2)
PELV/SELV
24V power (plug)
CP-1
CP-2
24V+
24V-
0.5…4
(20…12)
7.0 (0.28)
0.22…0.25
(1.9…2.2)
DC-bus power Bus-bar
DC-
DC+
N/A
(1)
N/A
(1)
(1) DC bus connections are always made from one drive module to another over the shared-bus connection system. These terminals
do not receive discrete wires.
N/A
(1)
DC-bus studs
Bus-bar N/A N/A
18 (156)
Lugs
53.5 (1/0 AWG) 104 A
152 (300 kcmil) 208 A
N/A
(2)
(2) Strip length for the DC-bus studs depend on the customer-supplied lugs.
