Chapter 7 Troubleshoot the Kinetix 5700 Drive System
DC-bus Power Supply Behavior
Stopping action for exception fault codes does not apply to the DC-bus power
supply. The StopDrive exception action for a DC-bus power supply means the
power supply enters into a Major Fault state that opens the contactor-enable
output, removing three-phase power from the Kinetix 5700 drive system. The
Shutdown exception action exhibits the same behavior as Stop Drive, except
the power supply enters into Shutdown as the final state and requires a
Shutdown Reset to recover.
Fault actions are shown in Table 133
and Table 134.

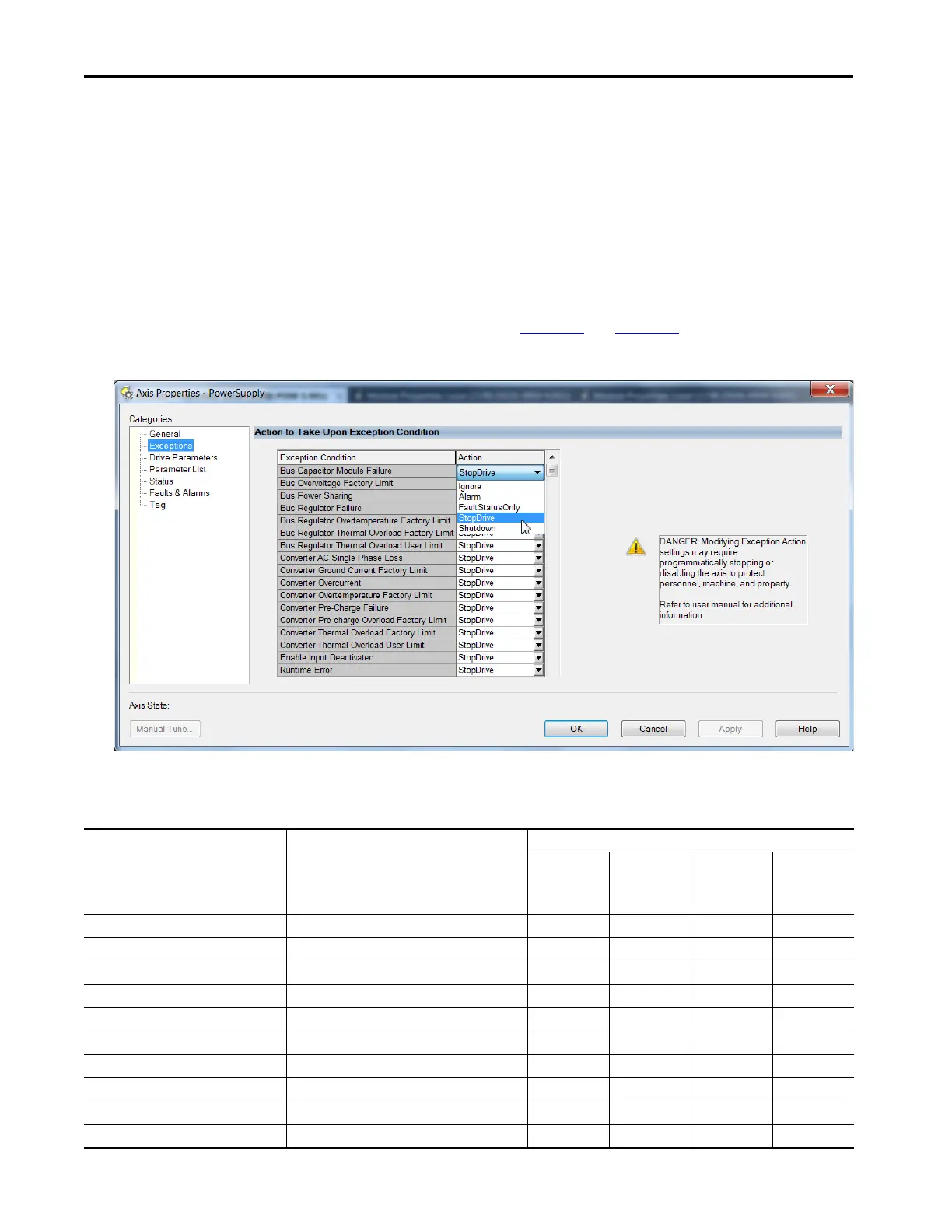

Figure 137 - Logix Designer Axis Properties - Exceptions Category
Table 133 - DC-bus Power Supply Behavior, FLT Sxx Fault Codes
Exception Fault Code Exception Text
Fault Action
Ignore Alarm Minor Fault Major Fault
FLT S15 – CONV OVERCURRENT Converter Overcurrent Fault –––X
FLT S16 – GROUND CURRENT Ground Current Factory Limit Fault –––X
FLT S18 – CONV OVERTEMP FL Converter OverTemp Factory Limit Fault –––X
FLT S20 – CONV OVERLOAD FL Converter Thermal OverLoad Factory Limit Fault–––X
FLT S21 – CONV OVERLOAD UL Converter Thermal Overload User Limit FaultXXXX
FLT S23 – AC PHASE LOSS AC Single Phase Loss Fault –––X
FLT S25 – PRECHARGE FAILURE Precharge Failure Fault –––X
FLT S27 – BUS REG OVERTEMP FL
(1)
Bus Regulator Overtemperature Factory Limit Fault–––X
FLT S29 – BUS REG OVERLOAD FL Bus Regulator Thermal OverLoad Factory Limit Fault–––X
FLT S30 – BUS REG OVERLOAD ULBus Regulator Thermal Overload User Limit FaultXXXX
