164 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019
Chapter 5 Connect the Kinetix 5700 Drive System
Table 86 - Legacy Motor Power Cables
Table 87 - Induction Motor Power Cable Specifications
Motor Power/Brake Cable Series Change
Motor power and brake conductors on 2090-CPBM7DF (series A) cables have
the following dimensions from the factory. If your cable is reused from an
existing application, the actual conductor lengths could be slightly different.

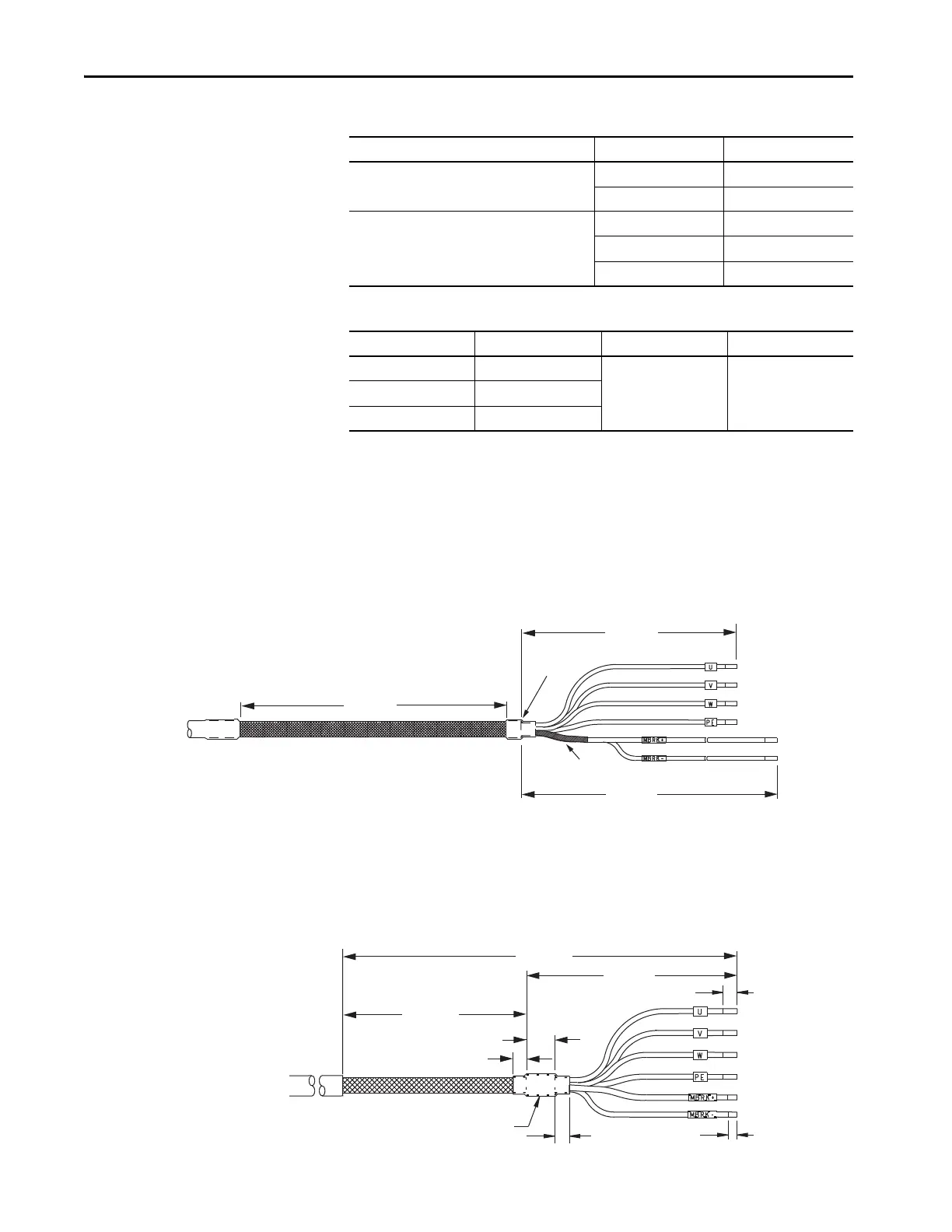

Figure 108 - 2090-CPBM7DF (series A) Power/brake Cable Dimensions
Motor power and brake conductors on 2090-CPBM7DF (series B) 12 and 10
AWG standard, non-flex cables provide (drive end) shield braid and conductor
preparation designed for compatibility with multiple Kinetix servo-drive
families, including Kinetix 5700 drives.
Figure 109 - 2090-CPBM7DF (series B, 10 or 12 AWG) Power/brake Cable Dimensions
Motor Cable Description Cat. No.
Standard
Power/brake, threaded 2090-XXNPMF-xxSxx
Power-only, bayonet 2090-XXNPMP-xxSxx
Continuous-flex
Power/brake, threaded 2090-CPBM4DF-xxAFxx
Power-only, threaded 2090-CPWM4DF-xxAFxx
Power-only, bayonet 2090-XXTPMP-xxSxx
Cable Manufacturer Cable Series Voltage Rating Temperature Rating
Belden 29500-29507
600V 90 °C (194 °F)Lapp Group ÖLFEX VFD XL
SAB VFD XLPE TR
635 (25)
102 (4.0)
150 (5.9)
Dimensions are in mm (in.)
Power Conductors
Brake
Conductors
MP-Seriesâ„¢ Motors
and Actuators
Brake Shield (remove)
Edge of
Cable Jacket
Overall Cable Shield
305 (12.0)
71 (2.80)
12.7 (0.50)
5.0 (0.20)
5.0 (0.20)
234 (9.20)
15.0 (0.59)
8.0 (0.31)
Dimensions are in mm (in.)
Power Conductors
Brake
Conductors
MP-Series Motors
and Actuators
Heat Shrink
Overall Cable Shield
