Chapter 6 Configure and Start the Kinetix 5700 Drive System
Configure the Logix 5000
Controller
These procedures assume that you have wired your Kinetix 5700 drive system.
In this example, the GuardLogix® 5580 safety controller and Compact
GuardLogix 5380 controller dialog boxes are shown.
Follow these steps to configure the controller.
1. Apply power to your controller and open your Logix Designer
application.

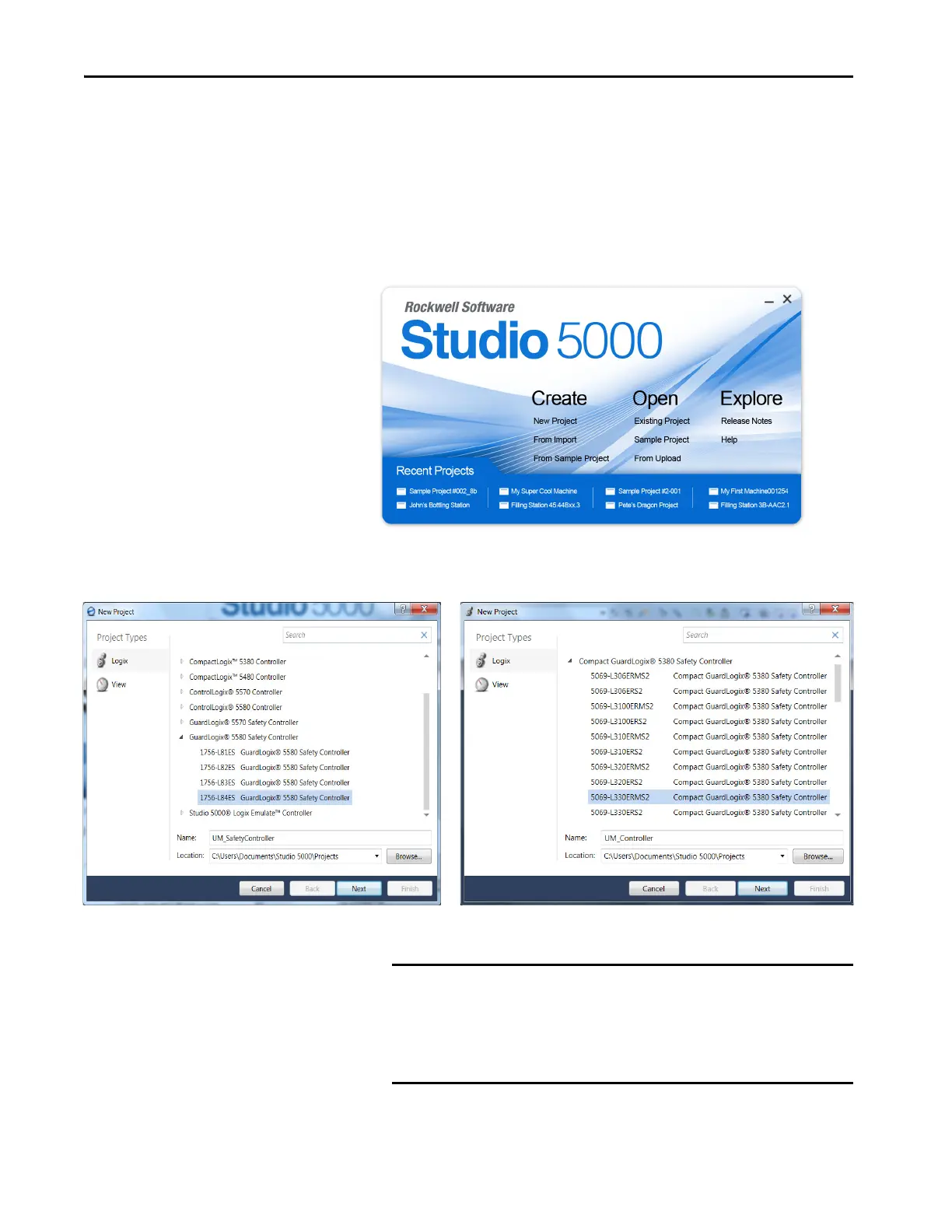

2. From the Create menu, choose New Project.
The New Project dialog box appears.
IMPORTANT If you are configuring a safety application, you must use a
GuardLogix or Compact GuardLogix safety controller.
If you are configuring a 2198-xxxx-ERS4 inverter in a safety
application, you must use a GuardLogix 5580 or Compact
GuardLogix 5380 safety controller.
