Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 239

Configure and Start the Kinetix 5700 Drive System Chapter 6

Fan/Pump Volts/Hertz Method

1. Configure the General category and Motor category as shown in

General and Motor Categories

on page 232.

2. Select the Frequency Control category.

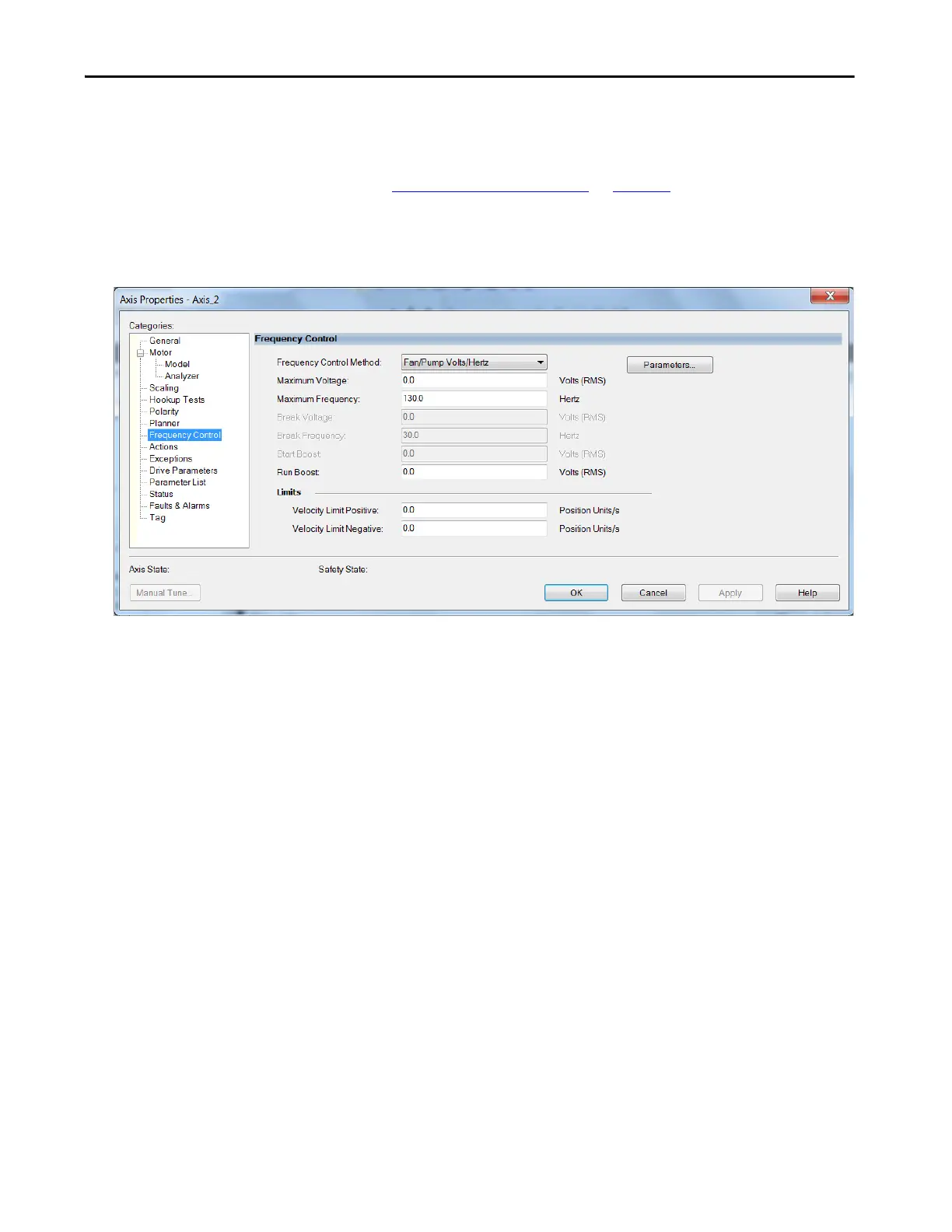

3. From the Frequency Control Method pull-down menu, select Fan/

Pump Volts/Hertz.

4. Enter the Basic Volts/Hertz attribute values appropriate for your

application.

Default values are shown.

5. Click Apply.

6. Select the Parameter List category.

Default Chapter3
