IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-33
3-8-2 Digital Color Printer Sony UP-D25MD
1) Power off/Shutdown the system as described in: Section 3-7-3 on page 3-25.
2) Connect USB cable into the available USB port on the rear of the system. There are three available
USB ports on rear of the system. : Section 3-9-2 "External I/O Connectors"

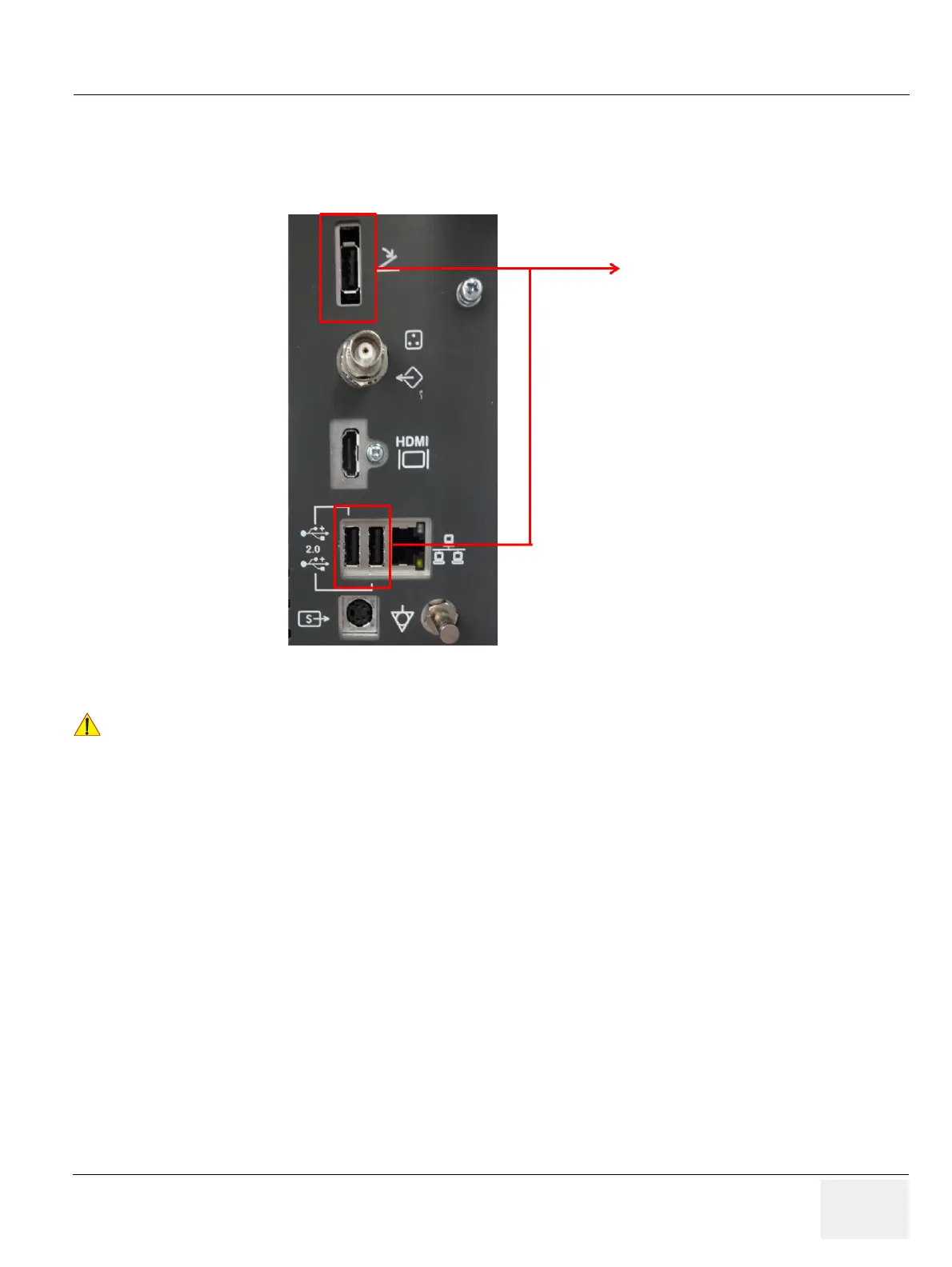

Figure 3-19 External I/O Connectors - on Rear of System
!! NOTICE:
After boot up of the system, verify the correct settings in the printer “Properties”,
see: Section 3-8-4 "Adding Printer to the system" for assigning the Printer to the remote keys P1, P2,
P3, P4, P5 and/or P6, and see: Section 3-8-5 "Adjustment of Printer Settings"
USB Port on the rear of system
