Chapter 8 - Replacement Procedures 8-101
Section 8-17
Replacement around Nest Box
NOTE: This section covers replacement of components related to Nest Box.
: MPI,MCB,MDC,MIO,CWD,DCWD,EEPROM,DC4D,Battery,HDD and SOM
8-17-1 Manpower
1 person, 15 minutes for each part.
8-17-2 Tools
Standard Phillips Screwdriver.
8-17-3 Pre-Work
1) Front cover removed. (refer to section 8-6-3)
2) Rear cover removed. (refer to section 8-9-3)
8-17-4 Nest Box Access
1) Remove Rear Cover. (refer to section 8-9)
2) Remove 2 screws and Power Cord Fix Bracket.

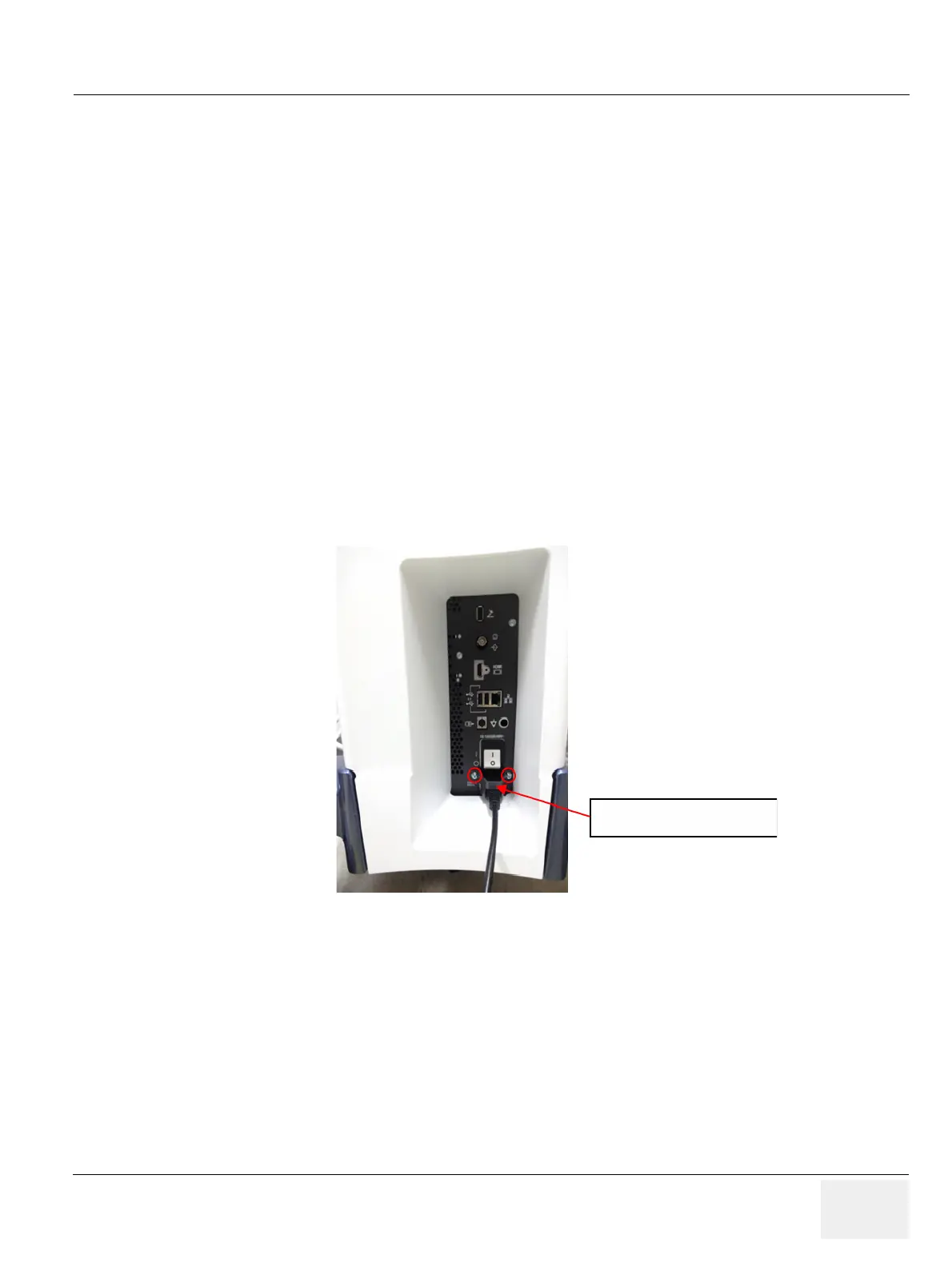

Figure 8-106 Power Cord Fix Bracket.
Power cord Fix Bracket
