GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 8 -
Replacement Pr
ocedures
8-87
4)
Disconnect USB cables as following figure.

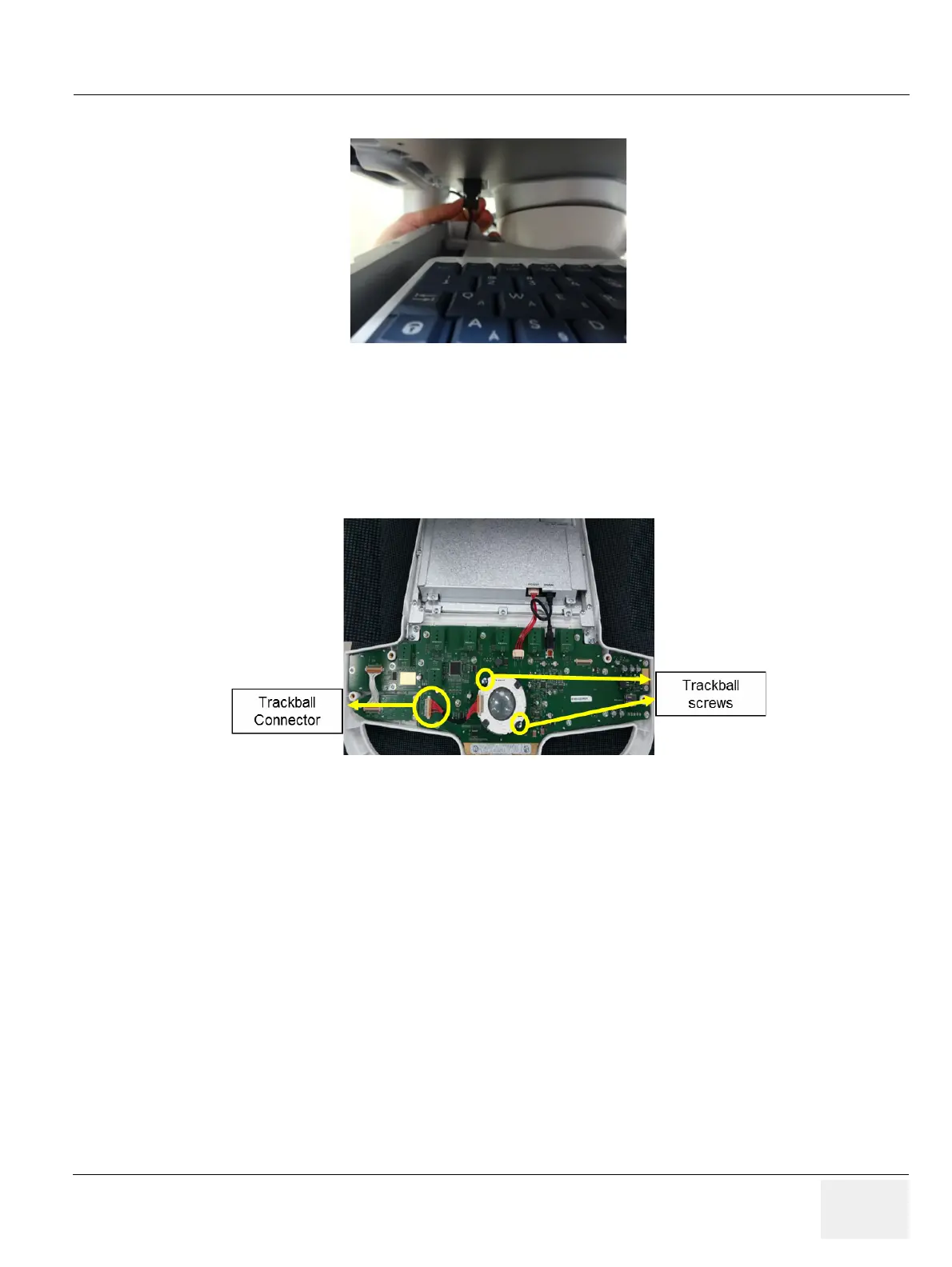

Figure 8-83 Disconnecting USB cable
8-14-3-4
Removal Procedure - T
rackball
1)
Remove a connector from back of the LCD Touch Panel Assy.
2)
Remove 2 screws.
3)
Slowly lift up trac
kball from OP Panel.
Figure 8-84 T
rackball removal
412
414
